Product Introduction

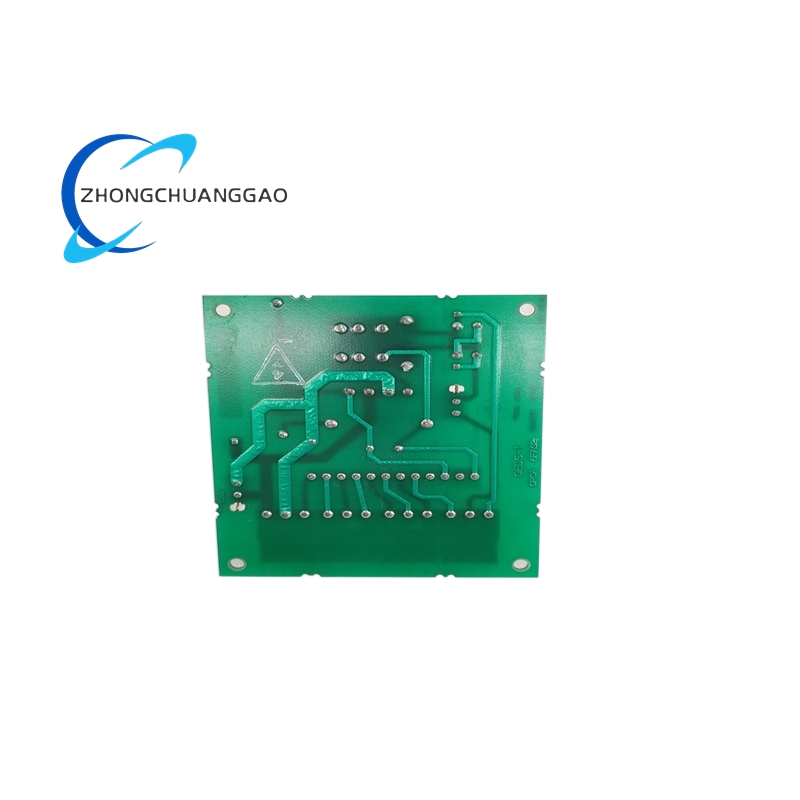

The GE DS200CPCAG1ABB is a dedicated contactor pilot board belonging to the GE Mark V Speedtronic series, serving as a critical interface for controlling and monitoring contactors in industrial drive and turbine control systems. It integrates a 24VDC 15A socket power relay, one 12-pin connector, two 2-pin connectors, and four terminal blocks that can accommodate up to twelve signal wires, facilitating seamless connection between control logic and field contactors. This board acts as a bridge between the Mark V controller and high-power contactors, enabling precise on/off control of contactors while providing a reliable interface for signal transmission. It is specifically designed for use in Mark V systems, ensuring compatibility and reliable performance in demanding industrial environments, with a focus on simplifying contactor control and enhancing system safety through its integrated relay and robust connectivity options.
Description
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | GE (General Electric) Speedtronic/Mark V Series |
| Model | DS200CPCAG1ABB |
| Product Type | Contactor Pilot Board (CPCA) |
| Core Component | 24VDC 15A socket power relay |
| Connectors | 1×12-pin connector, 2×2-pin connectors |
| Terminal Blocks | 4 terminal blocks, max 12 signal wires |
| Rated Voltage | 24 VDC (relay coil); 250 VAC/30 VDC (contact rating) |
| Rated Current | 15 A (relay switching capacity); 10 A at 250 VAC/30 VDC (contact current) |
| Mounting | PCB for Mark V system chassis, compatible with standard Mark V rack installation |
| Dimensions | 4.00 × 3.50 inches (approx. 101.6 mm × 88.9 mm) |
| Weight | Approx. 0.24 lbs (approx. 0.11 kg) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% RH (non-condensing) |
| Core Function | Contactor on/off control, signal interface between controller and field contactors |
| Warranty | Typically 12 months for new/reconditioned units |
| Country of Origin | USA |
Functional Features
- Integrated High-Power Relay: 24VDC 15A socket power relay delivers reliable switching for industrial contactors, supporting heavy-duty loads in drive and turbine systems.
- Multiple Connectivity Options: 12-pin, 2-pin connectors, and 4 terminal blocks enable flexible wiring to Mark V controllers and field contactors, accommodating up to 12 signal wires.
- Direct Controller Interface: Seamlessly integrates with Mark V Speedtronic controllers, ensuring consistent communication and control signal transmission.
- Contact Rating Versatility: 10A capacity at 250 VAC/30 VDC suits a wide range of contactor coil specifications in industrial applications.
- Compact PCB Design: Fits standard Mark V chassis, saving space in control cabinets and simplifying system integration.
- Reliable Signal Transmission: Dedicated terminal blocks and connectors ensure stable signal flow between control logic and contactors, minimizing signal interference.
- Easy Replacement & Maintenance: Socket-mounted relay allows for quick replacement without replacing the entire board, reducing downtime.
- Industrial-Grade Durability: Constructed to withstand extreme temperatures and harsh industrial environments, ensuring long-term operational reliability.
- Plug-and-Play Compatibility: Designed for direct installation in Mark V systems, requiring minimal configuration for immediate use.
- Safety Assurance: Provides a controlled interface to prevent electrical hazards during contactor switching operations.
Application Scenarios
- Gas & Steam Turbine Control: Controls auxiliary contactors in Mark V Speedtronic systems for turbine start-up, shutdown, and load transition processes.
- Heavy-Duty Industrial Drives: Interfaces with contactors in steel mill rolling drives, mining conveyor systems, and marine propulsion drives, ensuring precise load control.
- Power Generation Plants: Manages contactors in generator auxiliary systems, including lubrication pumps, cooling fans, and fuel supply valves, supporting grid-connected power generation.
- Petrochemical Refineries: Controls contactors in pump and compressor drives, enabling safe operation during process fluctuations and emergency shutdowns.
- Industrial Compressor Stations: Regulates contactors for motor-driven compressors in natural gas pipelines and refrigeration systems, maintaining system pressure and flow control.
- Cement & Mining Operations: Manages contactors in crusher and mill drives, ensuring reliable operation in dusty and high-vibration environments.
- Marine & Offshore Power: Controls contactors in shipboard turbine and propulsion systems, withstanding harsh marine conditions for consistent performance.
- Waste-to-Energy Facilities: Operates contactors in turbine and generator control systems, supporting efficient energy conversion from waste materials.
- Mark V System Retrofits: Serves as a replacement part for legacy contactor pilot boards, maintaining system compatibility and performance in existing installations.
