Product Introduction

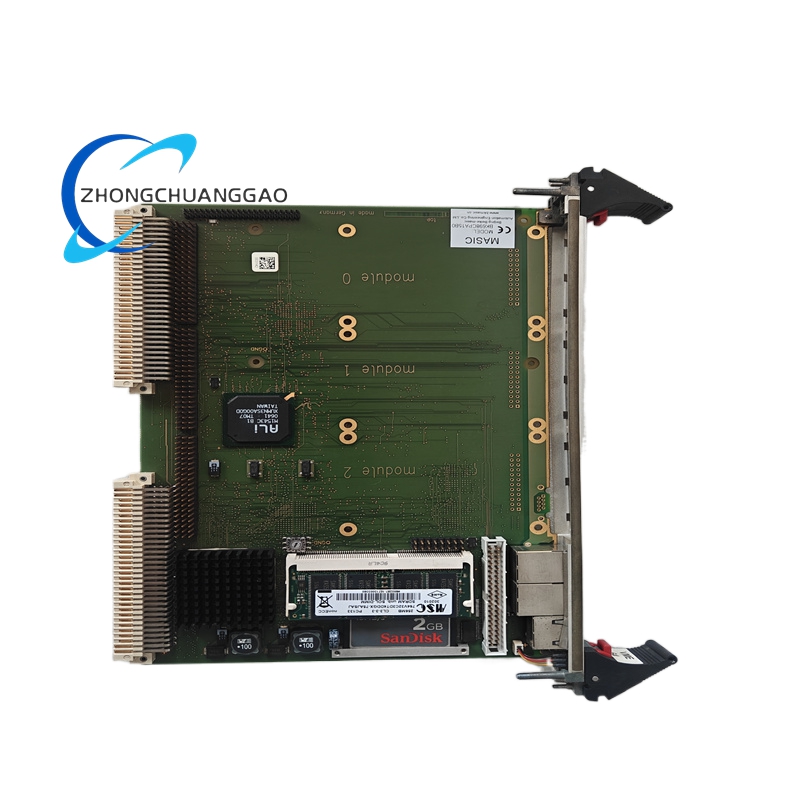

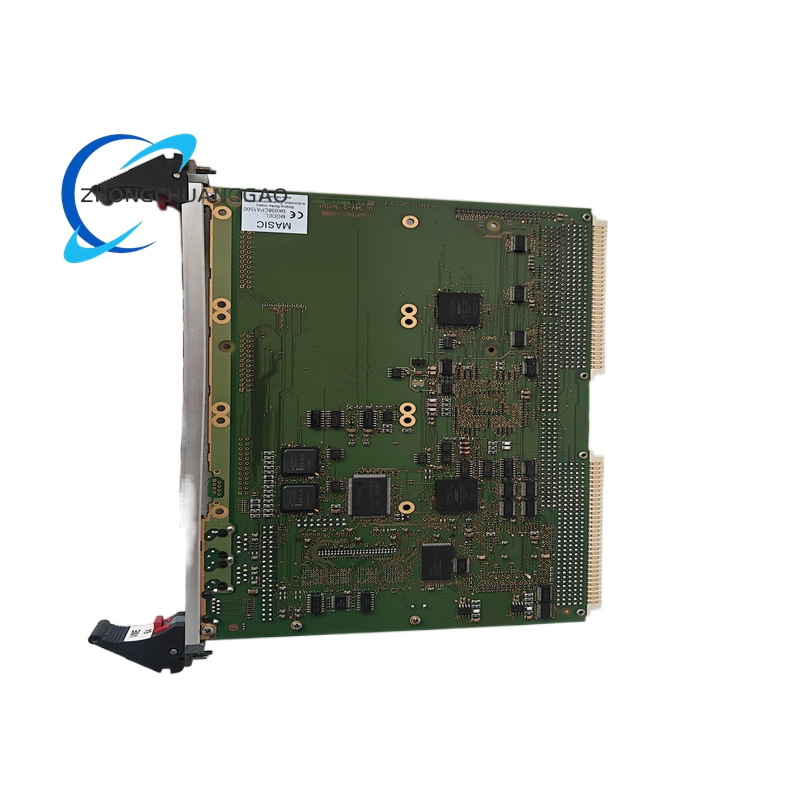

The GE BK698CPA15B0 is a 6U VME64 single-board computer (SBC) powered by an Intel Pentium III processor, engineered for high-performance embedded control, real-time data processing, and industrial automation applications. It integrates robust computing power, multi-protocol communication, and flexible I/O expansion via the VME64 backplane, making it suitable for harsh industrial environments and safety-critical systems. The board supports dual Ethernet, multiple serial ports, and optional SCSI storage, with a rugged design that meets extended temperature and vibration standards. It operates as a VMEbus master/slave, enabling seamless integration with VME-based I/O modules, and runs real-time operating systems (RTOS) such as VxWorks, QNX, and Linux for deterministic control in industrial automation, power generation, and aerospace applications.
Description
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | GE (originally VMIC/Abaco Systems, integrated into GE’s industrial computing portfolio) |
| Model | BK698CPA15B0 |
| Form Factor | 6U VME64 (233.35 mm × 160 mm, full – height) |
| Processor | Intel Pentium III, 800 MHz – 1.26 GHz (model – specific), 256 KB/512 KB on – die L2 cache |
| Memory | Max 512 MB PC133 SDRAM (single SODIMM slot); 1 GB on – board flash for program/data storage |
| Graphics | Integrated AGP SVGA controller, 4 MB dedicated video RAM |
| VMEbus Interface | VME64 – compliant, master/slave operation; A16/A24/A32 addressing; D08/D16/D32 data widths |
| Communication Interfaces | Dual 10/100Base – TX Ethernet (RJ – 45); 2 × RS – 232/422/485 serial ports; 1 × parallel port; Optional PCI Ultra160 SCSI |
| Expansion | PCI Mezzanine Card (PMC) slot; VME backplane for I/O module expansion |
| Power Requirements | + 5V DC, + 12V DC, – 12V DC (from VME backplane); Power consumption: < 40 W |
| Operating Temperature | – 40°C to + 85°C (extended range) |
| Storage Temperature | – 55°C to + 125°C |
| Humidity | 5% – 95% non – condensing |
| Shock/Vibration | Compliant with MIL – STD – 810G (shock: 50 g, 11 ms; vibration: 10 g, 10 – 2000 Hz) |
| Certifications | CE, UL 508, IEC 61010 – 1 |
| Weight | Approx. 1.2 kg |
Functional Features
- High – Performance Processing: Intel Pentium III processor with 256 KB/512 KB L2 cache delivers high – speed data processing and deterministic control for real – time industrial applications.
- VME64 Master/Slave Operation: Acts as both master and slave on the VME64 backplane, enabling flexible system architecture and seamless integration with VME I/O modules.
- Dual Ethernet Connectivity: 10/100Base – TX dual Ethernet ports support network redundancy and industrial protocols like Modbus/TCP, Profinet, and Ethernet/IP.
- Rugged Design: Operates in – 40°C to + 85°C temperature range, with MIL – STD – 810G – compliant shock/vibration resistance for harsh industrial/aerospace use.
- Flexible Memory & Storage: Max 512 MB SDRAM and 1 GB flash storage ensure sufficient space for complex control programs and real – time data logging.
- Multiple Expansion Options: PMC slot for specialized I/O (e.g., analog I/O, FPGA) and VME backplane expansion for scalable system building.
- RTOS Compatibility: Runs VxWorks, QNX, Linux, and Windows XP Embedded, supporting deterministic control and multi – tasking in critical applications.
- Advanced Diagnostics: On – board monitoring for voltage, temperature, and fan speed, with fault reporting via VME backplane and network alerts.
- Hot – Swappable Compatibility: Works with hot – swappable VME modules, minimizing downtime during maintenance.
- Secure Boot & Encryption: Supports secure firmware updates and encrypted data storage to protect against unauthorized access.
Application Scenarios
- Industrial Automation & Process Control: Serves as a central controller in manufacturing lines, processing plants, and DCS, handling high – speed data acquisition and deterministic control of actuators/valves.
- Power Generation (Gas Turbine Control): Controls gas turbine speed, fuel flow, and emissions monitoring in power plants, integrating with turbine protection systems and SCADA networks.
- Aerospace & Defense: Used in avionics test benches, radar systems, and military embedded computers, withstanding extreme temperature/vibration in airborne/ground – based systems.
- Oil & Gas Upstream Operations: Manages wellhead monitoring, pipeline flow control, and remote terminal units (RTUs) in harsh offshore/onshore environments.
- Railway Signaling & Control: Powers train control systems, signal processing, and track monitoring, ensuring reliable operation in rail’s harsh electrical and mechanical conditions.
- Marine & Offshore Systems: Controls propulsion systems, navigation equipment, and safety systems on ships and offshore platforms, complying with marine environmental standards.
- Medical & Scientific Instruments: Acts as a data processing unit in medical imaging devices, industrial spectrometers, and material testing equipment, providing high – precision control and data logging.
