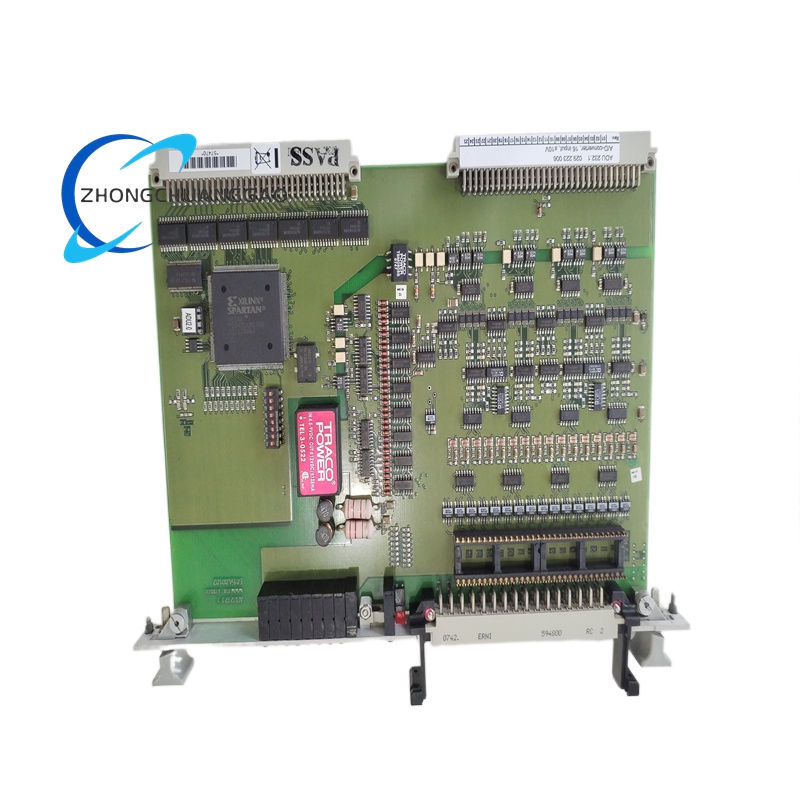

The GE ADU232 is a 16-channel analog-to-digital conversion module designed for industrial automation and process control systems, developed under the Alstom product line integrated into GE’s industrial solutions portfolio. It serves as a core data acquisition component that converts analog voltage signals (±10V range) from sensors and field devices into high-precision digital values for processing units, controllers, and SCADA systems. The module features an integrated processor for on-board signal conditioning, noise filtering, and data formatting, eliminating the need for external signal conditioners and reducing system complexity. It integrates seamlessly with industrial control systems, offering reliable data conversion with robust isolation and environmental tolerance to support critical process monitoring and control applications across diverse industries. The module’s compact design and DIN rail mounting facilitate easy installation in control cabinets, while its compliance with industrial standards ensures long-term operational stability.
Description
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | GE (Alstom Product Line Integration) |
| Model | ADU232 (Model Number: 590.043149) |
| Product Type | 16-Channel Analog-to-Digital Conversion Module |
| Number of Channels | 16 independent single-ended analog input channels |
| Input Voltage Range | ±10V (covers standard industrial analog signal levels) |
| Resolution | 16-bit (ensures high-precision conversion for critical measurements) |
| Accuracy | ±0.05% of full scale (after calibration and linearization) |
| Conversion Time | 2 ms per channel (all 16 channels updated within 32 ms) |
| Isolation | 250 VDC channel-to-bus isolation; 50 VAC channel-to-channel isolation |
| Power Requirements | 24 VDC @ 300 mA (typical); 7.2 W max power consumption |
| Integrated Components | On-board processor for signal conditioning, filtering, and data formatting; dedicated PCB unit for signal integrity |
| Input Impedance | >10 MΩ (differential mode) to minimize sensor loading |
| Operating Temperature | -40°C to +70°C (ambient) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 0%–95% RH (non-condensing) |
| EMI/RFI Immunity | Complies with EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4 |
| Mounting | DIN rail mounting (standard industrial cabinet installation) |
| Dimensions | 120 mm × 80 mm × 60 mm (standard industrial module form factor) |
| Weight | Approximately 350 g |
| Compliance | UL 508, CE Mark, RoHS compliant |
Functional Features
- 16 Independent Channels: Supports 16 analog input signals simultaneously for multi-point data acquisition in complex systems.
- On-Board Signal Processing: Integrated processor handles amplification, filtering, and linearization locally, reducing controller CPU load.
- 16-Bit High Resolution: Delivers precise digital conversion for accurate measurement of critical process variables.
- 250 VDC Channel-to-Bus Isolation: Protects the control system backplane from high-voltage transients in industrial power environments.
- 50 VAC Channel-to-Channel Isolation: Eliminates cross-talk and ground loops between channels, ensuring data integrity.
- Fast Conversion Rate: 2 ms per channel enables real-time monitoring of dynamic industrial processes.
- Direct System Integration: Plugs directly into control system backplanes with automatic recognition by processing units.
- No External Conditioners: On-board signal conditioning reduces wiring, installation costs, and potential points of failure.
- DIN Rail Mounting: Facilitates easy installation and maintenance in standard industrial control cabinets.
- Robust Environmental Rating: Operates in -40°C to +70°C ambient temperatures, suitable for harsh industrial installations.
- Compliance with Industrial Standards: Meets UL 508, CE, and RoHS requirements for global deployment.
- PCB Unit Integration: Includes a sturdy printed circuit board unit for enhanced mechanical and electrical reliability.
Application Scenarios
- Industrial Automation: Monitors temperature, pressure, flow, and level signals in manufacturing lines to maintain process stability and efficiency.
- Power Generation: Tracks generator stator temperature, transformer oil temperature, and turbine bearing vibration for predictive maintenance and overload protection.
- Chemical Processing: Converts reactor pressure, pH, and flow rate signals for precise process control and safety interlock activation.
- Water & Wastewater Treatment: Measures dissolved oxygen, turbidity, and flow in treatment processes to ensure regulatory compliance and operational efficiency.
- Metallurgical Operations: Monitors furnace temperature, rolling mill pressure, and cooling system flow to maintain product quality and equipment integrity.
- Pharmaceutical Manufacturing: Converts temperature and pressure signals in fermentation tanks and lyophilizers to adhere to GMP guidelines for product safety.
- Food & Beverage Production: Controls pasteurization temperature, filling machine pressure, and refrigeration system performance for consistent product quality.
