Product Short Description
Product Introduction

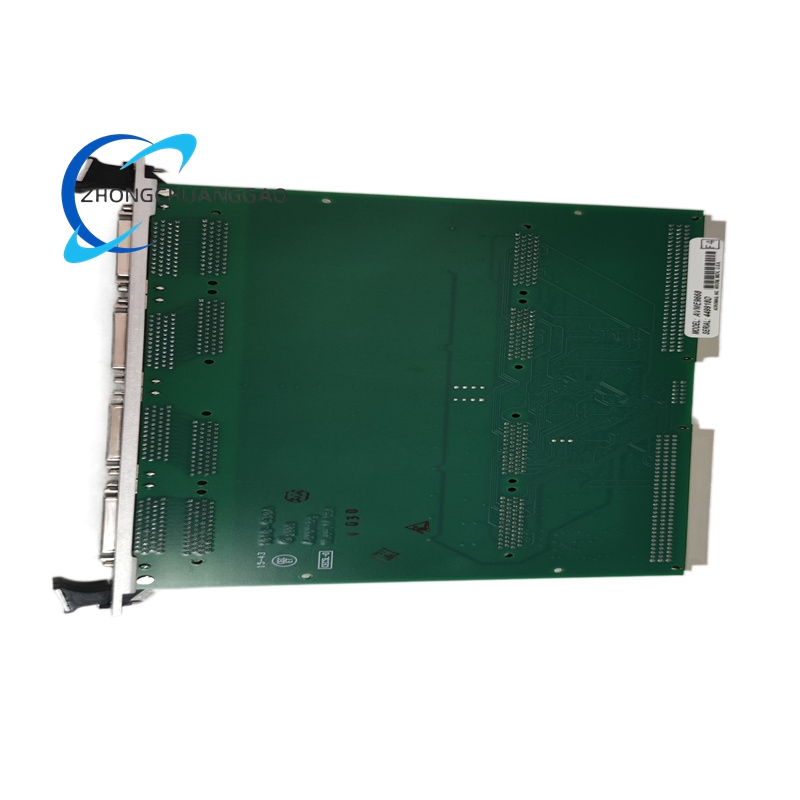

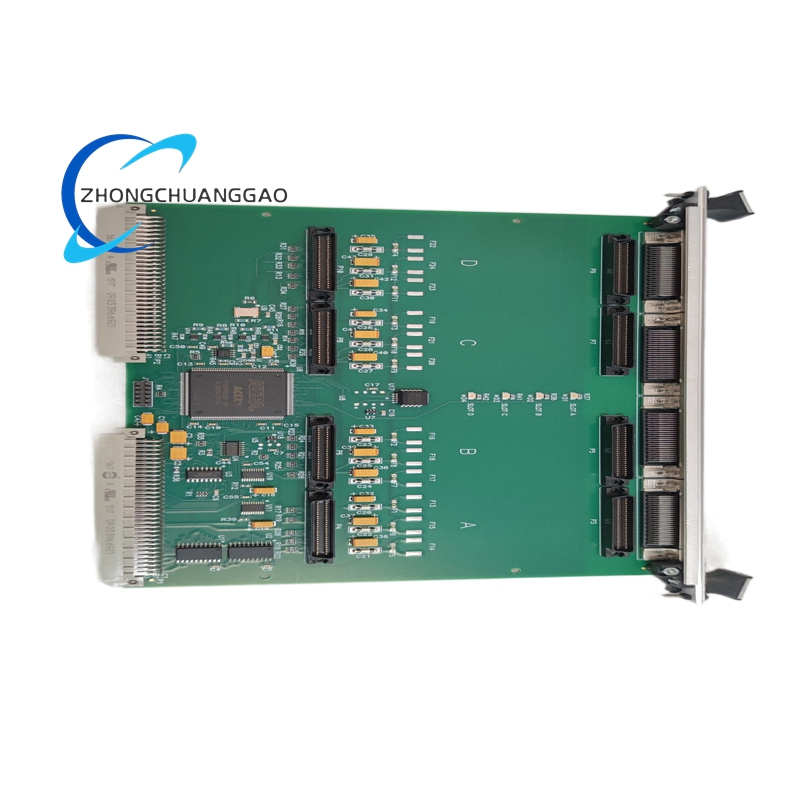

The GE (Acromag) AVME-9668 is a 6U full-height VMEbus non-intelligent slave carrier board designed to interface Industry Pack (IP) mezzanine modules with the VMEbus, enabling flexible I/O expansion for embedded industrial systems. It supports up to four IP modules (analog I/O, digital I/O, counter/timer, serial, FPGA) with front-panel SCSI-2 connectors for field I/O signals. The board provides individually fused and filtered +5V, +12V, -12V power to each IP, supports 8MHz/32MHz IP clocks and two interrupt channels per IP, and operates as a passive VMEbus slave for IP register, I/O, and memory access. It is ideal for rugged industrial, aerospace, and defense applications requiring modular I/O customization with minimal cost and space, replacing multiple dedicated VMEbus cards with a single configurable carrier.
Description
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | GE (Acromag, a GE Digital partner brand) |
| Model | AVME-9668 |
| Product Type | 6U VMEbus Non-Intelligent Industry Pack (IP) Carrier Board |
| Form Factor | 6U VMEbus (full-height, 233.35 mm × 160 mm) |
| IP Module Capacity | 4 independent IP module slots (A, B, C, D) |
| VMEbus Interface | Non-intelligent slave; Addressing: A16 (I/O/ID PROM), A24 (memory); Data widths: D08/D16 |
| Front Panel Connectors | 4 × SCSI-2 connectors (one per IP module, field I/O access) |
| IP Clock Support | 8 MHz and 32 MHz (switchable per IP) |
| Interrupt Support | 2 interrupt channels per IP; VMEbus interrupt levels software-programmable |
| Power Supply to IP | Individually fused and filtered +5V, +12V, -12V DC |
| IP Memory Space | Configurable 1 MB – 8 MB (VMEbus A24 address space) |
| Operating Temperature | Standard: 0°C to +70°C; Extended (E version): -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% – 95% (non-condensing) |
| VMEbus Compliance | ANSI/IEEE 1014-1987 (VMEbus standard) |
| Power Input | From VMEbus backplane (+5V, +12V, -12V) |
| LED Indicators | Power, IP module status, interrupt, and fault indicators |
| Mounting | Standard 6U VMEbus chassis slot |
| Weight | Approx. 0.5 kg |
Functional Features
- 4 IP Module Slots: Accommodates up to four IP modules (analog/digital I/O, counter/timer, serial, FPGA) for fully customizable I/O configurations.
- Front-Panel SCSI-2 I/O: Dedicated SCSI-2 connectors per IP enable secure field I/O connections with shielded cabling for noise immunity.
- Isolated Power Delivery: Individually fused and filtered +5V, +12V, -12V to each IP module, ensuring signal integrity and protection from cross-module noise.
- Dual Interrupt Channels: 2 programmable interrupts per IP for real-time event handling and system responsiveness.
- Flexible IP Clock Options: 8 MHz/32 MHz clock support per IP for matching module speed requirements.
- Full IP Data Access: Supports IP I/O, memory, and ID PROM spaces via VMEbus for complete module control and configuration.
- Software-Programmable Addressing: VMEbus address modifiers (A16/A24) and data widths (D08/D16) configurable for seamless IP integration.
- Rugged Environmental Rating: Extended temperature range (-40°C to +85°C for E version) and vibration/shock tolerance for harsh industrial/aerospace use.
- Cross-Vendor IP Compatibility: Works with Acromag and third-party IP modules, maximizing hardware flexibility.
- Simplified Debugging: LED indicators for power, IP status, interrupts, and faults enable quick system health checks.
Application Scenarios
- Industrial Embedded Control: Integrates analog/digital I/O IP modules for PLC/DCS I/O expansion in manufacturing lines, supporting process monitoring and control.
- Aerospace & Defense Systems: Interfaces FPGA/serial IP modules in avionics, radar, and military embedded systems, operating reliably in extreme temperatures and vibration.
- Oil & Gas Field Monitoring: Powers IP-based sensor interfaces for wellhead data acquisition and pipeline control in remote, harsh environments.
- Aerospace Test Equipment: Customizes I/O for flight simulation and avionics test benches, using mixed IP modules for signal generation and data logging.
- Military Vehicle Electronics: Supports rugged I/O for vehicle control systems, integrating digital I/O and counter/timer IP modules in VMEbus-based embedded platforms.
- Power Generation Control: Expands I/O for turbine monitoring and generator protection systems, connecting to transducers and actuators via IP modules.
- Railway Signaling & Control: Interfaces safety-critical I/O modules for train control systems, ensuring reliable operation in harsh rail environments.
