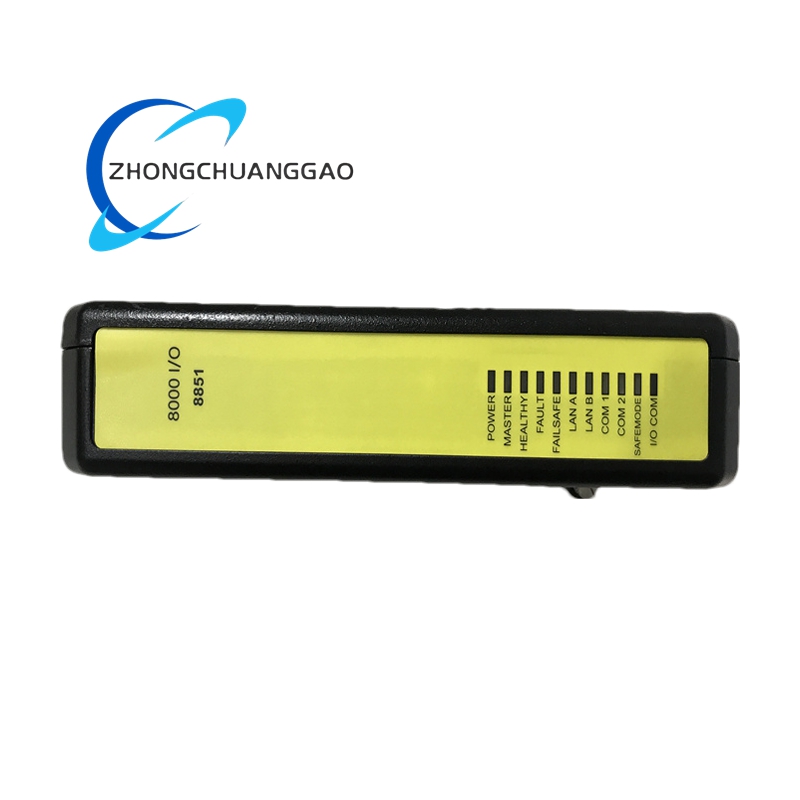

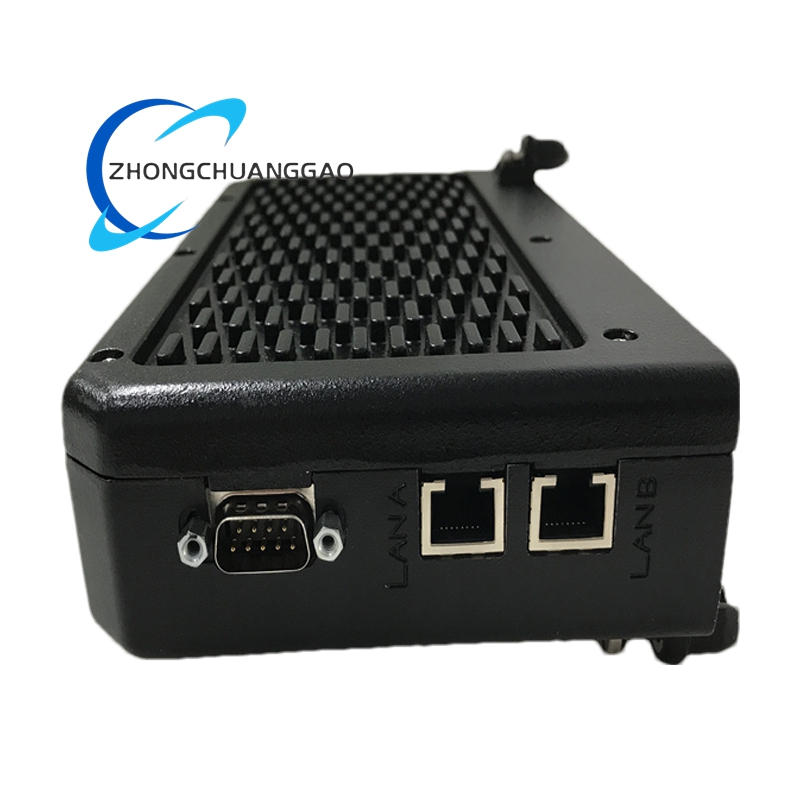

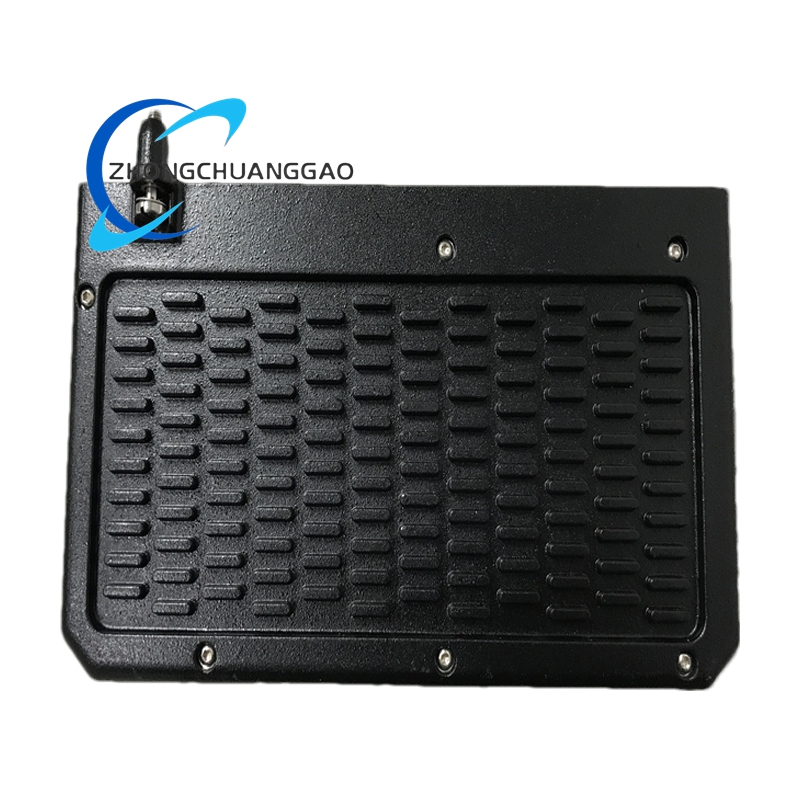

GE 8851-LC-MT SafetyNet Safety Network Controller and 10Gigabit Multimode Fiber Transceiver

Description

• Power and Physical Parameters
  • It adopts dual redundant 48VDC power input with a current of no more than 500mA, ensuring uninterrupted power supply for the module.
  • It has a physical size of 140mm×100mm×30mm, a weight of approximately 300 grams, and an IP30 protection level suitable for rack mounting.
  • Its operating temperature range is from -40°C to 85°C, and the storage temperature range is from -40°C to 90°C, adapting to extreme temperature environments in industrial sites.

Function Features

• Dual Core Functions Integration

  It integrates the dual core capabilities of safety network control and 10Gigabit fiber transmission. It not only undertakes safety control tasks such as monitoring the operating status of on-site equipment and executing safety interlocking logic but also realizes high-speed and large-capacity transmission of industrial data. This integration reduces the number of separate devices in the system, simplifies the network structure, and lowers the difficulty of system integration and maintenance.

• Strong Expandability and Compatibility

  It supports connection with up to 64 I/O modules and can carry two SafetyNet controllers. Users can expand the number of controlled points and functional modules according to actual application needs. It is compatible with other GE Fanuc SafetyNet components and various industrial communication protocols, enabling seamless connection with existing industrial control systems without the need for large-scale equipment replacement.

• High Reliability Guaranteed by Redundancy and Protection

  The dual redundant power input design allows seamless switching in case of a single power supply failure, avoiding system downtime caused by power issues. The 5kV electrical isolation between the optical and electrical ports prevents equipment damage due to electrical interference. Its metal shell and strict manufacturing processes enhance its resistance to vibration and dust, ensuring a long service life and stable operation in harsh environments.

• Intelligent Remote Management

  It is equipped with LED indicators to display power, transmission rate, link status, and data transmission conditions in real-time. It supports a web management interface and SNMPv3 protocol, allowing managers to remotely monitor parameters such as the module’s optical power and operating temperature. The port mirroring function facilitates traffic analysis and precise positioning of network faults.

Application Scenarios

• Intelligent Manufacturing Factories

  It builds 10Gigabit backbone links between workshops and central control rooms. It connects edge computing gateways of each production unit with cloud platforms. While transmitting real-time production data for visual management, it uses its safety control function to monitor the operating status of robotic arms, conveyors, and other equipment. It triggers safety interlocks promptly when abnormalities occur to ensure the safety of the production process.

• Large Energy Bases

  It is applied in wind farms and photovoltaic power stations. It connects the SCADA systems of power generation equipment with remote operation and maintenance centers. It transmits a large amount of equipment operation data and meteorological monitoring information at high speed. It realizes intelligent scheduling of new energy power generation. Its safety control capability ensures the stable operation of power generation equipment and prevents safety accidents caused by abnormal parameters.

• Rail Transit Hubs

  It is installed in subway and high-speed rail stations. It transmits high-definition surveillance video from platforms and halls, as well as data from ticket gate systems, to the central control center through high-speed fiber transmission. The 10Gbps bandwidth ensures non-delayed transmission of 4K video. It provides a reliable communication guarantee for passenger flow scheduling and public safety monitoring.

• Petrochemical Industry

  It is integrated into the control systems of chemical plants and oil refineries. It connects with on-site pressure, temperature, and gas concentration sensors through I/O modules. It transmits collected data to the upper-level DCS system at high speed. Its SIL2 safety level and resistance to harsh environments ensure that the system can execute safety interlocking commands in a timely manner, preventing accidents such as leaks and explosions.

• Building Automation Systems

  It is used in large commercial buildings and industrial parks. It connects the building’s lighting, air conditioning, and security systems. It realizes high-speed data interaction between various subsystems. It supports centralized management of the building’s energy consumption and equipment operation status. It helps optimize energy allocation and improve the efficiency of building operation and management while ensuring the safety of the building’s electrical and mechanical systems.
