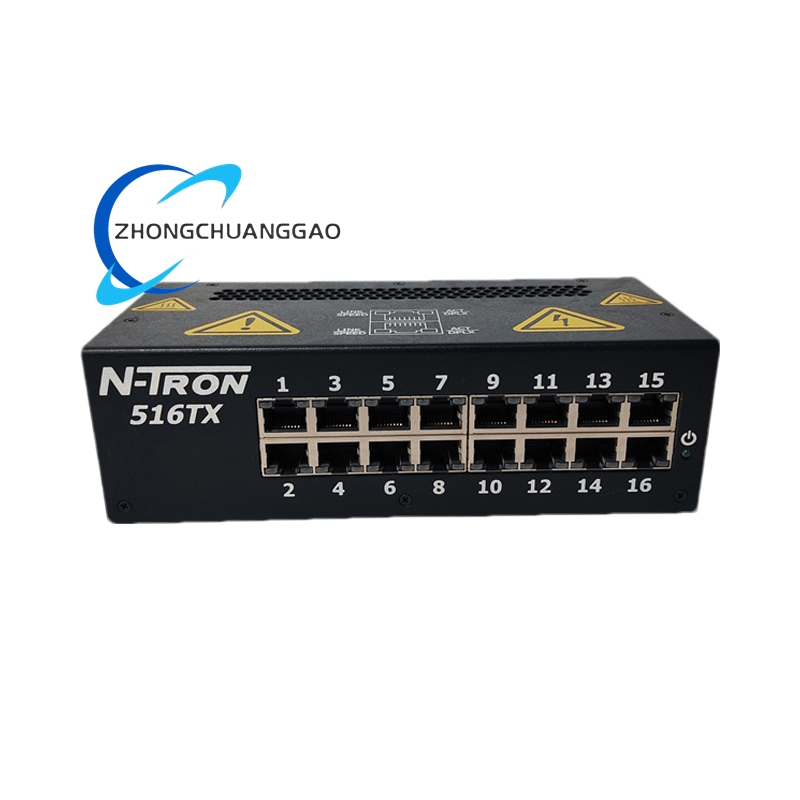

GE 516TX 336A4940DNP516TX — Industrial Ethernet Switch (N-Tron 516TX Series)

Description

• Ports: 16 × 10/100Base-TX RJ-45, auto-negotiating, auto-MDIX
• MAC addresses: 4,000
• Aging time: 300 s
• Backplane throughput: 2.6 Gb/s
• Switching method: store-and-forward
• Frame size: 128–1,518 bytes
• Power: redundant 10–30 VDC inputs, typical 6 W
• Operating temperature: –40 °C to +85 °C
• Storage temperature: –40 °C to +85 °C
• Humidity: 10 %–95 % non-condensing
• Altitude: 0–10,000 ft
• Dimensions: 2.3″ H × 7.4″ W × 3.5″ D
• Weight: 2.2 lbs (1.0 kg)
• Mounting: DIN-rail (35 mm), panel, or rack kits
• Protection: IP20 metal housing, shock- and vibration-resistant design
• Compliance: FCC, CE, EMC Dir 89/336/EEC, EN 55011, EN 61000-6-2/4, UL 508, UL 1604 Class I Div 2, ATEX II 3 G Ex nA, ABS shipboard approval, RoHS compliant

• Multi-protocol support: Ethernet/IP, ControlNet, DeviceNet for seamless integration with Rockwell Automation and other control systems
• VLAN (802.1Q), QoS, IGMP snooping, port mirroring, RSTP for traffic prioritization and network segmentation
• N-View OPC-based remote monitoring (management software option)
• Dual-color LEDs for link, speed, activity, and duplex status
• Redundant power inputs ensure continuous operation during supply failures
• Wide-temperature components guarantee reliable performance in mining sites, steel mills, and outdoor cabinets

• Manufacturing lines: real-time coordination of PLCs, robots, and SCADA systems
• Power generation & distribution: turbine control, substation automation within GE Mark VIe ecosystems
• Chemical & pharmaceutical plants: process parameter monitoring and safety interlocks
• Transportation: traffic signal control, rolling stock communication networks
• Greenfield and retrofit projects: drop-in upgrade for legacy hub-based networks, enabling deterministic Ethernet communication
