Product Short Description

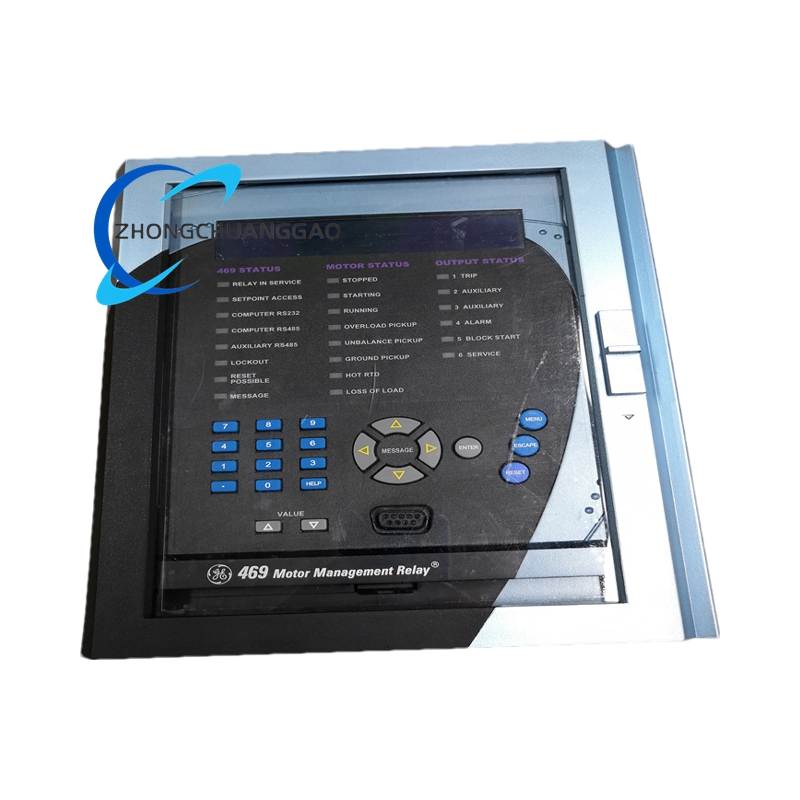

The 469-P5-HI-A20-E-H is a member of the GE Multilin 469 series of motor-protection and management relays. Designed for medium- to large-horsepower AC motors, it combines advanced protection algorithms, metering, and control logic in a single, drawer-style package. The unit is suited for continuous-duty, critical-process motors found in heavy industry, infrastructure, and energy facilities.
Description
Technical Specifications
• Model code breakdown
– 469: Base motor-management platform
– P5: 5 A phase-current transformer (CT) secondary rating
– HI: Wide-range control power 90–300 VDC or 70–265 VAC, 48–62 Hz
– A20: Four isolated 4–20 mA analog outputs
– E: Enhanced large LCD display
– H: Conformal-coated board for harsh environments
• Model code breakdown
– 469: Base motor-management platform
– P5: 5 A phase-current transformer (CT) secondary rating
– HI: Wide-range control power 90–300 VDC or 70–265 VAC, 48–62 Hz
– A20: Four isolated 4–20 mA analog outputs
– E: Enhanced large LCD display
– H: Conformal-coated board for harsh environments
• Current inputs
– Phase CT: 1 A or 5 A secondary, burden <0.2 VA per input
– Ground-fault CT: 1 A / 5 A secondary or 50:0.025 core-balance CT
– Differential CT: 1 A / 5 A secondary, user selectable
– Phase CT: 1 A or 5 A secondary, burden <0.2 VA per input
– Ground-fault CT: 1 A / 5 A secondary or 50:0.025 core-balance CT
– Differential CT: 1 A / 5 A secondary, user selectable
• Voltage inputs
– Nominal 57–600 VAC (direct or via VT), true RMS to 63 Hz
– Nominal 57–600 VAC (direct or via VT), true RMS to 63 Hz
• Digital inputs
– Nine opto-isolated, 24–250 VDC or 24–240 VAC
– Nine opto-isolated, 24–250 VDC or 24–240 VAC
• Contact outputs
– Eight Form-C relays, 8 A @ 250 VAC / 30 VDC resistive
– Eight Form-C relays, 8 A @ 250 VAC / 30 VDC resistive
• Analog outputs
– Four 4–20 mA, 0–1 mA, or 0–20 mA user configurable, 0.1 % accuracy
– Four 4–20 mA, 0–1 mA, or 0–20 mA user configurable, 0.1 % accuracy
• Communications
– Front RS-232, rear RS-485, 10Base-T Ethernet (Modbus RTU/TCP)
– Front RS-232, rear RS-485, 10Base-T Ethernet (Modbus RTU/TCP)
• Environmental
– Operating: –40 °C to +70 °C, 5 % to 95 % RH non-condensing
– Storage: –40 °C to +85 °C
– Vibration: 2 g, 10–500 Hz; Shock: 30 g, 11 ms
– Pollution degree 2, overvoltage category III
– Operating: –40 °C to +70 °C, 5 % to 95 % RH non-condensing
– Storage: –40 °C to +85 °C
– Vibration: 2 g, 10–500 Hz; Shock: 30 g, 11 ms
– Pollution degree 2, overvoltage category III
• Mechanical
– Dimensions: 190 mm W × 140 mm H × 170 mm D
– Weight: 7.7 kg (17 lb)
– Dimensions: 190 mm W × 140 mm H × 170 mm D
– Weight: 7.7 kg (17 lb)
• Approvals
– UL Listed, CSA, CE, ISO, ABS marine
– UL Listed, CSA, CE, ISO, ABS marine
Functional Features
• Full motor protection suite
– Thermal overload with RTD and negative-sequence feedback
– Phase, ground, differential, and instantaneous overcurrent
– Undervoltage, overvoltage, phase reversal, single-phasing
– Locked-rotor, jam, stall, underload, and acceleration timers
– Voltage-compensated acceleration and reduced-voltage start control
• Full motor protection suite
– Thermal overload with RTD and negative-sequence feedback
– Phase, ground, differential, and instantaneous overcurrent
– Undervoltage, overvoltage, phase reversal, single-phasing
– Locked-rotor, jam, stall, underload, and acceleration timers
– Voltage-compensated acceleration and reduced-voltage start control
• Thermal model
– Biased by RTD and negative-sequence current for precise thermal state estimation
– Biased by RTD and negative-sequence current for precise thermal state estimation
• Start supervision
– Inhibit restart until rotor cools, start-in-progress timers, anti-backspin logic
– Inhibit restart until rotor cools, start-in-progress timers, anti-backspin logic
• Metering & diagnostics
– Voltage, current, power, energy, power factor, frequency, speed (RPM)
– 1 ms time-stamped event recorder, 100-cycle waveform capture
– Voltage, current, power, energy, power factor, frequency, speed (RPM)
– 1 ms time-stamped event recorder, 100-cycle waveform capture
• Auto-configurator
– Wizard-based guided setup for quick motor parameter entry
– Wizard-based guided setup for quick motor parameter entry
• Maintenance tools
– Draw-out construction for loop testing without downtime
– Trip-circuit supervision and breaker-wear monitoring
– Draw-out construction for loop testing without downtime
– Trip-circuit supervision and breaker-wear monitoring
Applications
• Oil & gas: offshore pumps, compressors, gas-lift compressors
• Power generation: induced-draft fans, boiler-feed pumps, coal mills
• Water & wastewater: lift stations, aeration blowers, sludge-handling motors
• Pulp & paper: refiners, chippers, recovery boiler fans
• Metals & mining: rolling-mill motors, crushers, conveyor drives
• Oil & gas: offshore pumps, compressors, gas-lift compressors
• Power generation: induced-draft fans, boiler-feed pumps, coal mills
• Water & wastewater: lift stations, aeration blowers, sludge-handling motors
• Pulp & paper: refiners, chippers, recovery boiler fans
• Metals & mining: rolling-mill motors, crushers, conveyor drives
Ordering & Compatibility
• Standard package includes EnerVista 469 setup software, quick-start guide, and test certificate.
• Optional accessories: 19-inch panel adapter, metal demo case, RS-232 to RS-485 isolator, and high-voltage interface modules.
• Standard package includes EnerVista 469 setup software, quick-start guide, and test certificate.
• Optional accessories: 19-inch panel adapter, metal demo case, RS-232 to RS-485 isolator, and high-voltage interface modules.
