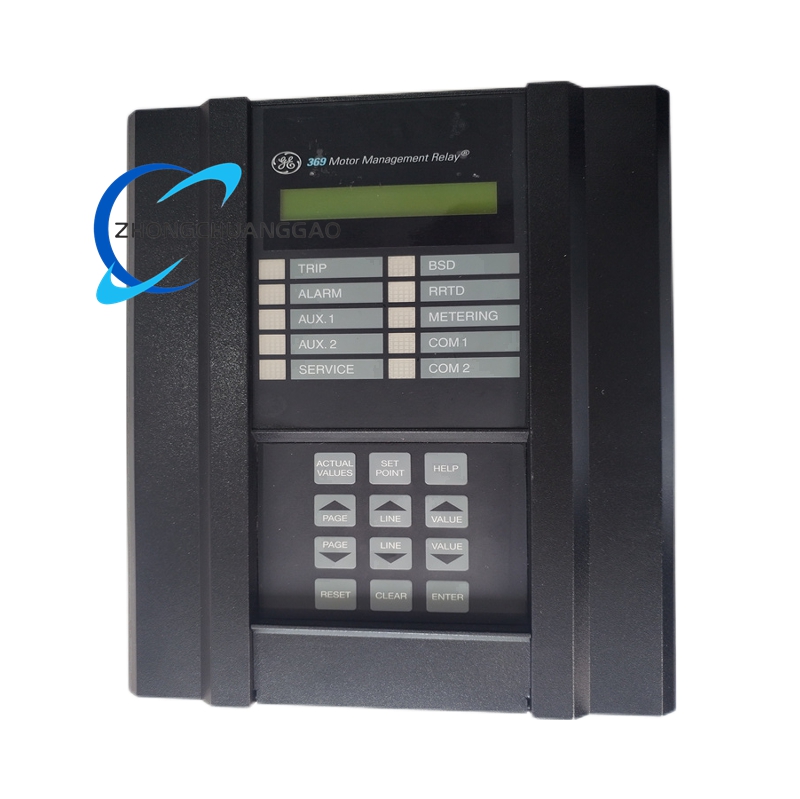

GE 369-HI-R-M-0-0-0-E Motor Management Relay

Product Short Description

Technical Specifications
- Rated Voltage: 50 – 300 VDC or 60 – 265 VAC
- Rated Current: 10 A or 20 A (depending on the specific model)
- Input Voltage: 50 – 300 VDC or 60 – 265 VAC
- Output Voltage: 0 – 250 VAC
- Output Current: 0 – 10 A
- Frequency: 50 – 60 Hz
- Phase Current Input: 1 A and 5 A
- Protection Level: IP67 or IP20 (depending on the specific model)
- Operating Temperature Range: -40°C to +70°C or -20°C to 55°C
- Storage Temperature Range: -40°C to +85°C
- Humidity Range: 5% to 95%RH, non – condensing
- Size: Approximately 200 x 150 x 80 mm or 146 x 89 x 35 mm
- Weight: Approximately 2 kg or 300 g
- Input Power: 110 – 250 volts DC, 100 – 240 volts AC
- Number of Digital/Switch Inputs: 6, with optical isolation

GE 369-HI-R-M-0-0-0-E Motor Management Relay

Description
Reviews (0)

Description

Function Features
- Control Function: It is an electromagnetic relay, which realizes the on – off control of the circuit by the electromagnetic attraction and release of contacts. It can be used to control the start, stop and direction of the motor, and support a variety of control modes to meet different application requirements.
- Protection Function: It has multiple protection functions, including overload protection, short – circuit protection, ground fault protection, etc. It can also provide pre – trip alarms for ground faults, mechanical blockages, RTD over – temperature, etc., and can detect and isolate abnormal conditions to improve the stability of the system and the service life of the motor.
- Measurement Function: It has the ability to measure current, voltage, power and frequency, and can also record event reports, capture waveforms and start – up data, providing key insights into system performance.
- High Reliability: It has a long mechanical and electrical life, and can still maintain normal operation after multiple suction and release, and can work continuously for a long time. It also has the advantages of small size, light weight, strong anti – interference ability, etc.
- Convenient Installation: It adopts the standard DIN rail installation method, which is convenient for users to fix it on the control cabinet or operation panel.
Application Scenarios
- Industrial Automation: It is used for the motor protection and control of various industrial equipment, such as production lines, robots, conveyor belts, etc.
- Power System: It is used for the protection of high – voltage equipment such as generators and transformers.
- Petrochemical Industry: It is used for the protection of equipment such as pumps and fans.
- Transportation: It is used for the motor control of trains, elevators and other equipment.
- HVAC System: It is used for the protection of air – conditioners, fan – coil units and other equipment.
- Water Treatment: It is used for the motor protection of pump stations.
- Building Field: It is applicable to elevators, air – conditioning systems and other equipment in buildings.
