Product Short Description
Function Characteristics
- Triple RTD Temperature Monitoring: Supports 3 independent RTD inputs for stator, bearing, or winding temperature measurement, with programmable RTD types (Platinum, Nickel, Copper) to match application requirements.
- Comprehensive Protection Suite: Provides overload (thermal model-based), short circuit, ground fault, locked rotor, undervoltage, phase loss, and breaker failure protection to cover all critical motor fault scenarios.
- Isolated Analog Output: Features a single isolated 0-20 mA or 4-20 mA analog output for transmitting motor parameters (current, temperature, load percentage) to SCADA or DCS systems.
- Precise Electrical Measurement: Measures phase current, line voltage, frequency, power, and energy with high accuracy to support performance analysis and energy management.
- Programmable Logic and Alarms: Allows customization of protection settings, alarm thresholds, and output actions via front-panel keypad or software (using GE Multilin EnerVista software).
- Fault Event Logging: Stores up to 50 fault events with time stamps, enabling quick troubleshooting and root-cause analysis.

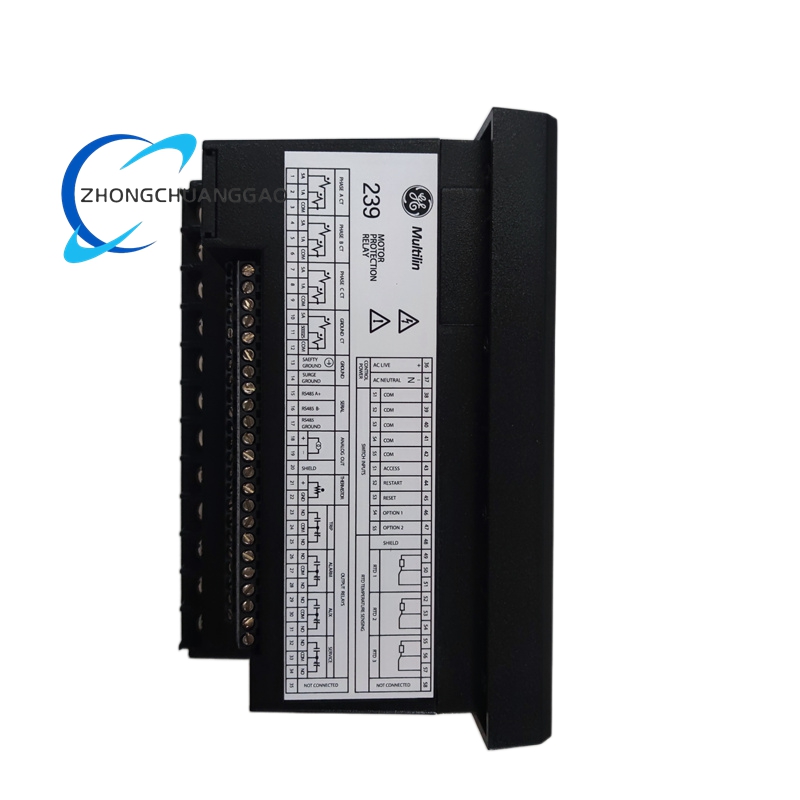

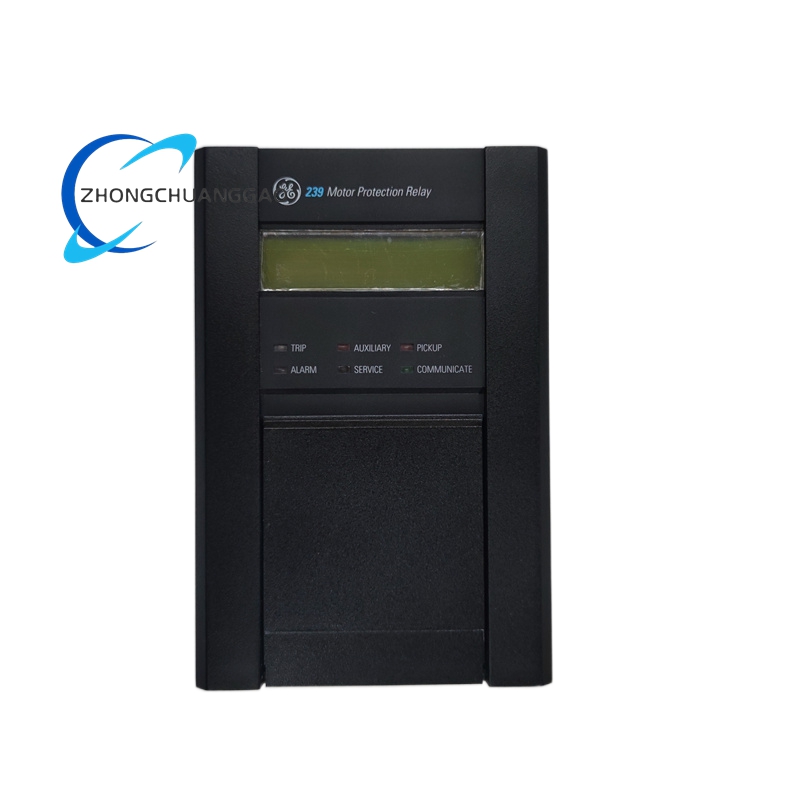

- User-Friendly Interface: Front-panel LCD display with intuitive menu navigation for real-time status monitoring, parameter configuration, and diagnostics.
- Compact Design: DIN-rail mountable form factor fits standard motor control centers (MCCs) and control panels.
Description
Product Introduction
This relay is engineered to protect three-phase AC motors from damage caused by electrical and thermal faults in harsh industrial environments. It integrates microprocessor-based control with three Resistance Temperature Detector (RTD) inputs for real-time monitoring of stator, bearing, or winding temperatures, and includes a single isolated analog output for seamless integration with control systems. The device delivers advanced protection functions such as overload, short circuit, ground fault, locked rotor, and breaker failure protection, while offering precise measurement of electrical parameters to support predictive maintenance and operational efficiency. It is designed for easy installation, configuration, and integration into existing motor control centers (MCCs) and automation systems.
Technical Specifications
| Specification | Details |
|---|---|
| Series | GE Multilin 239 Motor Management Relays |
| Product Type | 3-Phase Motor Protection Relay with 3 RTD Inputs and Isolated Analog Output |
| Control Power Input | 70-265 V AC (50/60 Hz) or 110-250 V DC |
| RTD Inputs | 3 programmable RTD channels (Platinum, Nickel, Copper) |
| RTD Temperature Range | -50°C to +200°C (dependent on RTD type) |
| Analog Output | 1 isolated programmable output (0-20 mA or 4-20 mA) |
| Current Input | 5 A or 1 A nominal (CT-connected for motor current measurement) |
| Voltage Input | Up to 600 V AC (line voltage monitoring) |
| Operating Frequency | 50/60 Hz (compatible with global power systems) |
| Overload Trip Accuracy | ±1% of displayed value (ensures precise protection) |
| Output Relays | 4 Form-C contacts (5 A, 250 V AC; 0.5 A, 30 V DC) for control and alarm functions |
| Communication Interfaces | Modbus RTU (RS-485), optional Profibus DP or DeviceNet |
| Operating Temperature | -40°C to +70°C (wide range for harsh environments) |
| Storage Temperature | -25°C to +85°C |
| Enclosure Protection | IP30 (front panel); NEMA 1/IP20 (mounted in MCC) |
| Dimensions (H x W x D) | 152 mm x 152 mm x 51 mm (standard DIN-rail mountable size) |
| Weight | 0.4 kg (approximate) |
| Certifications | UL, CSA, CE compliant |
Application Scenarios
- Industrial Motor Control Centers (MCCs): Protects motors in manufacturing plants, refineries, and processing facilities, ensuring reliable operation of pumps, fans, compressors, and conveyors.
- Oil and Gas Industry: Safeguards motors in pipeline compressors, wellhead pumps, and refinery equipment, with robust RTD monitoring for high-temperature environments.
- Power Generation: Protects auxiliary motors in power plants (e.g., boiler feed pumps, cooling tower fans) from electrical and thermal stress during continuous operation.
- Water and Wastewater Treatment: Shields motors driving pumps, aerators, and mixers from overloads and temperature-related failures in harsh, corrosive environments.
- Mining and Heavy Industry: Protects motors in crushers, grinders, and material handling systems, with resistance to vibration, dust, and extreme temperatures.
- Food and Beverage Processing: Ensures motor reliability in mixers, blenders, and packaging machinery, supporting hygienic and continuous production processes.
- HVAC Systems: Protects large motors in commercial and industrial heating, ventilation, and air conditioning systems, optimizing energy use and preventing downtime.
Additional Information
- Configuration Software: Compatible with GE Multilin EnerVista software for remote configuration, monitoring, and data logging.
- Certifications: UL, CSA, and CE certified, meeting global safety and performance standards.
- Warranty: 12-month standard warranty, with extended warranty options for critical applications.
- Replacement Compatibility: Direct replacement for older 239 series relays, with backward-compatible programming and wiring.
- Maintenance Requirements: Minimal maintenance; periodic calibration of RTD inputs and software updates recommended annually.
- Manual Reference: GEK-106613C (official product manual) provides detailed installation, configuration, and troubleshooting guidelines.
