Product Short Description
Product Introduction

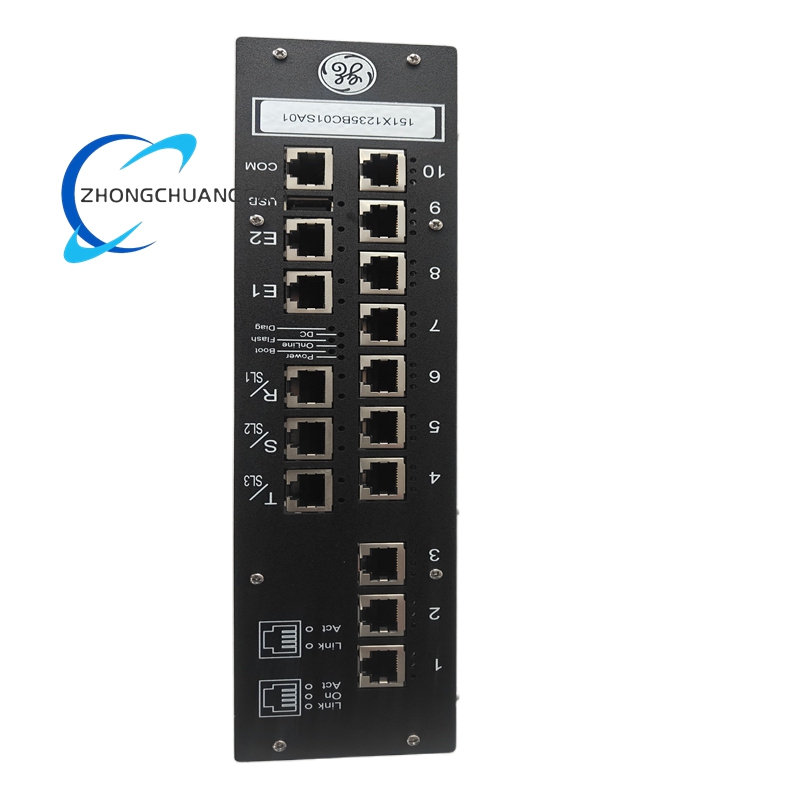

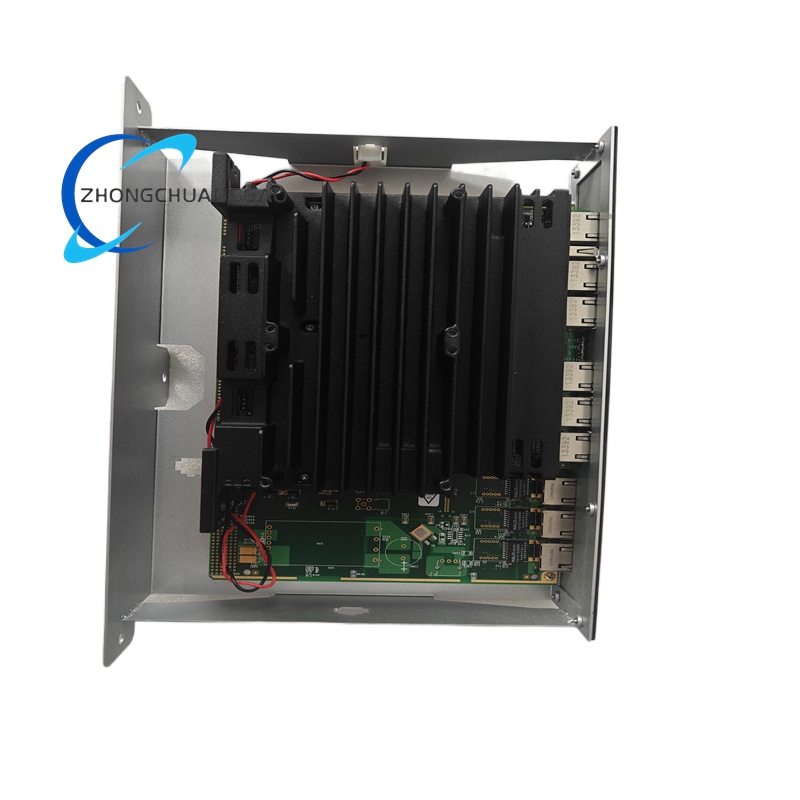

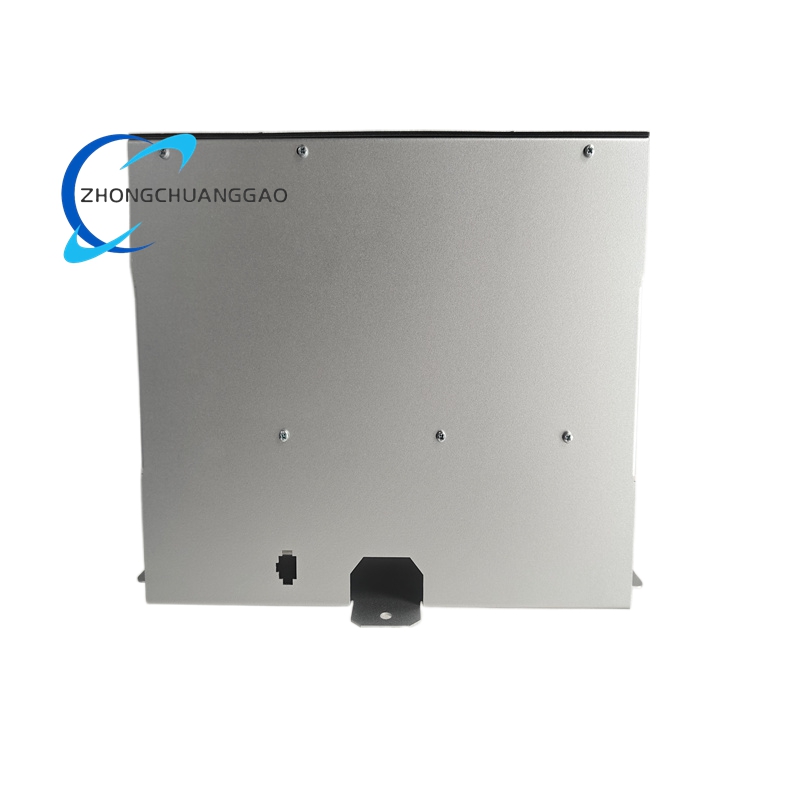

GE 151X1235BC01SA01 is a core control module integrated into the GE Speedtronic EX2100e control system, which combines the functions of a microprocessor – based Universal Controller Stand – Alone (UCSB) and a Compact High – Speed Serial Link Expansion (CSLA) board. It serves as a standalone computing unit dedicated to running application – specific control system logic in industrial settings. Unlike traditional controllers with I/O on the backplane, this module does not host application I/O; instead, it communicates with I/O modules via a private on – board I/O network (IONet). It adopts the QNX Neutrino real – time operating system, ensuring high – speed and reliable operation, and is equipped with safety – related capabilities to meet the functional safety requirements of critical industrial systems.
Technical Specifications
- Model: 151X1235BC01SA01
- Controller Type: UCSB (Universal Controller Stand Alone) and CSLA (Compact high – speed serial link expansion) combination
- Operating System: QNX Neutrino (real – time, multitasking)
Description
- Memory: 2MB RAM, 4MB internal Flash
- I/O Communication: Private special – purpose Ethernet (IONet) for communication with I/O modules
- Power Requirement: 24V DC
- Power Consumption: 10W
- Operating Temperature: -20°C to 70°C
- Dimensions: 38 cm × 23 cm × 10.7 cm
- Weight: 3 kg
- Mounting Method: Panel mounting
- Safety Certification: IEC 61508 certified, capable of SIL 2 and SIL 3 functional safety loops
- Communication Protocols: Supports Ethernet/IP, Modbus, TCP, and private IONet protocols
- Slots: 10 – slot configuration for module expansion
Function Features
- High – Performance Processing: Capable of handling multiple complex tasks simultaneously with minimal latency, which can efficiently process control logic and data transactions in industrial control systems.
- Reliable Hardware & Software Architecture: Ensures no single point of application input is lost during power – down for maintenance or repair, enhancing system operational stability.
- Modular Expansion: The 10 – slot design allows flexible integration of various communication and I/O modules to meet customized configuration needs of different industrial applications.
- Secure Control Capabilities: Works with EX2100e UCSB safety controllers and safety I/O modules to achieve SIL 2 and SIL 3 safety levels, suitable for safety – instrumented system (SIS) applications.
- Stable Communication: Communicates with I/O modules through the dedicated IONet interface, and supports multiple mainstream industrial communication protocols for seamless integration with diverse systems.
- Robust Industrial Design: Built to withstand harsh industrial environments, with stable operation in a wide temperature range and long – term reliable performance.
- User – Friendly Operation: Equipped with an intuitive interface that simplifies programming, monitoring, and maintenance processes, improving operational efficiency.
Application Scenarios
- Industrial Automation: Connects PLCs, sensors, and actuators in production lines to realize automated control and real – time monitoring, which is applicable to manufacturing and assembly lines as well as material handling systems.
- Power Generation: Used in turbine control systems (such as Speedtronic EX2100e) and power plant automation to monitor and control key equipment, ensuring stable power generation operations.
- Oil & Gas Industry: Applied in upstream and downstream processes like drilling, refining, and pipeline transportation for process control and safety monitoring, reducing operational risks.
- Chemical Industry: Utilized in chemical process control loops and safety – instrumented systems to maintain process stability and meet strict safety standards.
- Safety Instrumented Systems (SIS): Deployed in critical safety functions to reduce risks, which is suitable for industries with high safety requirements, such as petrochemicals and pharmaceuticals.
- Energy Management: Used in energy – intensive industries to monitor and optimize energy consumption of equipment, improving energy – use efficiency.
