Product Short Description
Product Introduction

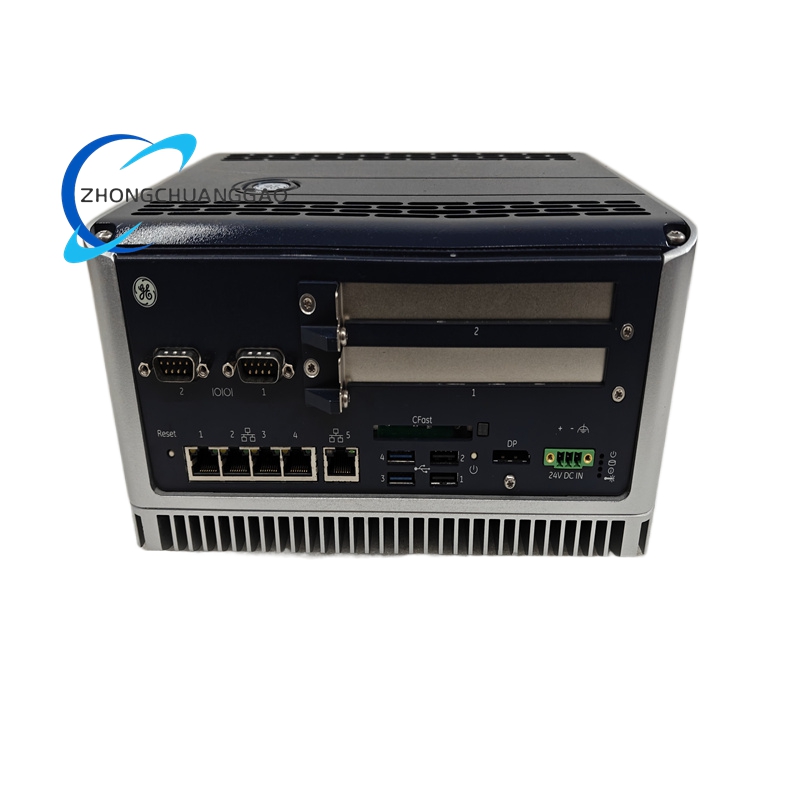

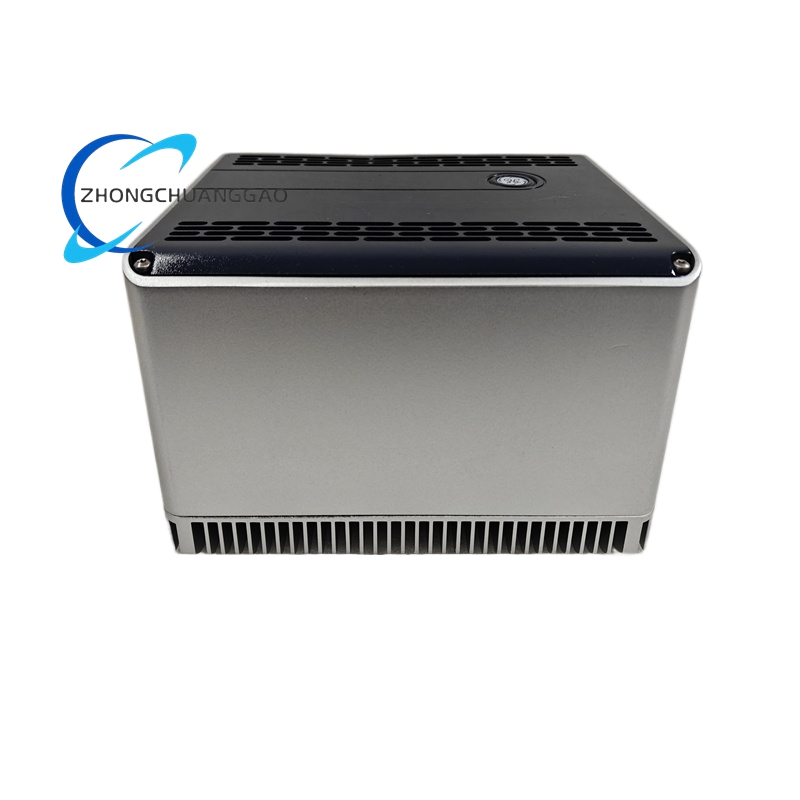

As a key expansion component of the GE PACSystems RXi controller series, this module integrates communication interfaces and I/O expansion capabilities to enhance the controller’s connectivity and control scope in industrial automation. It serves as a bridge between the RXi controller and field devices, supporting multiple industrial communication protocols and additional I/O channels for data acquisition and device control. The module features a compact, rack-mountable design that integrates seamlessly with the RXi controller backplane, ensuring stable data transmission and power supply. It is equipped with a 32-bit microprocessor for fast data processing, supporting real-time communication and control with minimal latency. The module supports hot-swappable installation for easy maintenance without system shutdown, and it complies with industrial standards for electromagnetic compatibility and environmental resilience, making it suitable for harsh factory environments. It enables the RXi controller to connect with various industrial equipment, including sensors, actuators, motor drives, and SCADA systems, expanding the controller’s application range in diverse industrial sectors.
Description
Technical Specifications
| Specification | Details |
|---|---|
| Product Series | GE PACSystems RXi Controller Family |
| Product Type | Communication & I/O Expansion Module |
| Processor | 32-bit high-speed microprocessor for real-time data processing |
| Communication Interfaces | 2 x Ethernet ports (10/100 Mbps, Modbus TCP/IP); 1 x RS-485 port (Modbus RTU); 1 x CANopen port; 2 x USB 2.0 ports |
| I/O Expansion | 8 digital input channels (24 V DC); 8 digital output channels (24 V DC, 2 A per channel); 4 analog input channels (16-bit, 0-10 V DC/4-20 mA); 4 analog output channels (16-bit, 0-10 V DC/4-20 mA) |
| Memory | 64 MB RAM; 32 MB Flash ROM for program storage and data logging |
| Power Supply | 24 V DC (1.5 A max power consumption) from RXi controller backplane |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (L x W x H) | 170 mm x 170 mm x 55 mm |
| Weight | 0.8 kg |
| Mounting | Rack-mountable on RXi controller backplane |
| EMC Compliance | IEC 61000-4-2 (ESD: ±8 kV contact, ±15 kV air); IEC 61000-4-3 (RS: 10 V/m, 80-1000 MHz) |
| Vibration Resistance | IEC 60068-2-6: 10-500 Hz, 2 g peak acceleration |
| Shock Resistance | IEC 60068-2-27: 15 g peak acceleration, 11 ms duration |
| Compliance Certifications | UL, CE, RoHS compliant |
Function Characteristics
- Multi-Protocol Communication: Supports Ethernet (Modbus TCP/IP), RS-485 (Modbus RTU), and CANopen protocols for seamless integration with diverse industrial devices and systems.
- Comprehensive I/O Expansion: Adds 8 digital inputs, 8 digital outputs, 4 analog inputs, and 4 analog outputs to the RXi controller, meeting various data acquisition and control needs.
- High-Precision Analog I/O: 16-bit resolution for analog channels ensures accurate measurement and control of process parameters such as temperature, pressure, and flow.
- Hot-Swappable Installation: Allows module replacement without system shutdown, reducing maintenance downtime and improving operational efficiency.
- Real-Time Data Processing: 32-bit microprocessor enables fast data transmission and control with minimal latency, supporting real-time industrial automation applications.
- USB Connectivity: 2 USB 2.0 ports facilitate easy programming, data transfer, and device configuration.
- Robust Environmental Resilience: Operates reliably in temperatures ranging from -20°C to +60°C and resists electrical noise, vibration, and shock in harsh industrial environments.
- Backplane Integration: Seamlessly connects to the RXi controller backplane for power supply and data communication, eliminating the need for additional wiring.
- Diagnostic Capabilities: Real-time monitoring of communication status, I/O channel health, and power supply, with fault alerts sent to the controller for quick troubleshooting.
- Scalable Design: Supports further expansion of communication and I/O capabilities through additional modules, adapting to growing automation needs.
Function Characteristics
- Multi-Protocol Communication: Supports Ethernet (Modbus TCP/IP), RS-485 (Modbus RTU), and CANopen protocols for seamless integration with diverse industrial devices and systems.
- Comprehensive I/O Expansion: Adds 8 digital input channels, 8 digital output channels, 4 analog input channels, and 4 analog output channels to the RXi controller, meeting various data acquisition and control needs.
- High-Precision Analog I/O: 16-bit resolution for analog channels ensures accurate measurement and control of process parameters such as temperature, pressure, and flow.
- Hot-Swappable Installation: Allows module replacement without system shutdown, reducing maintenance downtime and improving operational efficiency.
- Real-Time Data Processing: 32-bit microprocessor enables fast data transmission and control with minimal latency, supporting real-time industrial automation applications.
- USB Connectivity: 2 USB 2.0 ports facilitate easy programming, data transfer, and device configuration.
- Robust Environmental Resilience: Operates reliably in temperatures ranging from -20°C to +60°C and resists electrical noise, vibration, and shock in harsh industrial environments.
- Backplane Integration: Seamlessly connects to the RXi controller backplane for power supply and data communication, eliminating the need for additional wiring.
- Diagnostic Capabilities: Real-time monitoring of communication status, I/O channel health, and power supply, with fault alerts sent to the controller for quick troubleshooting.
- Scalable Design: Supports further expansion of communication and I/O capabilities through additional modules, adapting to growing automation needs.
Application Scenarios
- Industrial Process Control: Expands RXi controller connectivity to control valves, pumps, and sensors in chemical plants, refineries, and water treatment facilities, enabling precise regulation of flow, pressure, and level parameters.
- Machine Automation: Integrates with servo motors, CNC machines, and robotic systems in manufacturing lines, supporting motion control and process synchronization for improved product quality.
- Building Automation: Connects HVAC systems, lighting controls, and security devices in commercial buildings, enabling centralized monitoring and energy management.
- Power Generation and Distribution: Interfaces with generator controls, switchgear, and SCADA systems in power plants, facilitating real-time monitoring and control of power generation and distribution processes.
- Automotive Manufacturing: Controls assembly line equipment, robotic arms, and testing instruments, ensuring efficient production and strict quality control.
- Food and Beverage Processing: Connects with packaging machines, temperature controllers, and ingredient dosing systems, complying with hygiene standards and ensuring process consistency.
- Mining and Heavy Industry: Operates in harsh environments to control conveyors, crushers, and heavy machinery, with robust design resisting dust, vibration, and extreme temperatures.
Additional Information
- Configuration Software: Compatible with GE Proficy Machine Edition software for module setup, protocol configuration, and I/O channel mapping.
- User Documentation: Refer to GE PACSystems RXi Controller Expansion Module Manual for detailed wiring diagrams, communication settings, and troubleshooting procedures.
- Warranty: 12-month standard warranty for new units; extended warranty and technical support available through authorized GE distributors.
- Replacement Compatibility: Direct replacement for legacy RXi controller expansion modules, with identical backplane pinout and communication protocol compatibility for seamless system upgrades.
- Maintenance Requirements: Perform quarterly inspections of communication ports and I/O terminals for loose connections or corrosion. Update module firmware annually to ensure compatibility with the latest controller software and security patches.
