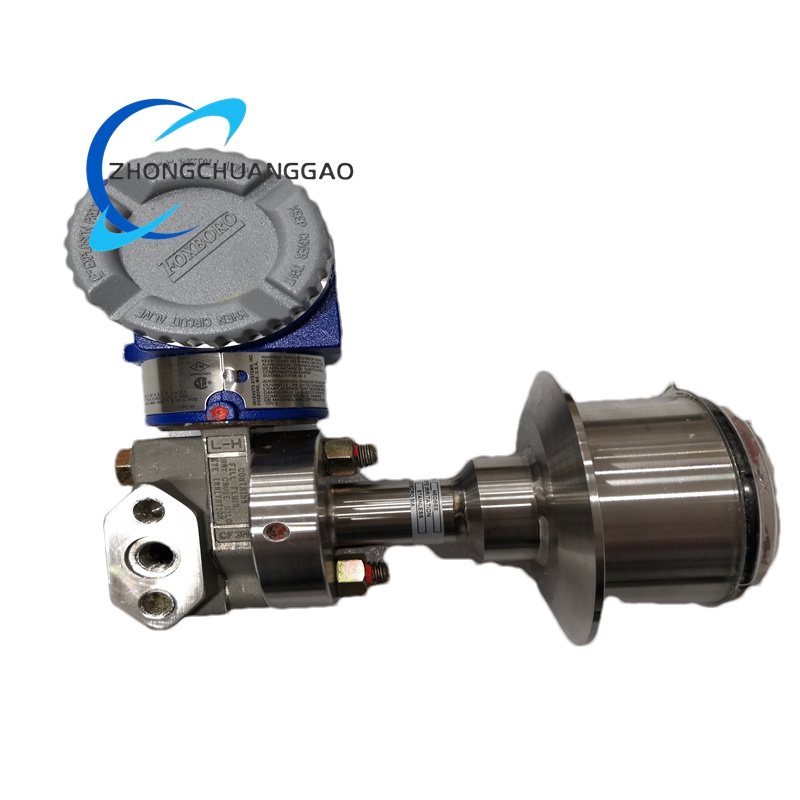

FOXBORO IDP10-AF1C01F Differential Pressure Transmitter

Product Short Description

Technical Specifications:

Measurement Range: 2 kPa (other configurations may support different ranges).
Accuracy: ±0.1% of the measured value, ensuring high precision.
Output Signal: 4-20 mA current output, compatible with standard industrial control systems.
Power Supply: 220 V AC (specific models may support 100-240 V AC).
Operating Temperature: -10°C to 150°C (14°F to 302°F).
Material: Stainless steel body for durability and corrosion resistance.
Communication Protocol: Supports HART protocol for remote configuration and monitoring.
Certifications: FM, CSA, and ATEX for use in hazardous environments.
Enclosure Rating: NEMA 4X and IP66, suitable for harsh industrial conditions.

Functional Features:

High Precision: Utilizes silicon strain gauge sensors for reliable measurements.
Modular Design: Available in traditional or low-profile structures for flexible installation.
Self-Diagnostic: Detects faults and provides alarm prompts for maintenance.
Remote Configuration: Enables setup and monitoring via HART protocol.
Safety Certifications: SIL2-certified options available for critical applications.
Multiple Mounting Options: Supports pipe, surface, or manifold mounting.

Application Scenarios:

Chemical Industry: Monitors pressure in reactors, pipelines, and storage tanks.
Oil and Gas: Tracks differential pressure in wells, separators, and compressors.
Power Generation: Controls steam, gas, and liquid pressure in turbines and boilers.
Water Treatment: Regulates pressure in filtration systems and pipelines.
Pharmaceuticals: Ensures precise pressure management in drug manufacturing.

Key Advantages:

Durability: Withstands extreme temperatures, vibrations, and electromagnetic interference.
Reliability: Proven in thousands of installations with minimal downtime.
Safety: Complies with global standards for hazardous environments.
Flexibility: Adaptable to diverse industrial requirements with customizable configurations.
