Product Short Description
Technical Specifications:
- Processor: ARM-based chipset operating at 500 MHz.
- Memory: 128 MB SDRAM + 128 MB flash storage.
- Input Voltage: 24 VDC.
- Power Consumption: Supports loads up to 400 A.
- Operating Temperature: -40°C to +70°C.
- Storage Temperature: -40°C to +85°C.
- Environmental Resistance: G3-class harsh environment certification, including vibration and electromagnetic interference (EMI) resistance.
- Physical Dimensions: Approximately 2 kg in weight.
Description

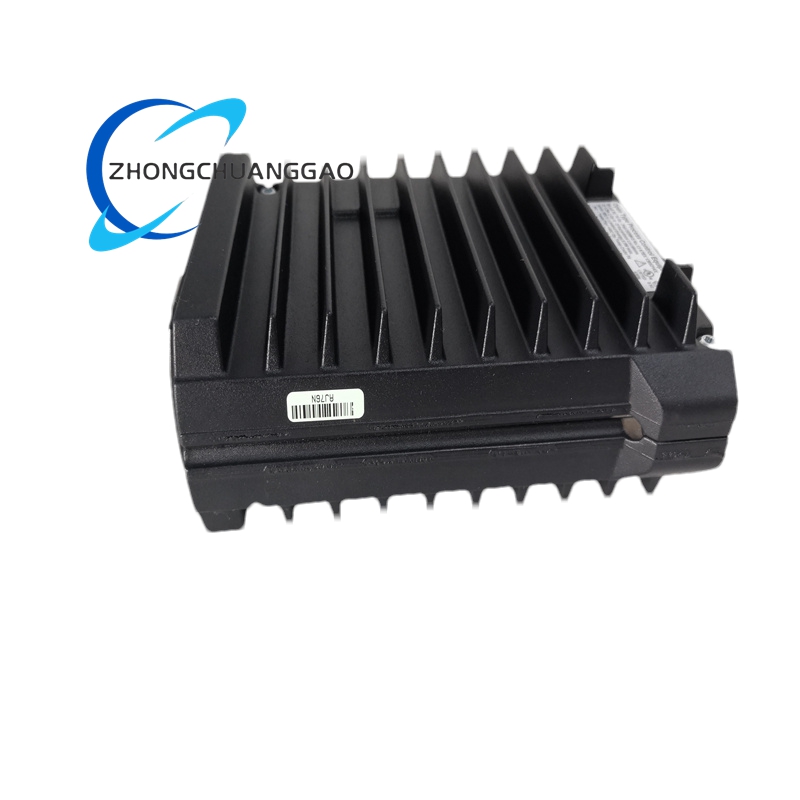

- Housing: Rugged press-cast aluminum casing for field installation without ventilation.
- Certifications: CE-certified for safety and compliance.
- Network Connectivity: Standard fiber-optic or copper 100 Mbps Ethernet cables.
- Fieldbus Support:
- 2 Mbps or 268 Kbps HDLC fieldbus via dedicated ports.
- Supports up to 128 compact/standard 200-series FBMs or a mixed configuration of 100-series and 200-series FBMs (≤64 100-series FBMs per port).

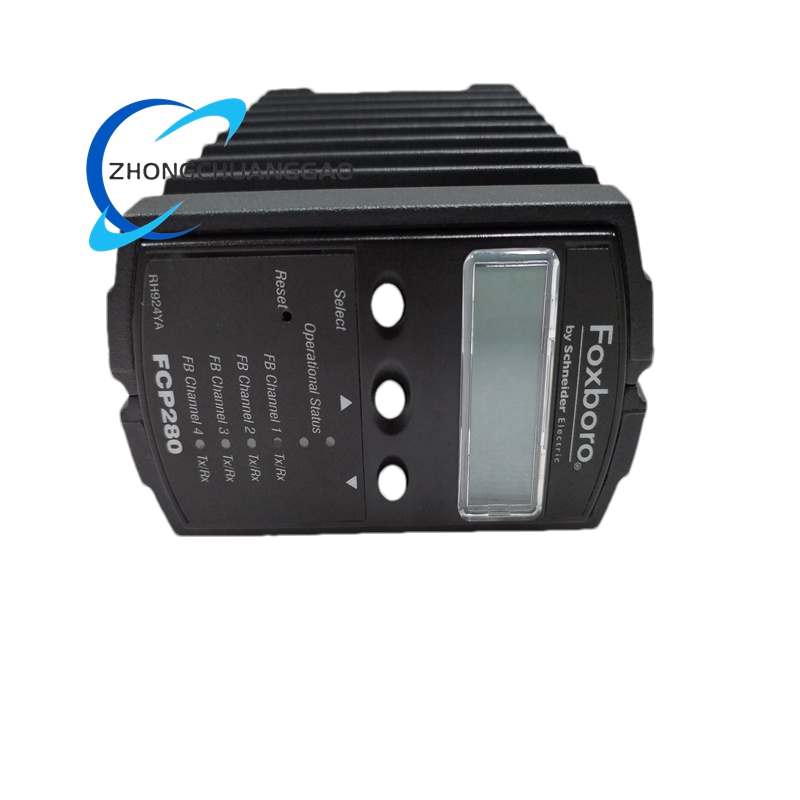

- Display: LCD screen showing module name, status, hardware revision, and OS version.
Functional Features:
- Control Capabilities:
- Executes regulation, logic, timing, and sequential control tasks.
- Supports PID algorithms and advanced control strategies (e.g., feedforward, nonlinear control).
- Function block processing speed: 16,000 blocks/second.
- Redundancy and Reliability:
- Patented fault-tolerant design with dual modules operating in parallel.
- Automatic failover with bit-by-bit verification to ensure continuous operation.
- Online image upgrade (OLUG/EOLUG) for firmware updates without interrupting control processes.
- Data Acquisition and Alarm Management:
- High-speed sampling for motor drive actuator control (MDACT).
- Alarm prioritization, time-delay deadbands, and time-suppressed alarms.
- Self-Hosted Mode: Operates independently using flash-stored checkpoint files even when the host workstation is offline.
- Time Synchronization: Optional GPS-based external time synchronization for precise timing.
- Diagnostic Tools: Built-in self-diagnostic capabilities and LED indicators for real-time health monitoring.
Application Scenarios:
- Petroleum and Natural Gas: Controls oil well drilling, pipeline transportation, and refining processes.
- Chemical Industry: Manages reactor control, material handling, and temperature/pressure monitoring.
- Power Generation: Regulates generator control and grid dispatch in power plants and substations.
- Pharmaceutical Industry: Ensures precise control of production equipment and processes to maintain product quality.
- Food and Beverage: Controls filling, temperature regulation, and packaging lines in production processes.
- Manufacturing: Automates production lines in automotive, electronics, and other industries.
Key Advantages:
- High Reliability: Fault-tolerant design with dual modules ensures uninterrupted operation.
- Scalability: Supports up to 128 FBMs for complex system requirements.
- Durability: Withstands harsh industrial environments, including extreme temperatures and vibrations.
- Efficiency: Optimizes processes to reduce energy consumption and improve productivity.
- Safety Compliance: Meets global standards (CE, UL, ATEX) for use in explosive atmospheres.
- Flexibility: Compatible with multiple protocols and devices, simplifying integration into existing systems.
