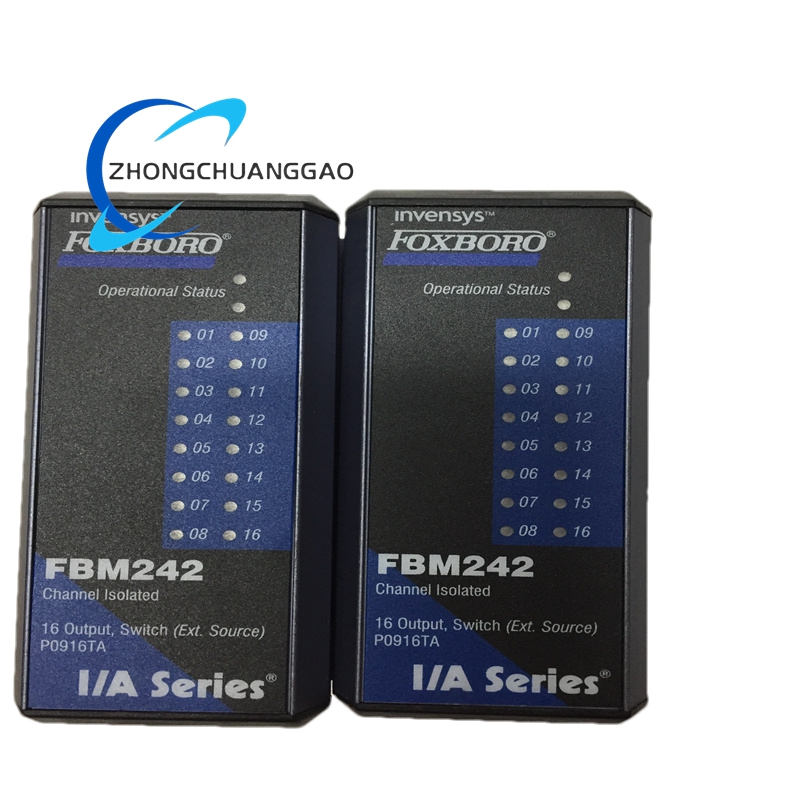

Foxboro FBM242 I/A Series 16-Channel Galvanically Isolated Externally Sourced Discrete Output Interface Module

Description

Function Features

• Full Channel Isolation and Strong Anti-Interference Capability

  Each of the 16 output channels adopts galvanic isolation technology, which completely avoids signal crosstalk between channels and prevents external electrical interference from affecting signal transmission integrity. When used with external excitation, it can also achieve group isolation, which effectively prevents cascading failures caused by short circuits of a single channel and ensures the stable operation of the entire system in complex industrial electromagnetic environments.

• Flexible Configurations and High Operational Safety

  The module can execute discrete I/O and ladder logic programs, and provides configurable options such as input filter time, fault-safe configuration, fault-safe fallback, and sustained or momentary outputs. The fault-safe configuration function can automatically switch to the preset safe state when the system malfunctions, avoiding dangerous situations such as equipment misoperation caused by signal loss, which significantly improves the safety of industrial control processes.

• Rugged Structure and Strong Environmental Adaptability

  The extruded aluminum shell gives the module excellent impact resistance and corrosion resistance, and its IP65-rated enclosure and -20 °C to +70 °C operating temperature range allow it to operate stably in harsh industrial environments such as high dust, large temperature fluctuations and water splashes. It fully meets the use requirements of G3-class harsh environments and maintains consistent performance without being affected by harsh conditions.

• Easy Installation and Low Maintenance Costs

  It supports standard DIN rail mounting, which can be quickly installed in control cabinets without complex modification work. The matching multiple termination assemblies can adapt to different load types and wiring needs. In addition, neither the module nor its termination assemblies require calibration during use, which saves the time and labor costs of regular calibration and simplifies the later operation and maintenance process.

Application Scenarios

• Oil and Gas Industry

  It is deployed in oil drilling platforms and natural gas processing plants. The module outputs discrete signals to control the on-off of pipeline solenoid valves, the start and stop of booster pumps and the action of emergency shut-off devices. Its fast switching speed ensures that emergency shut-off commands are executed instantly when abnormal pressure or leakage occurs in the pipeline, and the channel isolation design prevents signal interference from on-site high-power equipment, ensuring the safety and stability of oil and gas transportation and processing processes.

• Chemical Industry

  It is integrated into chemical production workshops such as resin synthesis and chemical reagent preparation. It controls the switching of reaction kettle feeding valves, the operation of discharge pumps and the activation of exhaust gas treatment devices. The fault-safe configuration function of the module can immediately cut off the feeding signal when the reaction temperature exceeds the safe range, avoiding dangerous accidents such as reactor overpressure and chemical leakage, and ensuring the safety of the production process.

• Power Industry

  It is widely used in thermal power plants and substations, connecting to the control circuits of generators, transformers and switchgear. It controls the on-off of auxiliary cooling pumps, the switching of backup power supply branches and the operation of alarm devices. The module maintains communication through the redundant fieldbus path. Even if one communication path fails, it will not affect the transmission of control signals, ensuring the continuous and stable operation of power generation and power transmission equipment.

• Automotive Manufacturing Industry

  It is applied in automobile assembly lines and parts stamping workshops. It outputs discrete signals to control the clamping and releasing of welding fixtures, the operation of conveyor line switching mechanisms and the start of stamping equipment safety interlocks. The fast switching speed of less than 1 millisecond ensures the coordination and efficiency of each station on the assembly line, and the strong anti-interference ability prevents signal errors caused by on-site welding equipment and large motors, improving the accuracy of automobile assembly and parts processing.

• Pharmaceutical Industry

  It is installed in sterile pharmaceutical production lines and pharmaceutical packaging lines. It controls the start and stop of filling machines, the switching of material conveying valves and the operation of packaging sealing devices. The module’s high reliability and stable output performance ensure that each link of the pharmaceutical production process strictly complies with GMP standards. The isolation design prevents cross-contamination risks caused by equipment malfunctions due to signal interference, and guarantees the stability of drug quality.
