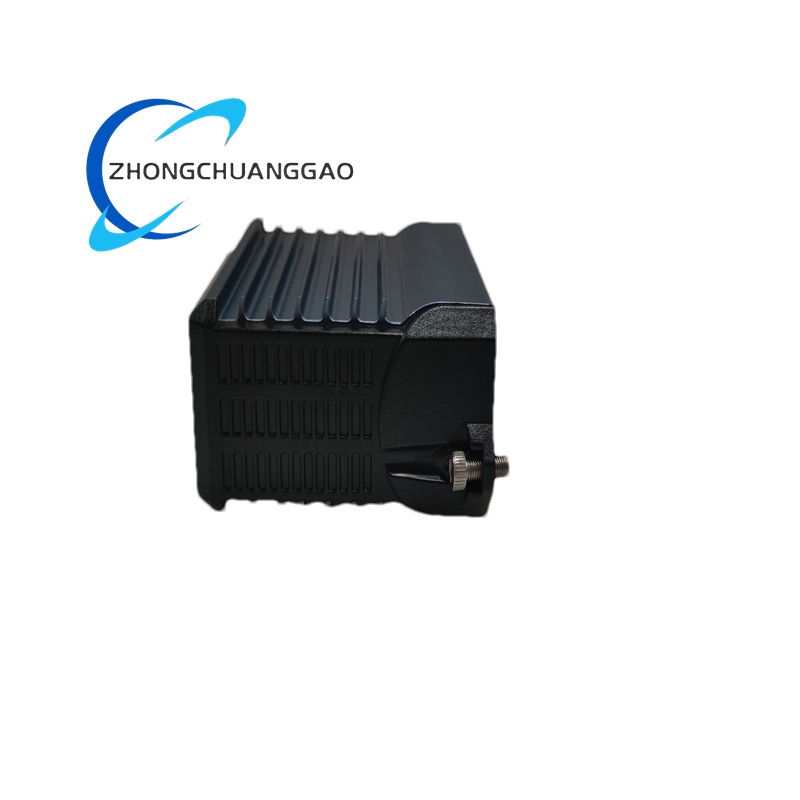

Product Short Description
Technical Specifications:
- Input Channels: 32 isolated discrete input channels.
- Input Type: 2-wire DC voltage source inputs.
- Voltage Range: 24V DC (±5% tolerance).
- Current Consumption: 2.2mA (typical) at 30V DC input.
- Response Time: <100 ms (dependent on signal type and system configuration).
- Communication: Redundant 2 Mbps module fieldbus for integration with FCM or FCP controllers.
- Isolation: Channel-to-channel and channel-to-ground isolation.
- Operating Temperature: -40°C to +70°C.
- Storage Temperature: -40°C to +85°C.
- Humidity: 5% to 95% RH (non-condensing).
- Physical Dimensions: Approximately 10.2 cm (H) x 11.4 cm (W, including mounting ears) x 4.5 cm (D) x 10.4 cm (D).
- Weight: 0.5 kg.
- Certifications: ATEX (hazardous areas), CE, UL.
Description
Functional Features:
- High Reliability: Designed for stable operation in extreme temperatures, vibration, and electromagnetic interference.
- Fast Response: Captures and processes input signals in real-time for timely control actions.
- Redundancy Support: Optional redundant configuration for fault-tolerant operation.
- Diagnostic Capabilities: LED indicators for module status and channel activity.
- Modular Design: Hot-swappable for easy maintenance without system shutdown.
- Standardized Interfaces: Compatible with Foxboro I/A Series and other industrial protocols.
Application Scenarios:
- Process Control: Monitors switch states, valve positions, and sensor signals in chemical plants, refineries, and power stations.
- Power Generation: Manages turbine control, boiler feedwater systems, and grid synchronization.
- Oil & Gas: Controls pipeline pressure, pump operations, and separation processes in upstream/downstream operations.
- Water Treatment: Adjusts flow rates, pH levels, and chlorine dosing in municipal/industrial facilities.
- Manufacturing: Automates production lines, robotics, and quality control systems.
- Environmental Monitoring: Deploys in meteorological stations or pollution tracking systems for real-time data collection.
Key Advantages:
- Scalability: Modular architecture supports system growth without downtime.
- Cost-Effective: Reduces installation and maintenance costs through integrated design.
- Safety Compliance: Meets ATEX, CE, and UL standards for hazardous environments.
- Energy Efficiency: Optimizes power consumption for lower operational costs.
