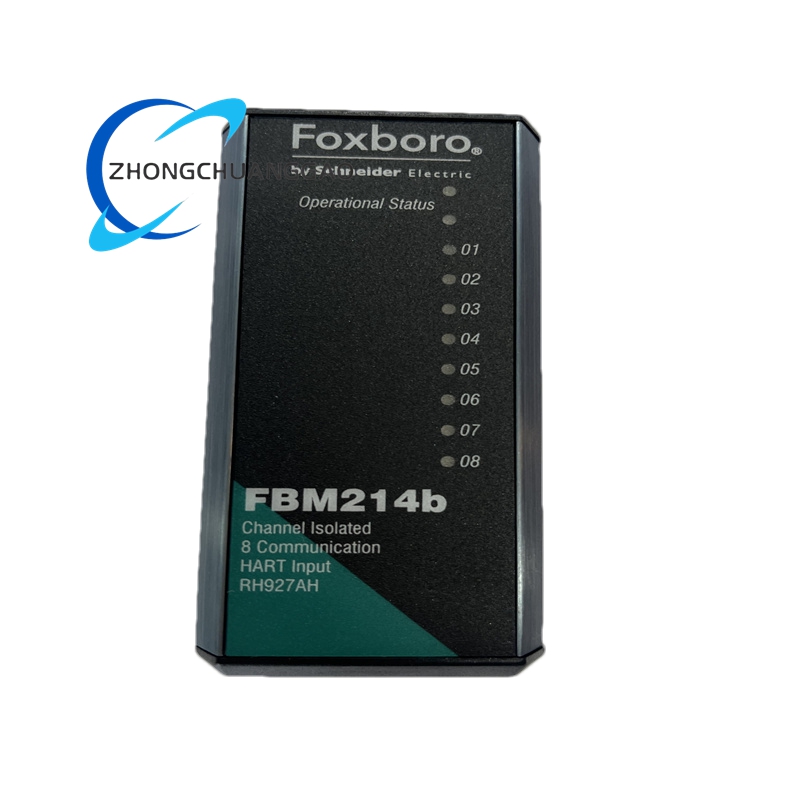

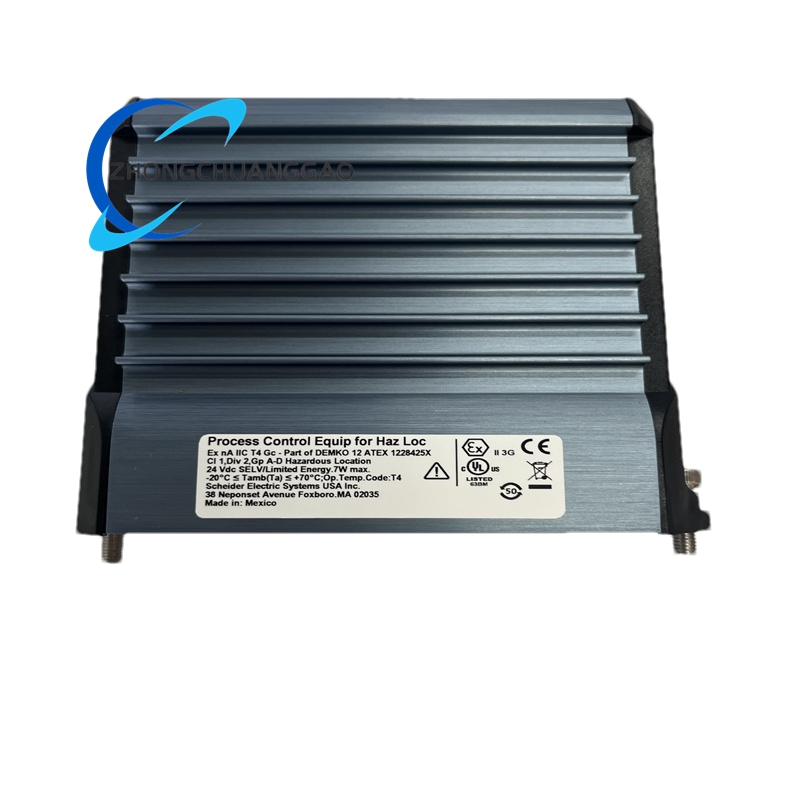

Foxboro FBM214 Controller Module

Product Short Description

Technical Specifications:

Controller Type: DCS controller module for automation tasks.
Signal Types: Supports analog (4-20 mA, 0-10 V) and digital signals.
Accuracy: ±0.1% of full scale for analog inputs.
Isolation: Channel-to-channel and channel-to-ground isolation (600 V AC for 1 minute).
Response Time: <100 ms (dependent on signal type and system configuration).
Operating Temperature: -40°C to +70°C (-40°F to +158°F).
Storage Temperature: -40°C to +85°C (-40°F to +185°F).
Humidity: 5% to 95% RH (non-condensing).
Physical Dimensions: Compact DIN-rail or panel-mountable design.
Weight: Approximately 0.3–1 kg (varies by configuration).
Certifications: CE, ATEX (for hazardous areas), CSA, UL.

Functional Features:

High Reliability: Built with durable materials to withstand vibration, shock, and electromagnetic interference.
Real-Time Processing: Handles data acquisition, logic control, and communication simultaneously.
Flexible Configuration: Supports multiple signal types and ranges via software settings.
Diagnostics: LED indicators for power, signal status, and module health.
Hot-Swappable: Enables replacement without disconnecting field wiring or powering down the system.
Network Integration: Compatible with Foxboro’s I/A Series fieldbus for seamless communication.
Self-Powered: Derives power from the fieldbus, eliminating external power requirements.

Application Scenarios:

Process Control: Monitors and regulates pressure, temperature, and flow in chemical plants, refineries, and power stations.
Power Generation: Manages boiler feedwater valves, turbine control, and grid synchronization.
Water Treatment: Adjusts chlorine dosing, pH levels, and flow rates in municipal water systems.
Oil and Gas: Controls pipeline pressure, valve positions, and separation processes in upstream/downstream operations.
Metallurgy: Optimizes parameters in steel and aluminum production for quality control.
Pharmaceuticals: Ensures precise control in sterile manufacturing and batch processing.

Key Advantages:

Robust Design: Operates reliably in extreme temperatures (-40°C to +85°C) and harsh industrial environments.
Hazardous Area Compliance: ATEX certification enables use in explosive atmospheres.
Low Maintenance: Self-diagnostics and rugged construction reduce downtime.
Scalability: Supports modular expansion to meet evolving automation needs.
Cost-Effective: Reduces installation and maintenance costs through integrated design.
