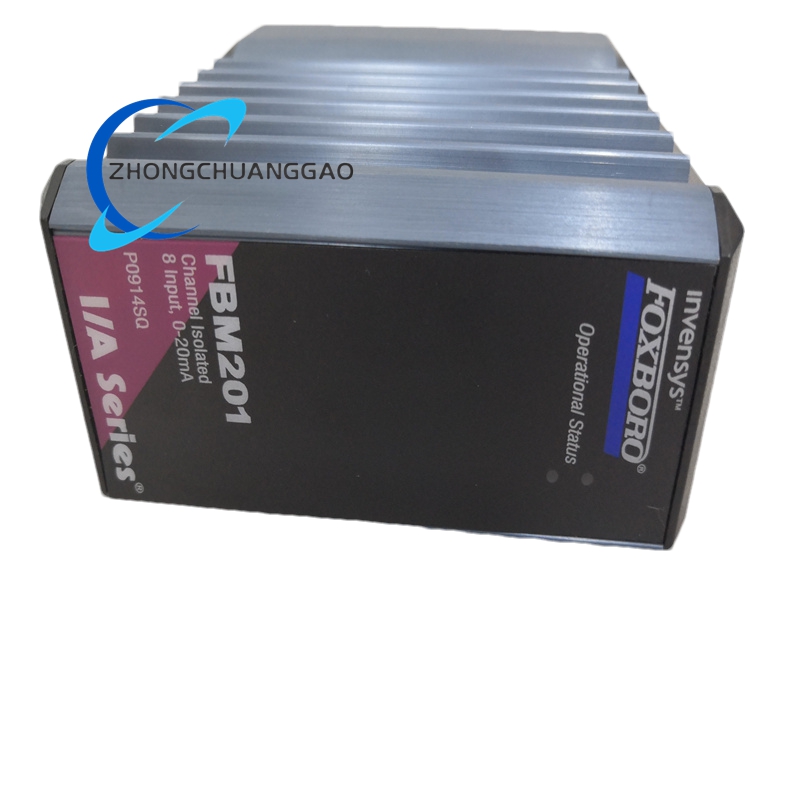

Product Short Description
Technical Specifications:
- Input Channels: 8 independent analog input channels.
- Input Types:
- Current: 0-20 mA DC (4-20 mA compatible).
- Voltage: 0-100 mV DC, 0-5 V DC, 0-10 V DC.
- Accuracy: ±0.03% of full scale (includes linearity).
- Resolution: 16-bit Sigma-Delta conversion.
- Sampling Rate: 25 ms per channel (configurable).
- Isolation: Each channel is fully isolated from others and ground, withstanding 600 V AC between channels or ground for 1 minute.
- Common-Mode Rejection: >100 dB at 50/60 Hz.
Description
- Environmental:
- Operating Temperature: -40°C to +70°C (-40°F to +158°F).
- Storage Temperature: -40°C to +85°C (-40°F to +185°F).
- Humidity: 5% to 95% RH (non-condensing).
- Altitude: -300 m to +12,000 m (-1,000 ft to +40,000 ft).
- Physical:
- Dimensions: 10.4 cm (L) × 4.5 cm (W) × 11.4 cm (H).
- Weight: 0.284 kg (10 oz).
- Enclosure: Rugged ABS or aluminum housing.
- Communication:
- Fieldbus: Redundant 2 Mbps module fieldbus (compatible with FCM/FCP controllers).
- Protocols: Supports Modbus (varies by version).
Functional Features:
- High Precision: Sigma-Delta ADC ensures accurate signal conversion with minimal noise.
- Configurable: Adjustable integration time, conversion rate, and alarm thresholds.
- Channel Isolation: Prevents cross-talk and enhances system reliability.
- Diagnostics: LED indicators for module status and fieldbus health.
- Hot-Swappable: Can be replaced without disconnecting field wiring or power.
- Compact Design: DIN-rail or panel-mountable for space-efficient installations.
Application Scenarios:
- Process Control: Monitoring temperature, pressure, and flow in petrochemical, refining, and power generation.
- Water Treatment: pH, turbidity, and dissolved oxygen measurement.
- Manufacturing: Equipment status monitoring and quality control.
- Pharmaceuticals: Sterile process control and compliance validation.
Key Advantages:
- Robustness: Withstands extreme temperatures, vibration, and electromagnetic interference.
- Flexibility: Supports multiple input types and ranges for diverse applications.
- Ease of Integration: Compatible with Foxboro I/A Series DCS and third-party systems via standard protocols.
- Low Maintenance: Self-diagnostics and modular design reduce downtime.
Industry-Specific Use Cases:
- Oil and Gas: Pipeline pressure monitoring and valve control.
- Power Plants: Generator winding temperature supervision.
- Chemical Plants: Reactor temperature and pressure regulation.
- Municipal Water Systems: Chlorine dosing and flow control.
