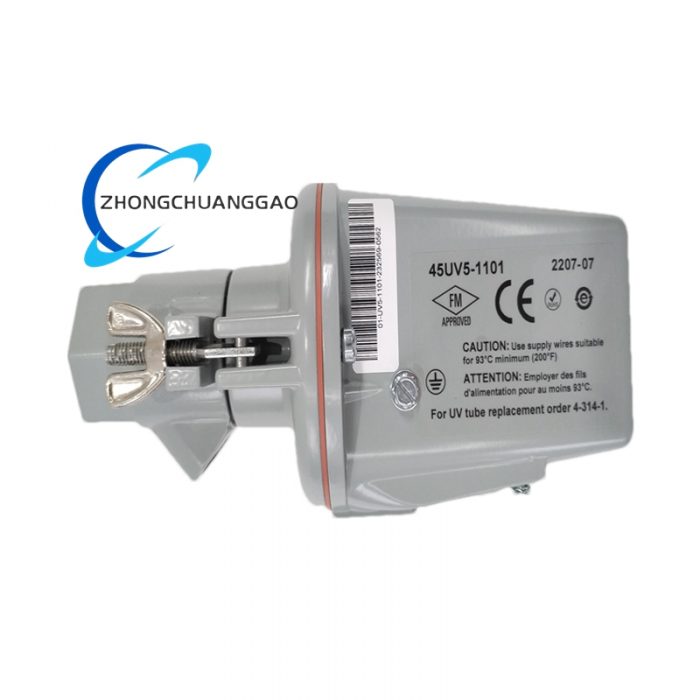

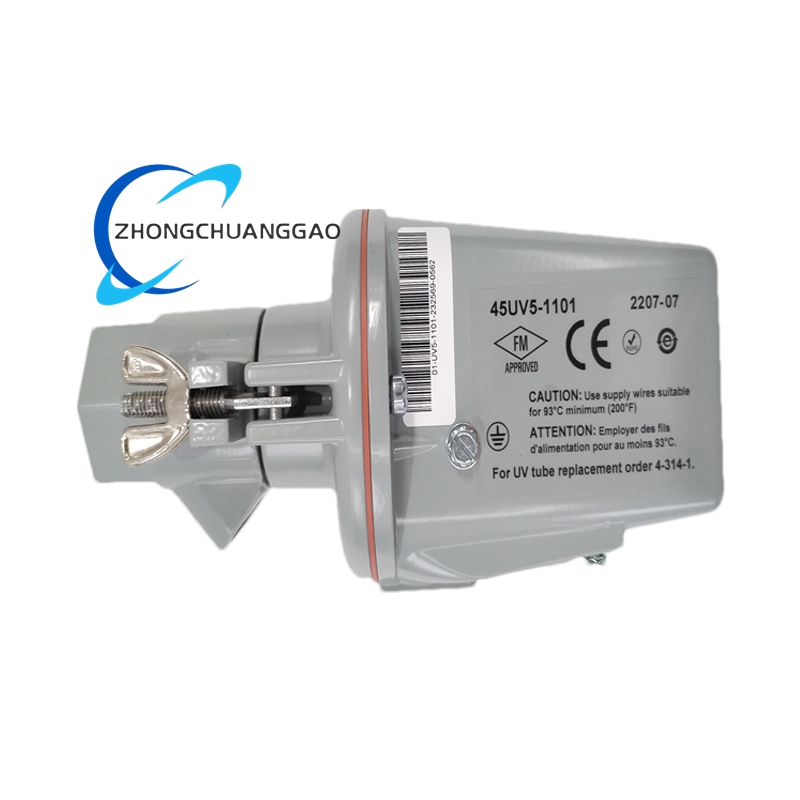

Product Short Description
Technical Specifications
-
Detection Technology: Ultraviolet (UV) radiation sensing
-
Spectral Response: UV-C band, 185–260 nm
-
Sensitivity: 0.2 mW/cm²
-
Response Time: < 2 s
-
Field of View: 90° cone, 0–15 ft (0–4.6 m) effective range
-
Output Signal: Pulsed flame signal via two-wire cable (interrupted for self-check)
-
Power Supply: 4 VA AC, 50 Hz, delivered from Fireye 25SU3/25SU5 controller
-
Mounting Thread: 1 in BSP (male)
Description
-
Housing: Die-cast aluminum, IP66 / NEMA 4X
-
Operating Temperature: –40 °C to +85 °C
-
Storage Temperature: –40 °C to +85 °C
-
Dimensions: 216 mm × 102 mm × 102 mm (8.5 × 4.0 × 4.0 in)
-
Weight: 1.7 kg (3.75 lb)
Functional Features
-
Self-Checking Mechanism: Internal shutter periodically blocks UV tube for automatic fault verification, minimizing false alarms
-
Broad Fuel Compatibility: Detects flames from natural gas, propane, methane, butane, kerosene, light distillates, and diesel
-
Rugged Construction: Sealed aluminum body with oil-resistant gaskets and quartz lens withstands shock, vibration, and corrosive atmospheres
-
Hinged Mounting Bracket: Allows quick removal for lens cleaning without dismounting the scanner
-
Fail-Safe Output: Loss-of-flame signal triggers immediate shutdown of connected burner management system
-
Front-Window Quartz Lens: Maximizes UV transmission and resists thermal shock
Application Scenarios
-
Power Generation: Utility boilers, package boilers, and cogeneration units
-
Oil & Gas: Refinery furnaces, pipeline heaters, and flare stacks
-
Chemical & Petrochemical: Ethylene crackers, reformers, and process heaters
-
Metals & Mining: Heat-treat furnaces, kilns, and smelters
-
Waste Management: Municipal and hazardous-waste incinerators
-
Food & Beverage: Industrial ovens, dryers, and cookers
