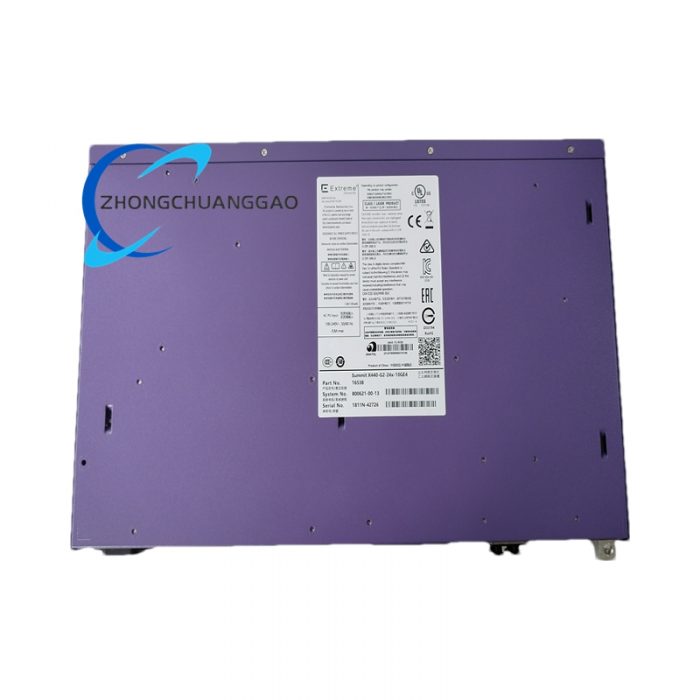

Extreme X440-24X-10G

Description

• Jumbo Frame: Supports a maximum packet size of 9216 bytes (jumbo frame).
• QoS: 8 QoS egress queues per port, with ingress and egress bandwidth policing/rate limiting per flow/ACL, and the rate limiting granularity is 8 kbps.

• High – performance Switching: It adopts non – blocking hardware technology, ensuring high – speed data forwarding without packet loss, and all ports including 2 x 10GBASE – X SFP+ uplinks support line – rate operation.
• Flexible Port Upgrades: All X440 – G2 base models are equipped with 4 upgradeable 1Gbe ports, which can be upgraded to 10Gbe Ethernet via a simple software license, enabling administrators to increase switch uplink speeds without replacing the entire switch.
• Stacking Capability: The ExtremeXOS SummitStack – V capability allows up to eight X440 – G2 switches to be stacked together via two of the native X440 – G2 stacking ports, using standard 10G Ethernet cabling and optics technologies, with a long – distance stacking connectivity of up to 40 km. It can also be stacked with other X450 – G2, X460 – G2, X670 – G2, and X770 switches.
• PoE Support: Supports IEEE 802.3at PoE – plus and IEEE 802.3af PoE, enabling the connection of Ethernet – powered devices such as wireless access points, IP phones, and security cameras.
• Comprehensive Security: Supports role – based policy capabilities, provider bridges, bidirectional access control lists, and granular bandwidth control, enabling fine – grained control over traffic flows and access to specific network services and applications.
• Easy Management: It can be managed through Extreme Cloud, Extreme Networks’ innovative single – pane subscription – based management solution, and also supports role – based policies for controlled access to specific network applications.

• Campus Networks: As a campus edge switch, it can be used to connect desktop computers, wireless access points, IP phones, etc., providing high – speed and reliable network access for campus users.
• Small Data Centers: Suitable for small – scale data centers, providing high – performance switching and routing functions, and supporting the connection of servers, storage devices, and other equipment.
• Enterprise Branch Offices: Can be used in enterprise branch offices to build local area networks, meeting the network needs of office employees for data transmission, office applications, and Internet access.
