EMERSON PR6426/010-140 + CON021/916-200 – Eddy-Current Vibration & Displacement System

Description

1. Technical Specifications

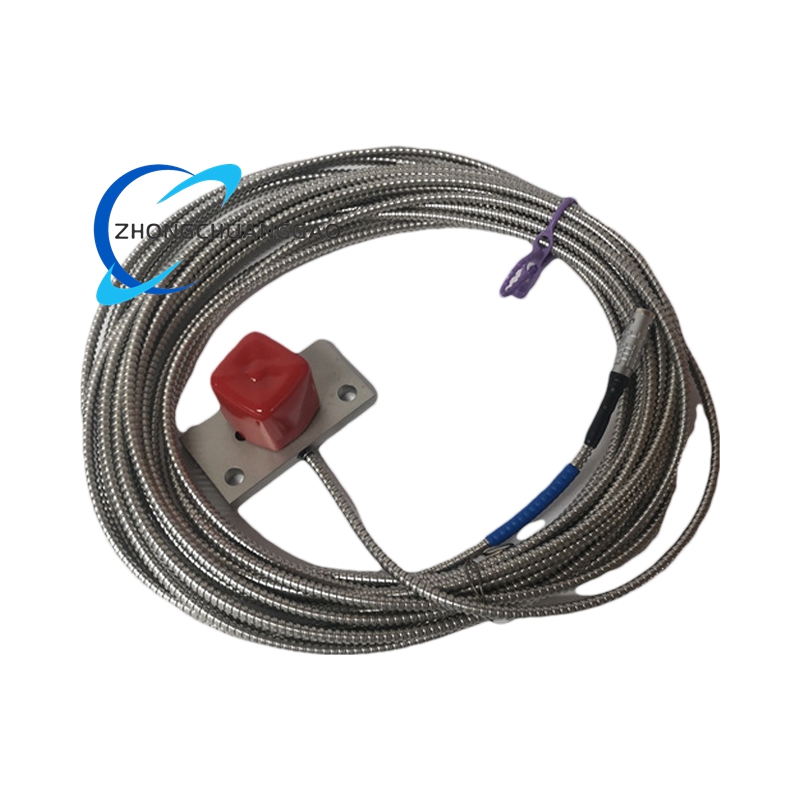

   Probe PR6426/010-140
   – Measuring range: 0–2 mm displacement
   – Frequency response: 0–10 kHz
   – Sensor length: 140 mm; M10×1 thread mount
   – Body material: stainless steel, EMI-shielded cable
   – Operating temperature: –40 °C … +120 °C

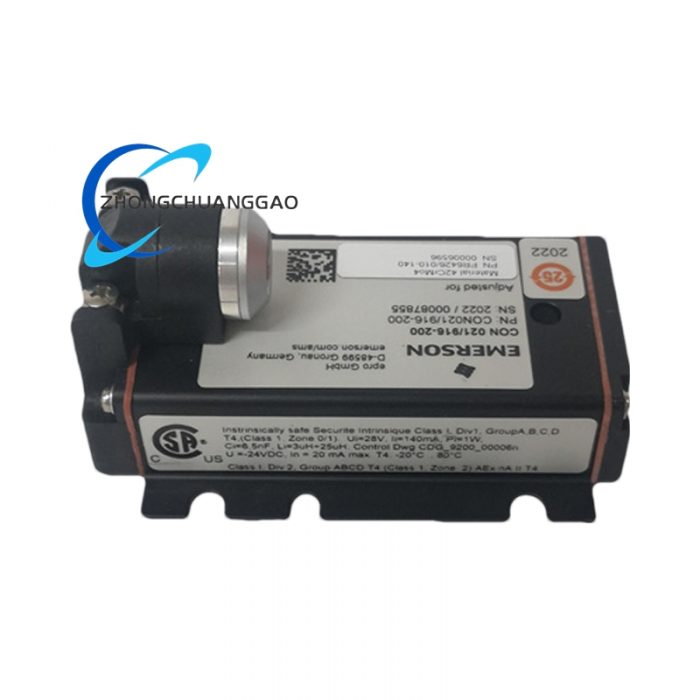

   Driver CON021/916-200
   – Power supply: 24 VDC ±10 %
   – Outputs: 4–20 mA (linear), Modbus RTU digital, alarm relays
   – Channels: 2 (supports dual probes)
   – Temperature: –20 °C … +60 °C
   – Mounting: DIN-rail, IP20 housing
2. Key Features
   • Micron-level accuracy for predictive maintenance
   • Stainless-steel probe withstands high vibration & temperature
   • Driver hot-swappable, front LED diagnostics
   • Cable lengths 4–10 m selectable
   • CE & ISO 10816 compliant
3. Typical Applications
   – Steam & gas turbines: rotor eccentricity and blade clearance
   – Centrifugal pumps & compressors: shaft vibration monitoring
   – Gearboxes: bearing wear and misalignment detection
   – Petrochemical plants: critical rotating equipment protection
   – Power generation: generator end-winding displacement
