Product Short Description
Technical Specifications:
- Input Channels:
- 8 analog inputs for vibration/eccentricity signals
- 2 digital inputs for status monitoring
- Output Channels:
- 2 analog outputs for control signals
- 2 digital outputs for alarms/triggers
- Measurement Accuracy: ±0.1% of full scale
- Sampling Rate: Up to 100 kHz for high-frequency vibration analysis
- Storage Capacity: 2 GB internal memory for data logging
Description
- Communication Interfaces:
- RS-232/RS-485
- Ethernet
- Modbus, DF1, J1939, CANopen protocols
- Display: 7-inch color touchscreen for local configuration and monitoring
- Power Supply: 100–240 VAC, 47–63 Hz, 15W max consumption
- Environmental Rating: IP30 enclosure, operating temperature -40°C to +70°C
- Dimensions: 442.9 mm × 270.3 mm × 88.9 mm (17.3″ × 10.7″ × 3.5″)
- Weight: 12 kg
Functional Features:

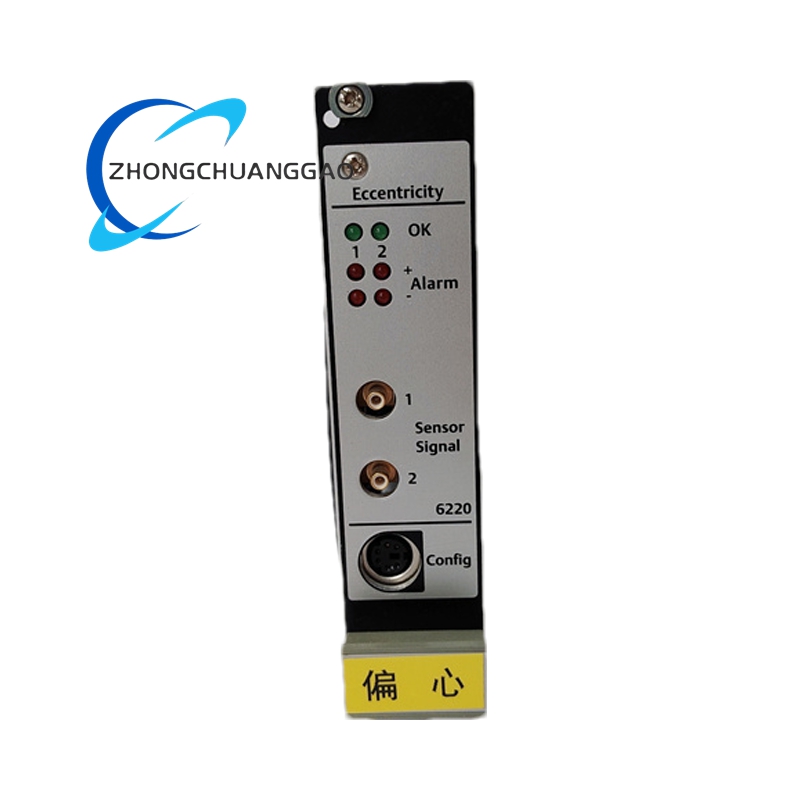

- Eccentricity Measurement:
- Detects bearing misalignment and shaft runout in real time.
- Measures eccentricity values with micro-level precision.
- Vibration Monitoring:
- Analyzes frequency spectra to identify imbalance, misalignment, or looseness.
- Supports time-waveform and orbit plot analysis.
- Health Assessment:
- Combines eccentricity and vibration data to evaluate machinery condition.
- Predicts potential failures using trend analysis.
- Alarm System:
- Configurable thresholds for eccentricity, vibration, and temperature.
- Generates immediate alerts via digital outputs or network messages.
- Data Logging & Analysis:
- Records long-term trends for predictive maintenance.
- Supports export to CSV/Excel for further analysis.
- Remote Monitoring:
- Enables web-based access for centralized control room integration.
- Compatible with DCS/SCADA systems via standard protocols.
- Reliability:
- Designed for 24/7 operation in harsh industrial environments.
- Redundant power inputs and self-diagnostic functions.
Application Scenarios:
- Power Generation:
- Monitors turbines, generators, and pumps in thermal/hydro plants.
- Oil & Gas:
- Protects compressors and centrifugal pumps in upstream/downstream operations.
- Metallurgy:
- Assesses rolling mills and electric motors in steel production.
- Renewable Energy:
- Optimizes wind turbine gearboxes and hydraulic systems.
- Chemical Processing:
- Safeguards reactors and agitators in hazardous environments.
- Water Treatment:
- Controls pumps and aerators in municipal/industrial facilities.
Advantages:
- Precision: Sub-micron eccentricity detection ensures early fault detection.
- Integration: Seamlessly connects with DCS, PLCs, and historians.
- Cost-Effectiveness: Reduces unplanned downtime by 30–50% through proactive maintenance.
- Scalability: Supports up to 64 channels in multi-module configurations.
- Compliance: Meets API 670, ISO 10816, and IEEE standards for machinery protection.
