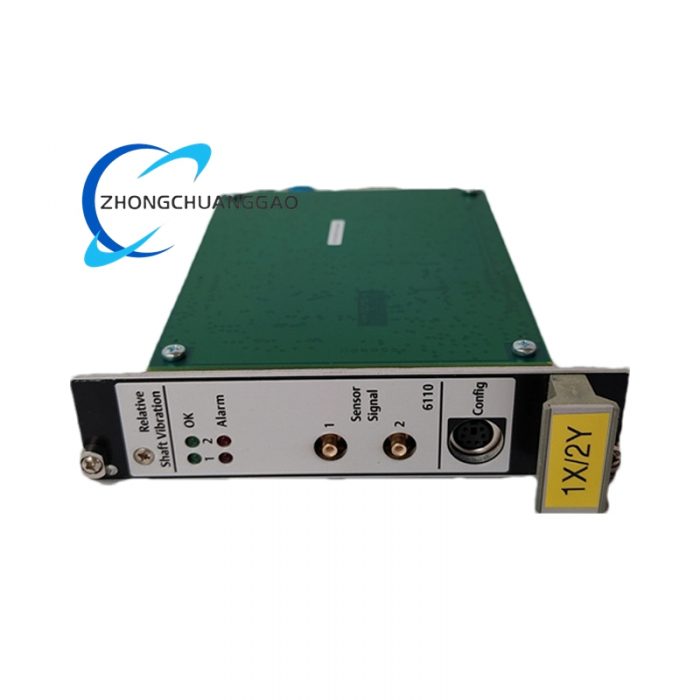

EMERSON A6110 – Dual-Channel Shaft Relative Vibration Monitor

Product Short Description

Product Identity
Device type: 1-slot, 3U plug-in module for the AMS 6500 Machinery Health System
Part number variants: A6110 / 9199-00001

Technical specifications

Channels: 2 independent or combined channels
Sensor compatibility: EPRO eddy-current probes PR6422, PR6423, PR6424, PR6425 and matching drivers CON 011/91, 021/91, 041/91
Input range: 0 … –22 VDC differential, input impedance > 100 kΩ

Frequency response: user-selectable low-cut 1 Hz or 5 Hz, high-cut 50 Hz … 2 kHz
Resolution: 0.001 mm/s (display)
Accuracy: ±0.25 % full scale, linearity better than ±0.1 %
Measurement modes: zero-to-peak, peak-to-peak, Smax (maximum of both channels), RMS
Standards compliance: API 670, DIN 45670, VDI 2059
Analog outputs: 0/4–20 mA or 0–10 V, front and rear buffered proportional outputs
Relay outputs: via companion A6740 module, configurable alarm and trip set-points
Diagnostics: continuous self-test of hardware, power, sensor loop and cable integrity
Hot-swap: fully supported under power
Power: 24 VDC ±10 %, 3 W typical
Operating temperature: 0 °C … +70 °C (industrial); –40 °C … +85 °C (option)
Dimensions: 3U single-slot, 160 mm × 100 mm × 30 mm

Functional highlights

Dual-channel flexibility allows radial, axial or tangential vibration measurement on a single shaft section
Remote limit multiplier and trip bypass via Modbus or AMS Suite
High immunity to EMI through galvanic isolation of sensor supply and system power
Compact 3U footprint halves cabinet space versus legacy 6U four-channel cards

Applications

Steam turbines, gas turbines, compressors, hydro turbines for continuous shaft vibration monitoring and protection
Predictive maintenance programs using AMS software for early fault detection and scheduling of repairs
Safety shutdown systems where vibration relays (A6740) initiate alarms or trips to safeguard machinery
