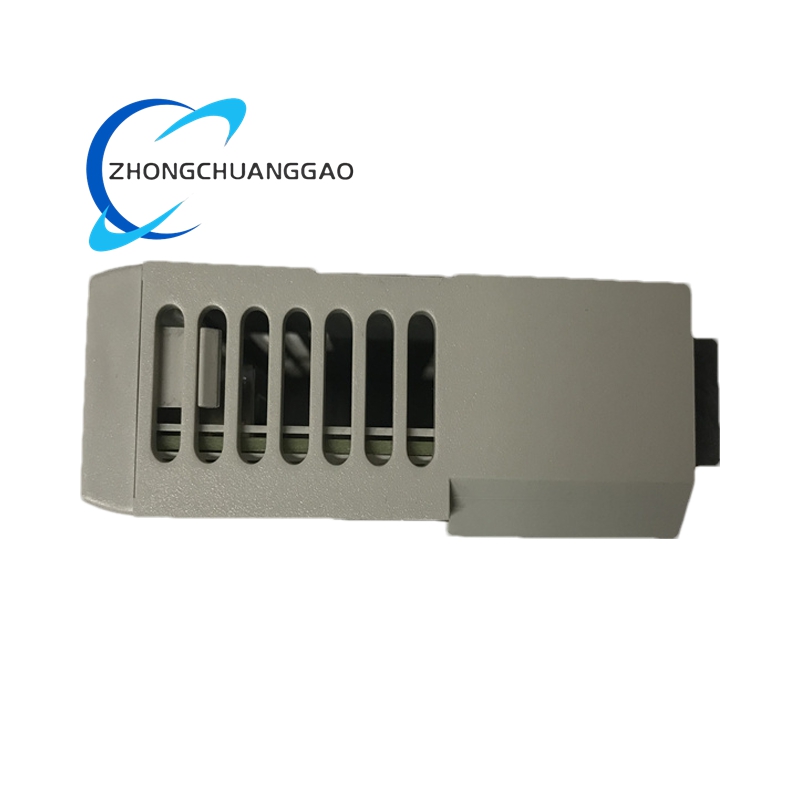

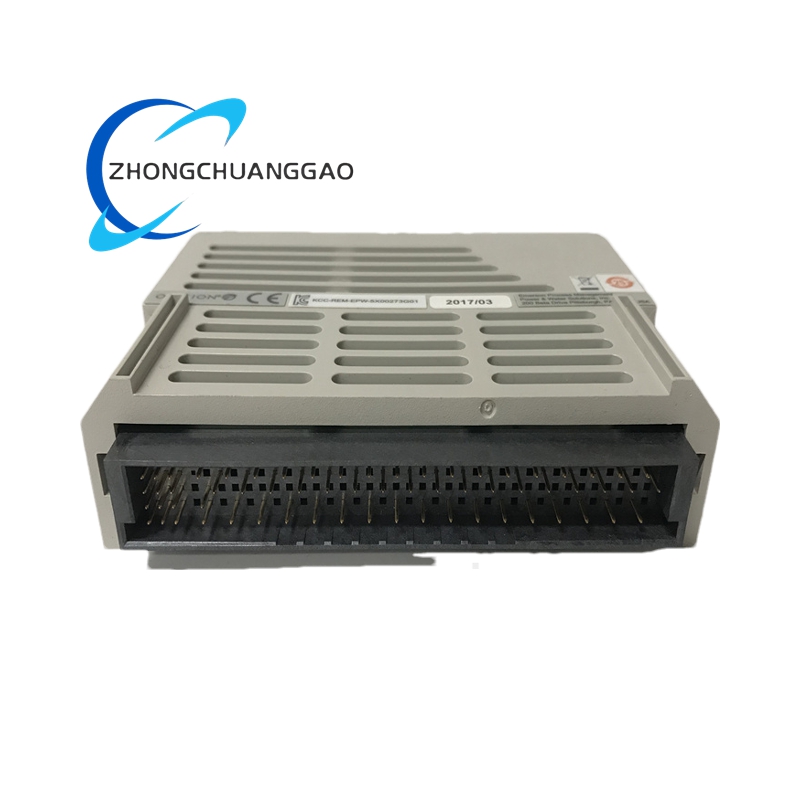

EMERSON 5X00273G01

Product Short Description

Technical Specifications

Power Supply: 5V DC (from Ovation system backplane); typical power consumption ≤ 2.5W
Input Type: Analog current (4–20 mA DC) or analog voltage (0–10 V DC)
Number of Input Channels: 8 independent, isolated channels
Input Isolation: Channel-to-channel isolation (500V AC rms, 1 minute); channel-to-backplane isolation (1500V AC rms, 1 minute)
Measurement Accuracy:
- For 4–20 mA: ±0.05% of full scale (FS)
- For 0–10 V: ±0.07% of FS
Sampling Rate: 10 samples per second per channel
Operating Temperature Range: 0°C – 60°C
Storage Temperature Range: -40°C – 85°C
Operating Humidity: 5% – 95% RH (non-condensing, no dew)
Physical Dimensions: 160 mm × 100 mm × 30 mm (W × H × D) – compatible with Ovation system rack mounting
Weight: 220 g
Certifications: UL 508, CSA C22.2 No. 142, IEC 61010-1, CE (EN 61326-1)

Functional Features

High-Precision Signal Acquisition: Delivers ultra-low measurement error for analog current/voltage signals, ensuring reliable data input for process control logic.
Channel Isolation: Independent isolation between channels and backplane prevents cross-talk and protects the module from voltage surges in the field, enhancing system safety.
Self-Diagnostic Capabilities: Built-in fault detection for open circuits, short circuits, and over-range signals; sends real-time fault alerts to the Ovation DCS for quick troubleshooting.
Seamless System Integration: Designed specifically for Ovation DCS, supports automatic module recognition and configuration via the Ovation Control Studio software, reducing setup time.
Rugged Industrial Design: Uses industrial-grade components and conformal coating options (optional) to resist dust, moisture, and electromagnetic interference (EMI), suitable for harsh process environments.
Wide Compatibility: Works with common field sensors (e.g., pressure transmitters, temperature transmitters, flow meters) that output 4–20 mA or 0–10 V signals.

Application Scenarios

Power Generation: Deployed in thermal power plants, nuclear power plants, and renewable energy (wind/solar) facilities to collect signals from steam pressure transmitters, turbine temperature sensors, and generator current transducers.
Oil & Gas: Used in upstream (wellheads), midstream (pipelines), and downstream (refineries) operations to monitor flow rates, pipeline pressure, and reactor temperature.
Chemical & Petrochemical: Applied in chemical reactors, distillation columns, and storage tanks to measure process parameters like pH levels, chemical concentration, and tank level.
Water & Wastewater Treatment: Integrates with level sensors, flow meters, and
pH transmitters to monitor water intake, treatment process, and effluent discharge parameters.
Pulp & Paper: Used in paper mills to collect signals from roller temperature sensors, pulp consistency transmitters, and drying oven humidity sensors for process control.
