Description
-

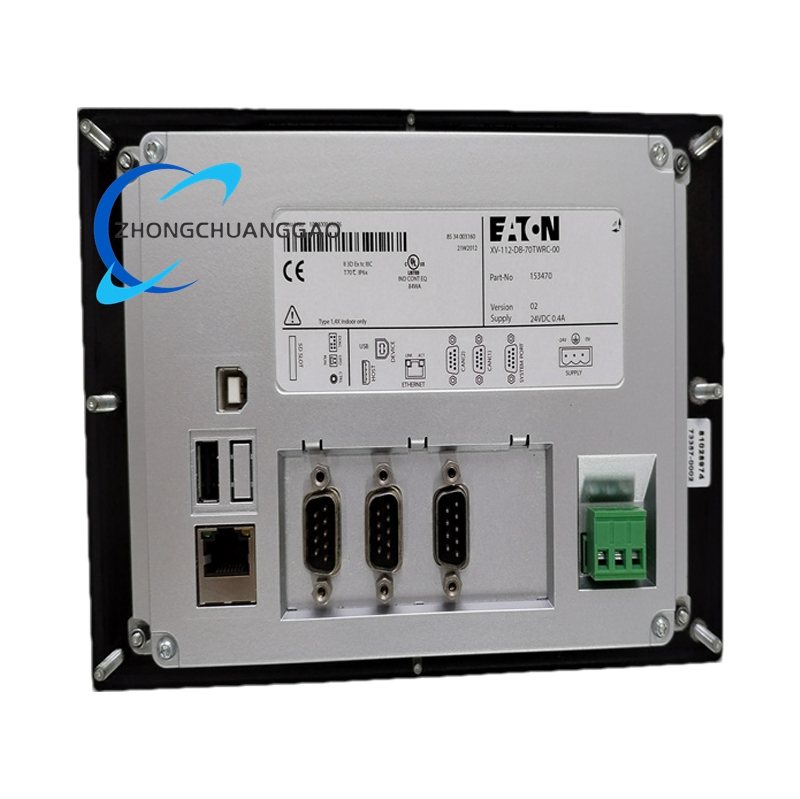

Interfaces
-
1 × 10/100 Mbit Ethernet (RJ-45)
-
1 × RS-232
-
2 × RS-485 / CAN (electrically isolated)
-
1 × USB device
-
2 × USB 2.0 host
-
SD memory-card slot (SDA 1.00)
-
-
Power Supply
-
Nominal: 24 V DC
-
Range: 18.8 – 28.8 V DC
-
Power consumption: 10 W typical, 12 W with USB load
-
Reverse-polarity protection
-
-
Environmental & Mechanical
-
Operating temperature: 0 °C – +50 °C
-
Storage temperature: –20 °C – +60 °C
-
Front-panel protection: IP65
-
Rear protection: IP60
-
Dimensions (W × H × D): 181 mm × 123 mm × 38 mm
-
Mounting: rear panel/cabinet, ±45° tilt allowed
-
-
Certification
-
CE, UL 508, EAC
-
ATEX Zone 22 Category 3D
-
Functional Features
-
Integrated PLC Runtime
-
XSOFT-CODESYS-2 / -3 license included
-
On-board IEC 61131-3 programming
-
-
Real-Time Clock & Battery
-
10-year lithium battery backup
-
-
Visualisation Software
-
GALILEO runtime pre-installed
-
-
License Management
-
License points assignable via Eaton web portal
-
-
Passive Cooling
-
Natural convection, no fan required
-
Application Scenarios
-
Machine Building: Packaging, textile, printing presses
-
Process Control: Chemical dosing, water treatment, food & beverage lines
-
Energy: Solar inverters, substation auxiliary monitoring
-
Transportation: On-board vehicle diagnostics and control panels
