Product Short Description
Technical Specifications
-
-
Display
-
144 mm square bezel, 270° pointer sweep
-
High-contrast dial with LED backlight for day/night readability
-
-
Power Supply
-
24 V DC nominal (18–32 V DC range)
-
Consumption < 5 W
-
-
Inputs
-
4 analog channels: ±10 V or 4–20 mA configurable
-
16 digital channels: 24 V DC, opto-isolated
-
-
Description
-
Outputs
-
2 relay outputs: SPDT, 250 V AC / 5 A
-
2 transistor outputs: 24 V DC / 0.5 A
-
-
Accuracy
-
Class 0.5 per IEC 60051
-
Repeatability ±0.1 % full scale
-
-
Communication
-
Dual CANopen (ISO 11898)
-
RS-485 Modbus RTU
-
-
Environmental
-
Operating: –25 °C to +70 °C
-
Protection: IP66 front, IP20 rear
-
Shock: 30 g / 11 ms
-
Vibration: 4 g / 5–500 Hz
-
-
Compliance
-
CE, UL 508, IACS E10, DNV GL marine rules
-
Functional Features
-

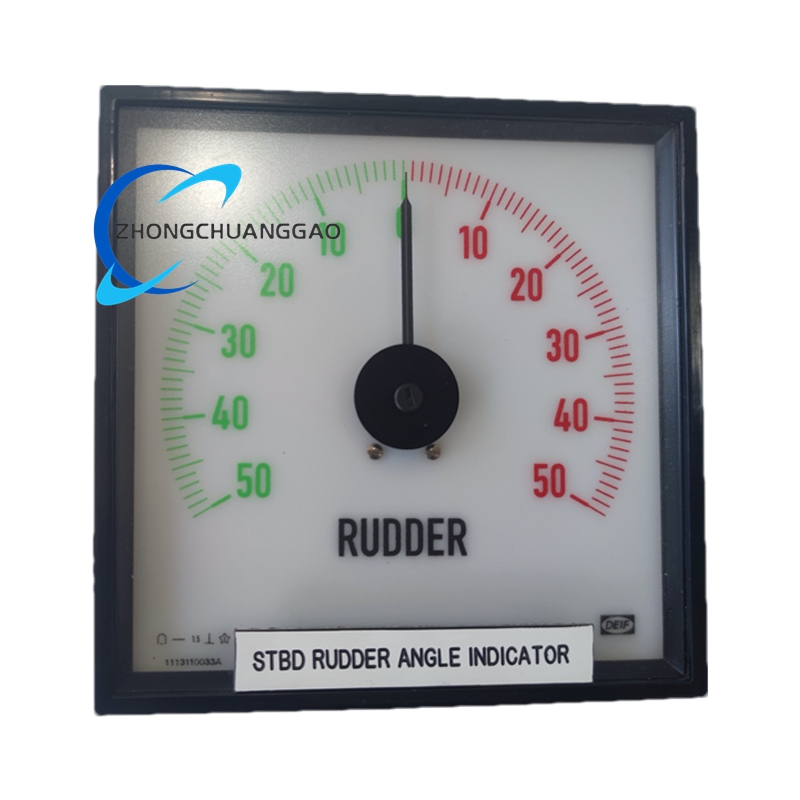

Rudder-Angle Mode: Accepts synchro or potentiometer signals, displays 0–40° with ±0.5° accuracy for safe navigation .
-
Synchronizer Mode: Auto-matches voltage, frequency, and phase angle before closing generator breaker; includes breaker closing-time compensation .
-
Multi-Parameter Display: Rotary bezel switch selects rudder angle, RPM, frequency, power, or synchronoscope mode without rewiring.
-
Fail-Safe Protection: df/dt, over/under voltage, over/under frequency, and short-circuit lockouts prevent unsafe grid connection.
-

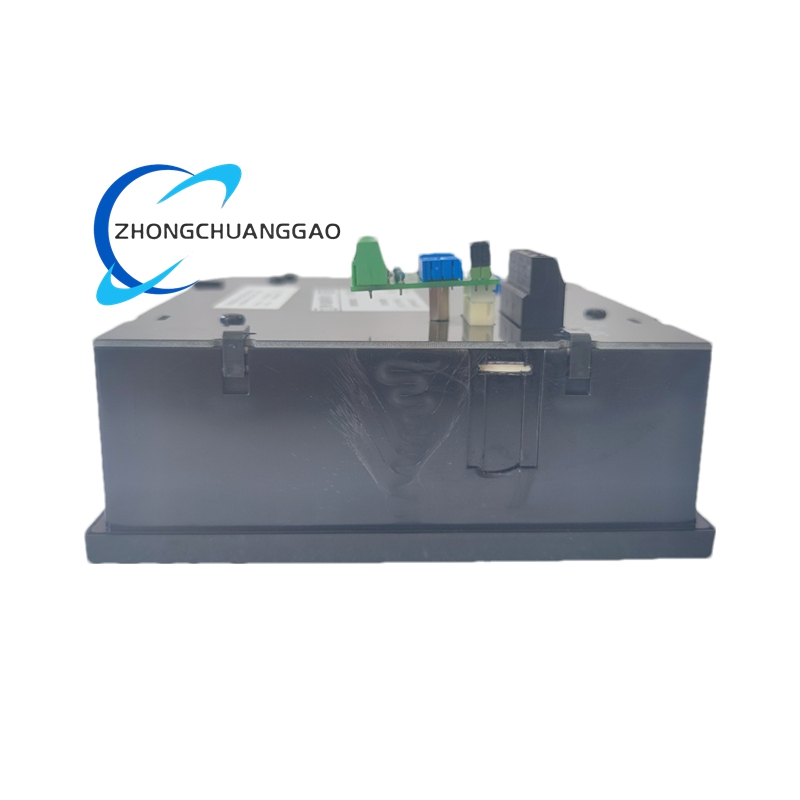

Plug-and-Play: 35 mm DIN-rail snap-in or panel mounting; front-facing plug connectors simplify wiring and service.
Application Scenarios
-
Ship Bridges: Accurate rudder-angle indication for cargo, passenger, and naval vessels .
-
Engine Rooms: Real-time generator synchronization and load sharing in DEIF DELOMATIC-3 systems .
-
Industrial Plants: Turbine or diesel-generator paralleling in microgrids and distributed energy systems.
-
Data Centers: Backup-generator synchronization to ensure uninterrupted power.
