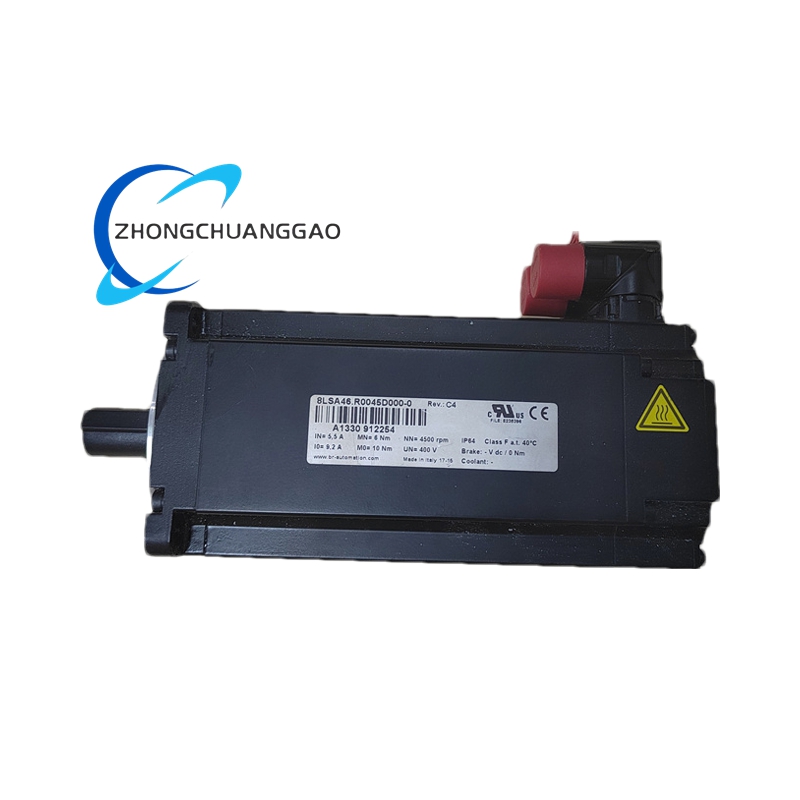

B&R 8LS46.R0045D000-0 – High-Performance Synchronous Servo Motor

Description

• Encoder: 2500-line incremental / EnDat 2.2 digital feedback (multi-turn option)
• Supply Voltage: 560 VDC (bus) – matched to ACOPOS servo drives
• Protection Class: IP65 (dust-tight, water-jet resistant)
• Cooling: Natural convection (self-cooled)
• Shaft: Smooth, without brake, centering diameter 95 mm
• Connector: Angled, rotatable circular connector for power and feedback
• Weight: ≈ 3.5 kg
• Dimensions: 130 mm × 130 mm × 90 mm (square frame)

• High dynamic response and positioning accuracy via low-inertia rotor
• Integrated thermal sensor and absolute encoder for real-time diagnostics
• Plug-and-play compatibility with B&R ACOPOS servo drives
• IP65 housing and rugged design for harsh industrial environments
• Maintenance-free operation – no brushes or mechanical wear

• Machine tools: CNC feed axes, spindle drives
• Robotics: articulated arms, pick-and-place units
• Packaging machinery: form-fill-seal, cartoning, labeling
• Printing systems: web tension control, registration drives
• Food & beverage: filling, capping, conveying lines
• Automotive: assembly robots, test benches
• Textile & plastics: extruder drives, winding systems
