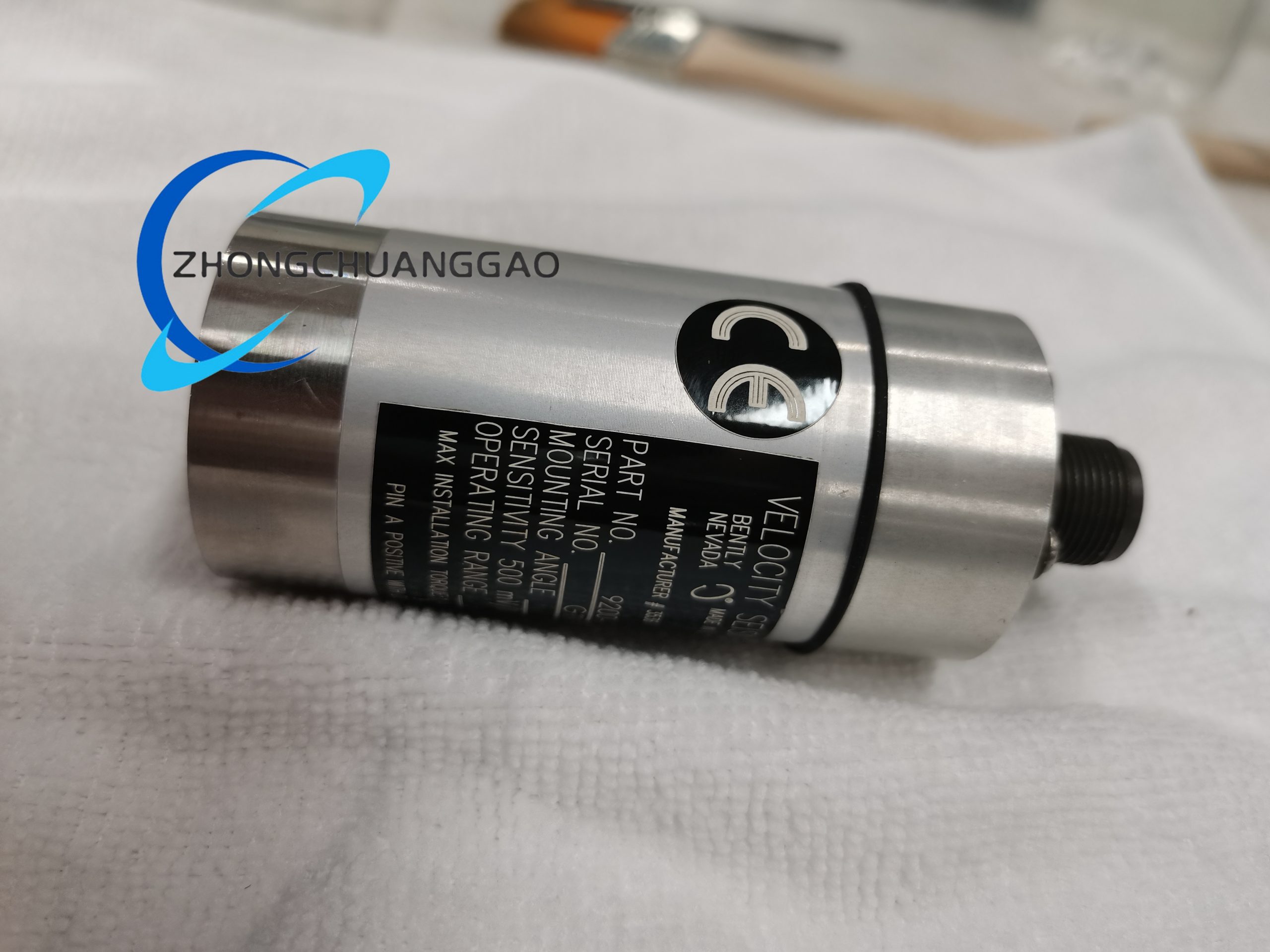

Product Short Description
Technical Specifications
- Sensitivity: 20 mV/mm/s (500 mV/in/s) ±5% at 100 Hz (6,000 cpm)
- Frequency Response: 10 Hz (600 cpm) to 1 kHz (60,000 cpm); typical tolerance ±3 dB
- Output: Voltage proportional to vibration velocity (no external power required)
- Cable Options:
- Standard Cable (9571): 2-core shielded twisted pair, 22 AWG (0.5 mm²), with moisture-resistant connectors
- Armored Cable (84661): Same specifications as 9571 but with stainless steel armor for enhanced durability
- Maximum Cable Length: 305 meters (1,000 feet) between sensor and monitoring system
- Temperature Range:
- Operating: -29°C to +121°C (-20°F to +250°F)
- Storage: -29°C to +121°C (-20°F to +250°F)
- Relative Humidity: Up to 95% non-condensing
- Mounting: M10X1 double-ended stud or 1/2-20 UNF-3A bolt
- Weight: Approximately 480 grams (17 ounces)
Description
Key Features
- Moving-Coil Technology: Reduces sensitivity to shock or pulse excitation, ensuring stable measurements in dynamic environments.
- Two-Wire Design: Simplifies installation by eliminating the need for external power supplies.
- Corrosion Resistance: Built-in durability for long-term use in harsh conditions without additional protection.
- High Sensitivity: Accurately detects low-level vibrations, enabling early fault diagnosis.
- Compatibility: Works seamlessly with Bently Nevada monitoring systems (e.g., 3500/42, 1900/65, 2300/20) and third-party vibration analyzers.
Application Scenarios
- Power Generation: Turbines, generators, and compressors in thermal, hydro, and wind power plants.
- Oil & Gas: Pumps, motors, and centrifuges in upstream and downstream operations.
- Petrochemicals: Reactors, extruders, and fans for process reliability.
- Steel Industry: Rolling mills, blast furnaces, and conveyor systems.
- Manufacturing: CNC machines, spindles, and assembly line equipment.
Industry Compliance
- Meets API 670 standards for machinery protection systems.
- Certified for use in hazardous environments (ATEX, IECEx, and CSA approvals available upon request).
Benefits
- Predictive Maintenance: Enables early detection of imbalances, misalignments, and bearing wear to prevent unplanned downtime.
- Cost Efficiency: Reduces repair costs by extending equipment lifespan through timely interventions.
- Safety Enhancement: Mitigates catastrophic failures by providing real-time vibration alerts.
- Centralized Monitoring: Integrates with Bently Nevada’s System 1 platform for centralized asset health management.
