Product Short Description

Technical Specifications

  • Input Impedance: Standard I/O: 10kΩ; TMR I/O: The effective impedance of three bus – type TMR I/O connected in parallel to one sensor is 50kΩ.
  • Power Consumption: Rated power consumption is 7W.
  • Sensitivity: Radial vibration: 3.94mV/µm (100mV/mil) or 7.87mV/µm (200mV/mil); Axial displacement: 3.94mV/µm (100mV/mil) or 7.87mV/µm (200mV/mil); Eccentricity: 3.94mV/µm (100mV/mil) or 7.87mV/µm (200mV/mil); Differential expansion: 0.394mV/µm (10mV/mil) or 0.787mV/µm (20mV/mil).
  • Accuracy: Direct frequency and gap: ±0.33% of full scale, maximum ±1%; 1X & 2X: ±0.33% of full scale, maximum ±1%.
  • Dimensions: 241.3mm x 24.4mm x 99.1mm (9.50in x 0.96in x 3.90in).
Share on Facebook
Share on Twitter
Email This Product

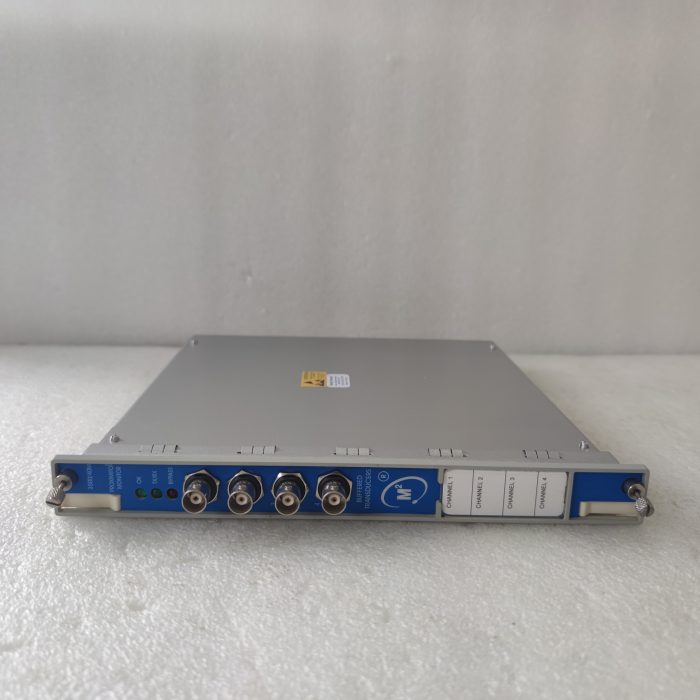

Bently Nevada 3500/40M 140734-01

Description

Function Characteristics

  • Multi – function Monitoring: It can perform functions such as radial vibration, axial displacement, differential expansion, and shaft eccentricity monitoring through configuration.
  • Alarm Function: By continuously comparing the current value of machine vibration with the alarm value in the configuration and driving the alarm system, it protects the machine. Each channel can process the input signal into a “static value”, and each static value has a configured warning alarm value, and every two static values can be configured with a danger alarm value.
  • LED Indication: The front – panel OK LED indicates normal operation, the TX/RX LED indicates communication with other modules in the 3500 rack, and the Bypass LED indicates the bypass mode.
  • Buffered Output: The front panel has a coaxial connector for each channel, and each coaxial connector has short – circuit protection.

Application Scenarios

It is widely used in various industrial fields that require high – precision vibration and displacement monitoring, such as petroleum, chemical, power, metallurgy and other industries. It can help enterprises monitor the real – time operation status of equipment, prevent faults, improve production efficiency and safety.
