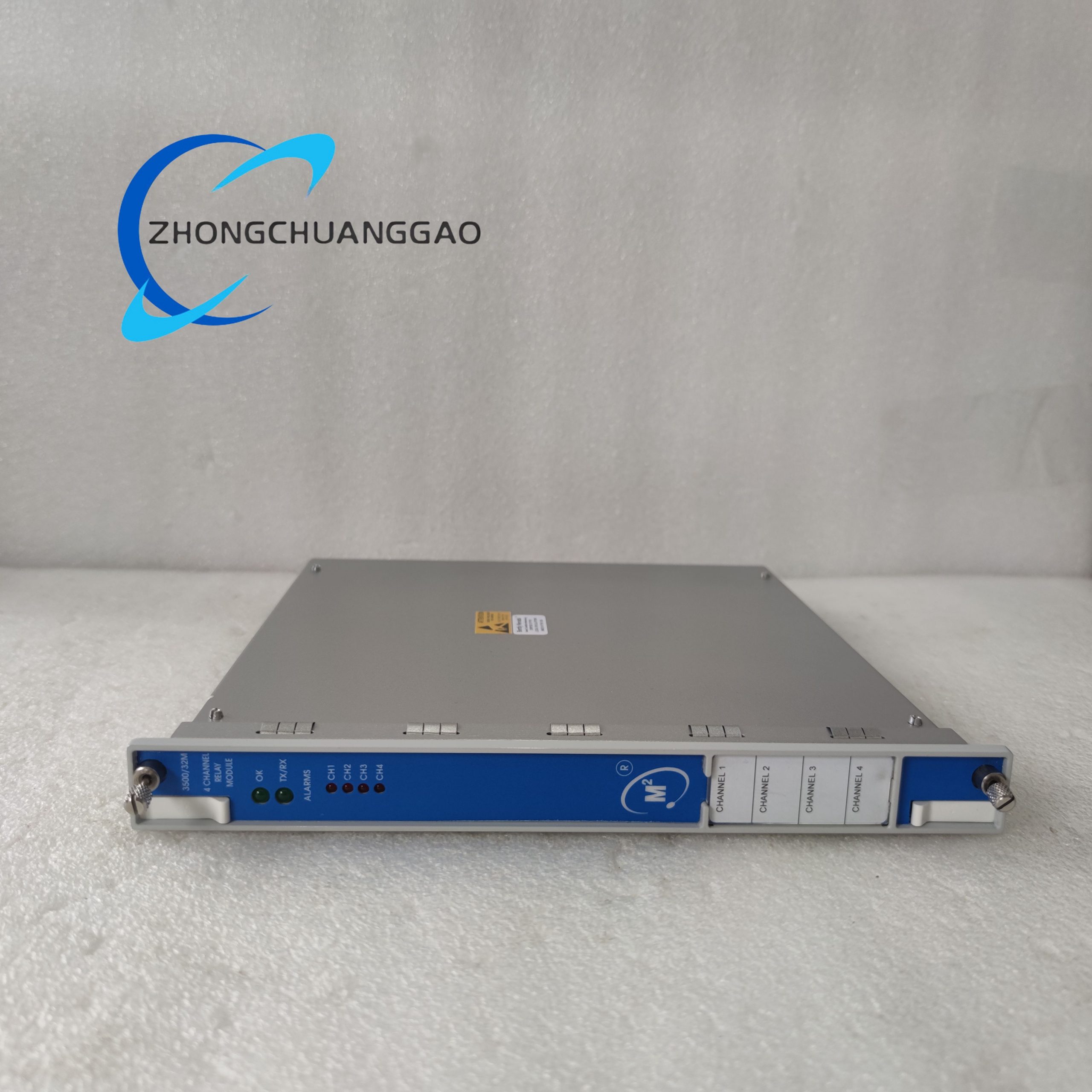

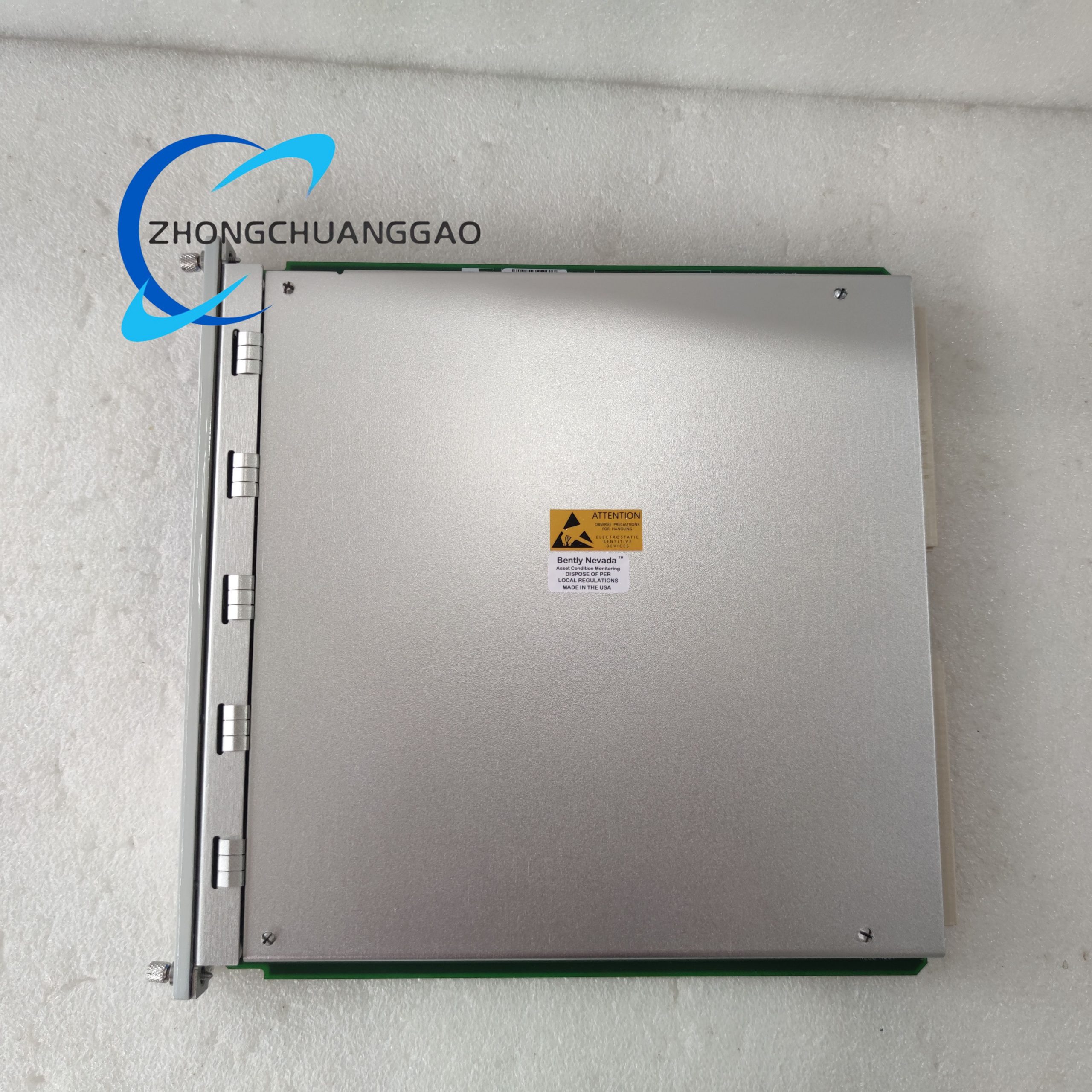

Bently Nevada 3500/32M 149986-02 4-Channel Relay Module

Product Short Description

Technical Specifications:

Relay Channels: 4 independent relay output channels.
Configuration: Supports user-defined alarm or shutdown logic via AND/OR programming.
Compatibility: Works with Bently Nevada 3500 system racks and other monitoring modules.
Programming: Configurable through Bently Nevada 3500 configuration software.
Redundancy: Supports redundant architecture for high system availability.
Status Indication: Built-in LED indicators for each channel (active/inactive).
Physical Design: Plug-in module, occupies one slot in the 3500 system rack.
Environmental: Designed for harsh industrial environments, with high reliability and durability.
Communication: Integrates with Ethernet protocols (e.g., EtherCAT) for real-time data transmission.

Functional Features:

Alarm/Shutdown Control: Triggers relay outputs based on predefined thresholds for machinery protection.
Flexible Logic: Supports AND/OR programming to adapt to diverse alarm requirements.
Real-Time Monitoring: Transmits alarm signals to DCS/PLC/SCADA systems via Ethernet.
Ease of Use: Simplified programming and configuration through dedicated software.
Redundant Operation: Ensures continuous system functionality even if one module fails.
Visual Feedback: LED indicators provide immediate status updates for each channel.

Application Scenarios:

Turbomachinery: Monitors vibration and pressure in turbines and generators to prevent resonance-induced failures.
Reciprocating Compressors: Detects abnormal pressure pulsations in cylinders to avoid valve malfunctions.
Power Generation: Ensures safe operation of generators by monitoring cooling system pressures.
Oil & Gas: Protects pipeline compressors and wellhead equipment from pressure-related failures.
Petrochemicals: Analyzes reactor vessel temperatures for process optimization.
Marine/Offshore: Safeguards propulsion systems on ships by detecting shaft misalignment.

Key Advantages:

High Reliability: Meets stringent industrial standards for long-term operation in severe environments.
Scalability: Supports up to 14 modules in a single 3500 system rack.
Cost Efficiency: Reduces downtime and maintenance costs through predictive maintenance.
Compliance: Adheres to API 670 (machinery protection) and API 618 (reciprocating compressors) standards.
Integration: Seamlessly connects with Bently Nevada’s System 1 software for centralized diagnostics.
