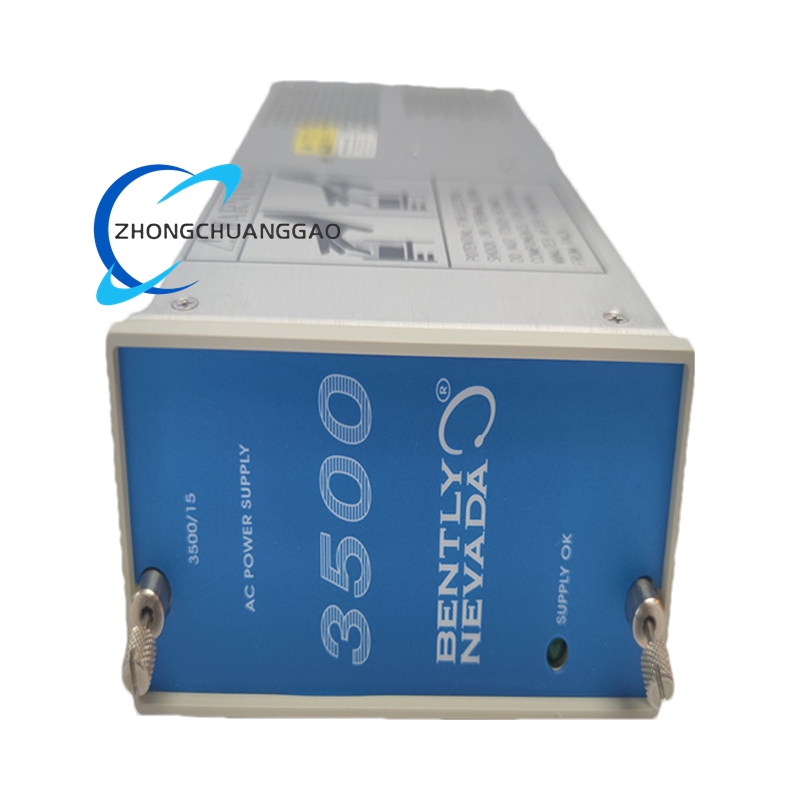

Bently Nevada 3500/15 127610-01 – High-Reliability AC Power Supply Module

Description

• Input Voltage Range: 90 – 264 VAC, 47 – 63 Hz (universal)
• Output Voltage: 24 VDC ± 1 %
• Continuous Output Current: 5.5 A (100 W continuous)
• Efficiency: ≥ 90 % at full load
• Operating Temperature: –30 °C to +65 °C
• Storage Temperature: –40 °C to +85 °C
• Humidity: 95 % RH non-condensing
• Dimensions: 120.7 mm × 50.8 mm × 251.5 mm
• Weight: 1.39 kg
• Isolation & Protection: 2.5 kV input-to-output, over-voltage, over-current, short-circuit protection
• Certifications: CE, UL, RoHS

• Hot-Swappable: Can be inserted or removed while the rack remains powered, eliminating downtime
• Redundant Operation: Two modules fit side-by-side; lower slot acts as primary and upper as automatic backup
• Universal Input: Accepts any global mains without external adapters
• LED Diagnostics: Front-panel LEDs give immediate visual status of power, fault, and redundancy
• Rugged Design: Conformal-coated PCB and extended temperature range for offshore rigs, refineries and high-temperature plants

• Vibration Monitoring: Powers 3500 rack modules that monitor shaft vibration, temperature and position on turbines, compressors and pumps
• Power Generation: Turbine-generator sets in gas, steam and hydro plants
• Oil & Gas: Offshore platforms, pipeline compressors, refinery rotating equipment
• Chemical & Pharmaceutical: Critical process compressors, mixers, extruders
• Water & Wastewater: Large centrifugal blowers and pumps
