Product Short Description
echnical Specifications
-
Input Channels
– 4 sensor inputs: accept 2-wire or 3-wire accelerometers, velocity sensors, or proximity probes
– 4 temperature inputs: E, J, K, T thermocouples and 2-/3-wire RTDs -
Output Channels
– 6 relay outputs: configurable for OK, Alert, or Danger logic
– 4 isolated 4-20 mA recorder outputs: map to any variable from any channel
– 1 buffered raw-signal output per sensor channel
Description
-
Communication
– Ethernet 10/100 Base-TX and RS-232/RS-485 serial port
– Optional Modbus gateway for seamless integration with DCS, SCADA, PLC or System 1 software -
Resolution & Processing
– 16-bit A/D on all channels
– Real-time variables: vibration (peak/RMS), displacement, velocity, temperature, bias voltage
– Configurable band-pass, high-pass, low-pass, and envelope demodulation filters -
Power
– 18 – 36 V DC input
– Typical 8.5 W, maximum 14 W -
Environment
– Operating temperature –20 °C to +70 °C
– Operating humidity 0 – 95 % non-condensing -
Physical

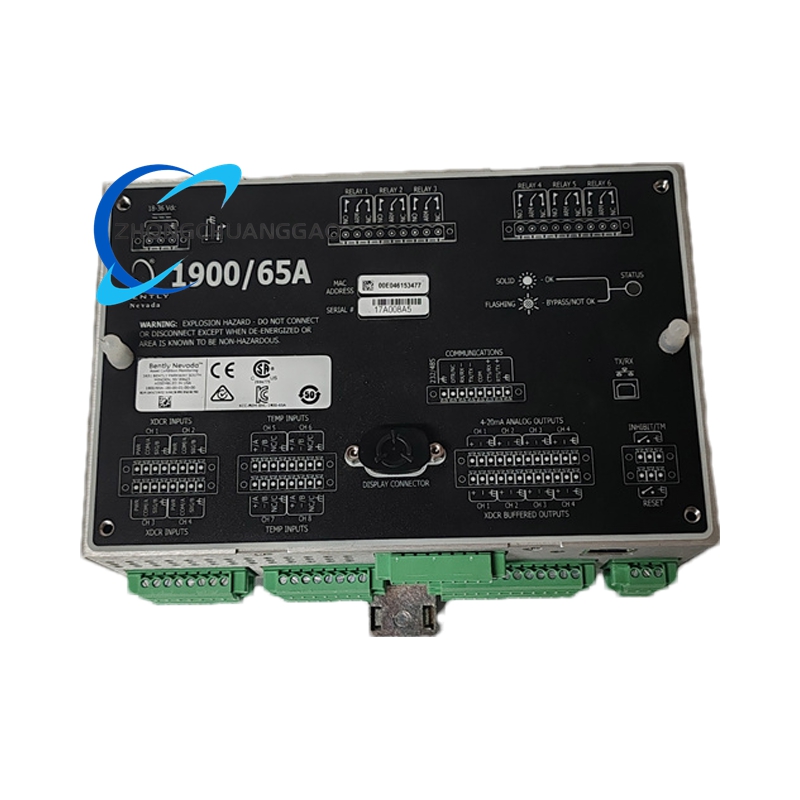

– Monitor module: 196.9 mm × 149.4 mm × 74.4 mm, 0.77 kg
– Optional display module: 196.9 mm × 149.4 mm × 32.8 mm, 0.40 kg
– DIN-rail 35 mm or panel mount; NEMA 4X enclosure option available
Functional Features
-
Universal channel type: each sensor input selectable for acceleration, velocity, displacement, thrust, or position
-
Programmable alarm setpoints, relay logic, and trip multiply functions
-
Non-volatile memory retains configuration and historical data
-
Hot-swappable configuration via PC-based software over Ethernet
-
LED indicators for channel status, relay states, and trip conditions
-

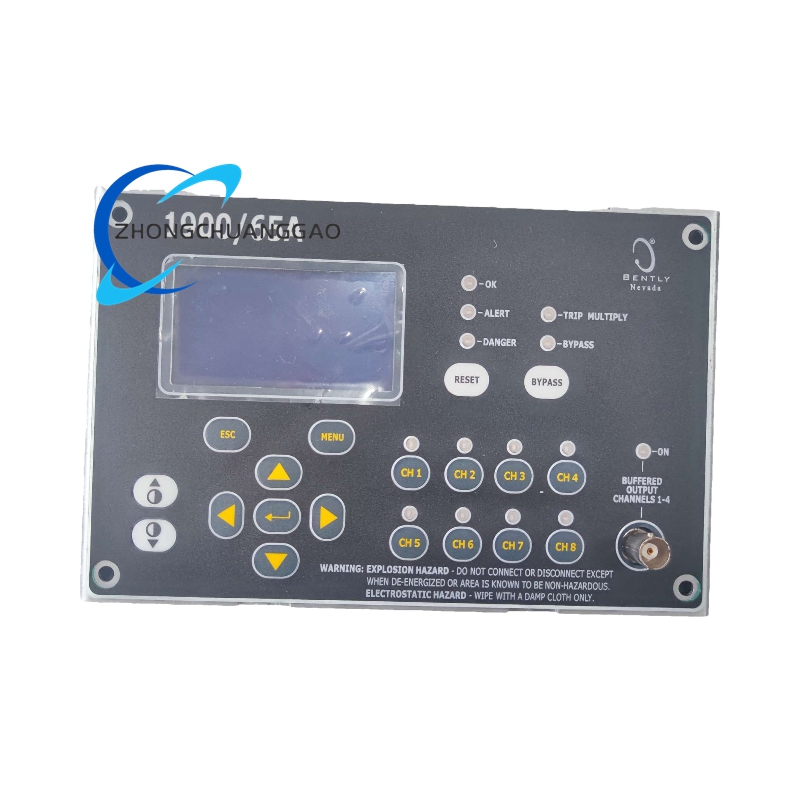

Optional 2.7-inch backlit LCD/keyboard module for local display and minor edits (up to 75 m cable)
Application Scenarios
-
Rotating machinery protection: pumps, fans, compressors, motors, gearboxes
-
General-purpose OEM machines requiring cost-effective continuous monitoring
-
Process industries: chemical, petrochemical, refining, power generation
-
Sled-mounted or skid-mounted equipment where space and cost are critical
-
Remote unmanned stations integrated via Modbus to central SCADA or DCS
