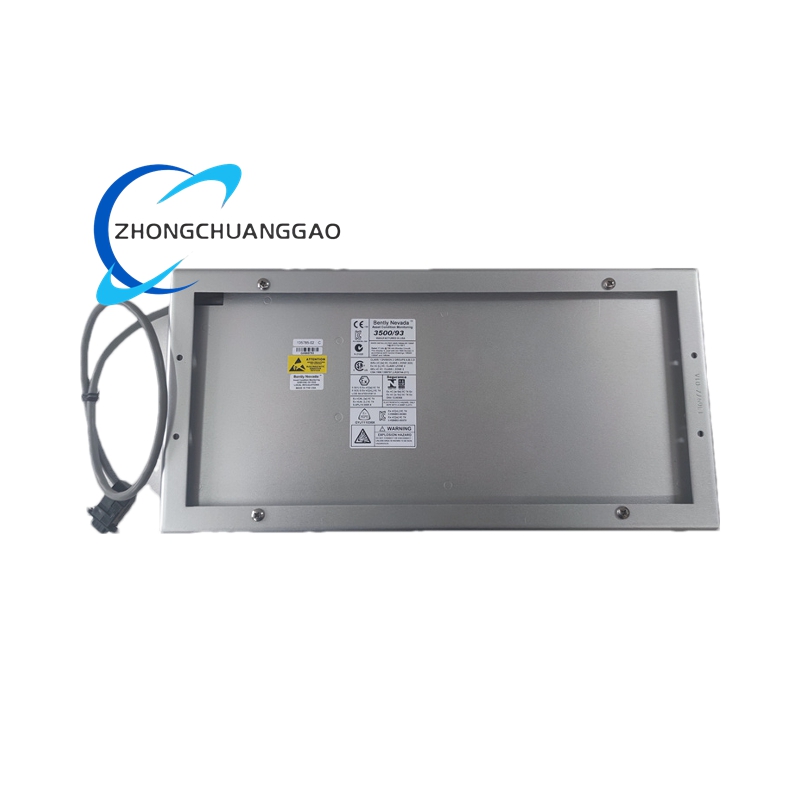

BENTLY 3500/93 135785-02

Description

• Power Supply:
  • AC: 175–264 VAC (47–63 Hz) or 85–132 VAC (47–63 Hz)
  • DC: 88–140 VDC or 20–30 VDC
• Communication Interfaces:
  • RS-232 (front-panel port for local configuration)
  • RS-485 (2 ports for system integration)
  • Ethernet (via MultiNet converter for DCS/SCADA connectivity)
• Protocols: Modbus, DNP 3.0, and Bently Nevada proprietary protocols.
• Display: 40-character alphanumeric LCD for local status monitoring.
• Certifications: CE, UL, and compliance with IEC 61010 standards.

Functional Features

• Real-Time Monitoring: Visualizes vibration, temperature, and process data from sensors in real time.
• Hot-Swappable Design: Enables module replacement without system shutdown, reducing maintenance time.
• Multi-Protocol Support: Integrates with DCS, SCADA, and PLC systems via Modbus, DNP 3.0, and Ethernet.
• Programmable Alarms: User-configurable thresholds for vibration, temperature, and pressure to trigger alerts.
• Event Logging: Records up to 150+ events (e.g., voltage sags, overcurrent) with timestamps for troubleshooting.
• Waveform Capture: Stores 98,000+ transient events for post-analysis of machinery faults.
• Remote Access: Configurable via EnerVista software for centralized monitoring and diagnostics.
• Redundant Power Compatibility: Works with dual-power supplies to eliminate single points of failure.
• Rugged Construction: IP20-rated housing for dust and particle resistance in harsh environments.

Application Scenarios

• Power Generation: Monitors generators and turbines in thermal, hydro, and renewable energy plants.
• Oil and Gas: Tracks compressors and pumps in upstream/downstream operations to prevent unplanned shutdowns.
• Metallurgy: Optimizes rolling mills and blast furnaces by detecting vibrations and thermal anomalies.
• Chemical Processing: Ensures safe operation of reactors and distillation columns through continuous parameter tracking.
• Water Treatment: Manages pump stations and filtration systems for reliable water supply.
• Transportation: Supports railway signaling and traffic management systems for safety-critical control.
