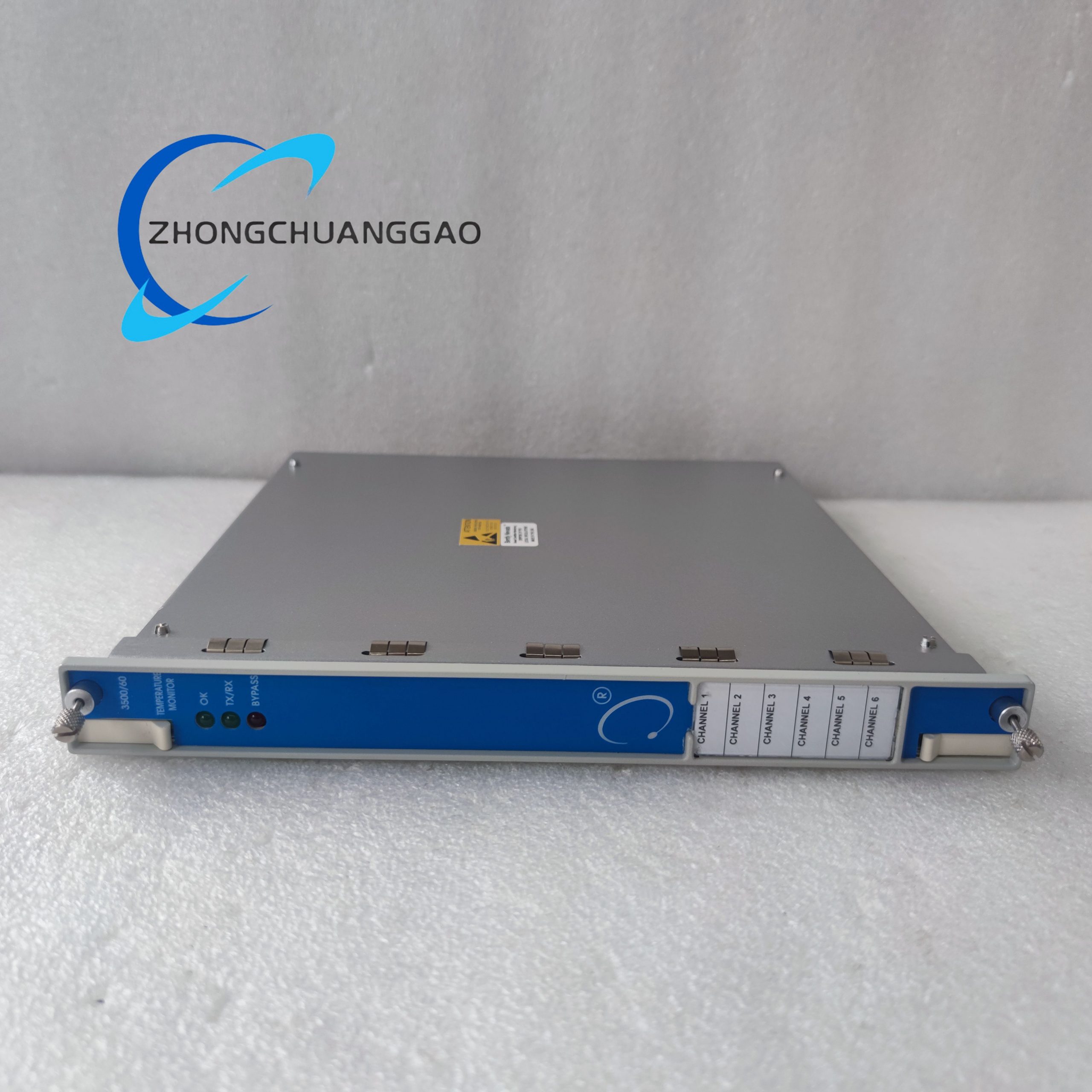

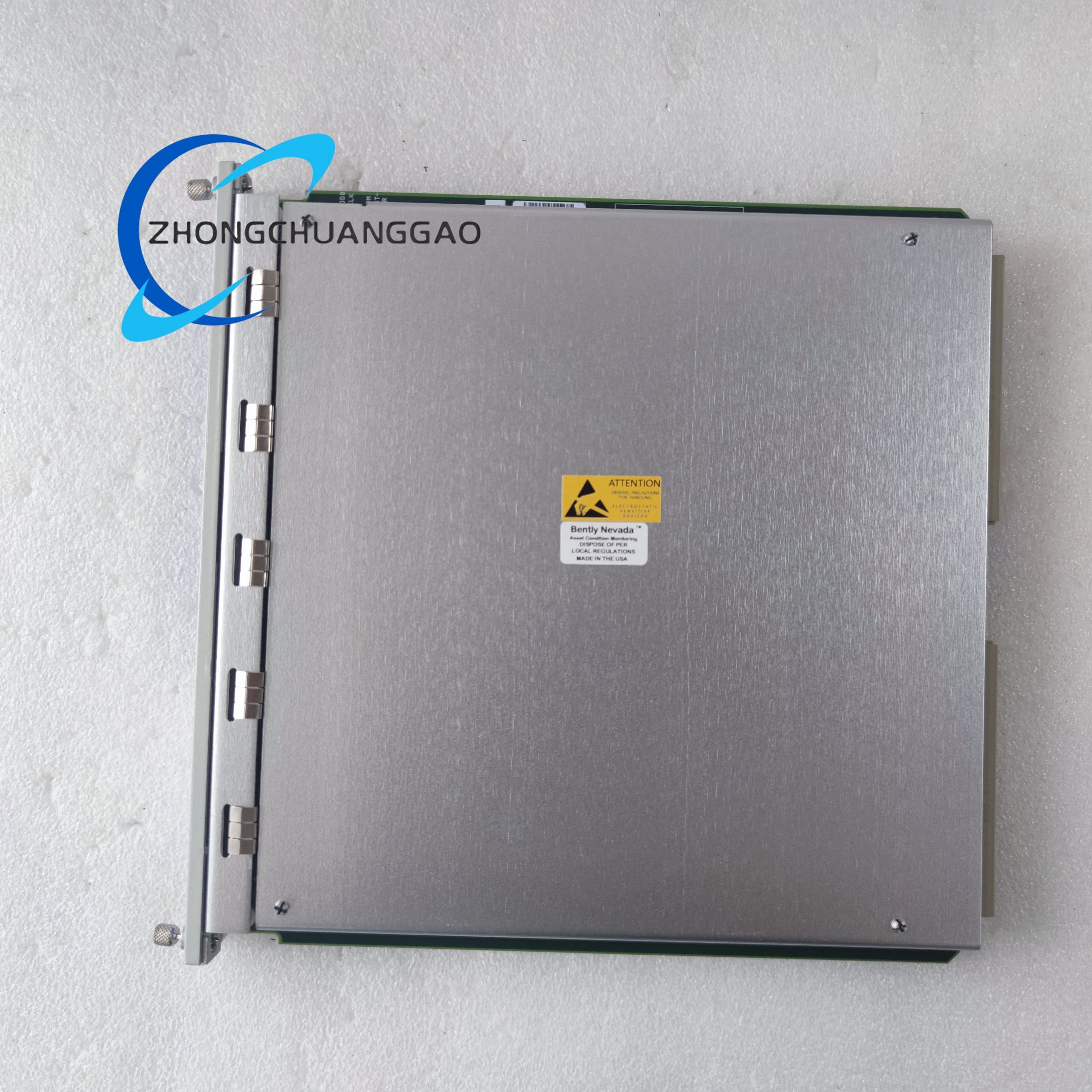

Bently 3500/60 Temperature Monitor

Product Short Description

Technical Specifications

Channels: Six temperature monitoring channels
Input Types: Accepts RTD and TC temperature inputs
Accuracy: Alarm accuracy maintained within 0.13% of the desired value
Isolation: Offers non-isolated and isolated versions (TC isolated version provides 250 Vdc channel-to-channel isolation to prevent external interference)
Alarm Range: Configurable from 0% to 100% of the full-scale measurement range for each monitored value
Operating Temperature Range: -30°C to +65°C (or reduced range when used with certain TC types at higher ambient temperatures)
Software Configuration: Utilizes 3500 Rack Configuration Software for programming and setup
Voting System: Supports Triple Modular Redundancy (TMR) configuration with three monitors installed adjacent to each other, using two types of voting to ensure accurate operation and avoid single-point failures

Key Features

Flexible Input Configuration: The non-isolated RTD/TC version can be configured to accept TC inputs, RTD inputs, or a combination of both, providing versatility in temperature measurement sources.
High Precision and Reliability: The module ensures high accuracy in temperature measurement and alarm triggering, enhancing the reliability of the monitoring system.
Robust Isolation Protection: The TC isolated version offers strong protection against external interference, ensuring stable and accurate temperature data.
User-Friendly Programming Interface: The 3500 Rack Configuration Software provides an intuitive interface for easy setup and configuration of the module’s parameters.
Comprehensive Alarm Functions: Supports both low and high alarm setpoints, ensuring comprehensive monitoring and response to various temperature scenarios.
Redundancy and Fault Tolerance: Designed for TMR configurations, the module enhances system reliability and fault tolerance by using multiple monitors and voting mechanisms.

Application Scenarios

Power Generation: Monitors the temperature of generators, transformers, cables, and other critical equipment in power plants to ensure safe operation and prevent failures due to overheating.
Oil and Gas: Used in oil and gas production facilities to monitor the temperature of pumps, compressors, pipelines, and other key equipment, preventing failures caused by temperature anomalies.
Chemical Processing: Monitors and controls the temperature of various equipment in chemical production processes to ensure safe and efficient operations.
Manufacturing: Employed in manufacturing industries, especially those involving large industrial machinery, for equipment status monitoring and predictive maintenance.
Aerospace: Monitors the temperature of critical components in aircraft and other aerospace equipment to ensure safety and reliability.
Transportation: Used in rail and other transportation systems to monitor the temperature of trains, airplanes, ships, and other key equipment.
