Product Short Description
Technical Specifications:

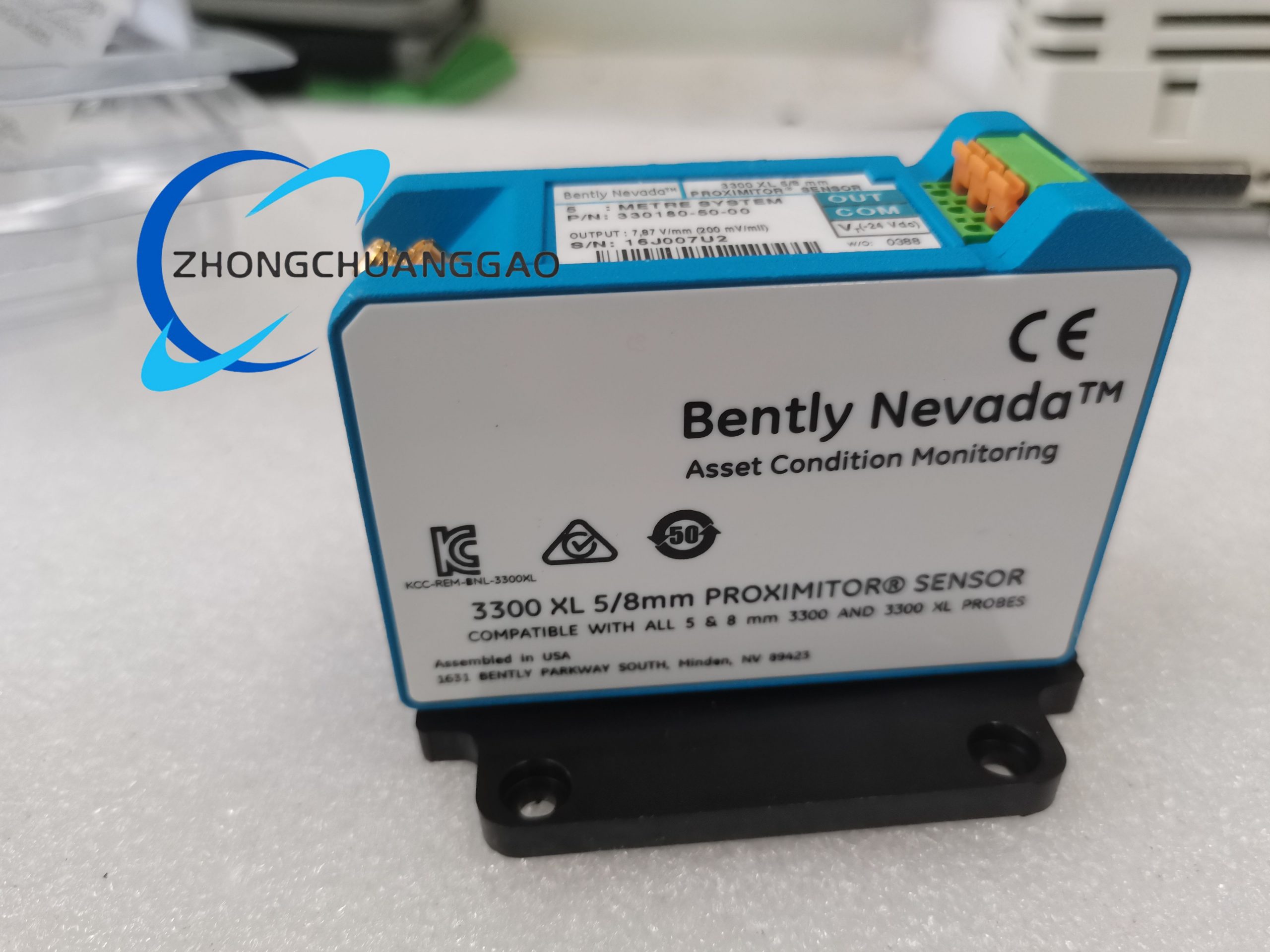

- Type: Eddy Current Sensor (Proximitor)
- Measurement Range: Provides a linear range suitable for measuring shaft displacements, typically up to several hundred mils (1 mil = 0.001 inch).
- Output Signal: Voltage output proportional to the displacement, compatible with Bently Nevada monitoring systems.
- Sensitivity: 7.87 mV/μm (200 mV/mil) for the 3300 XL 8mm system.
- Operating Temperature: -35°C to +85°C.
- Material: Constructed with high-quality materials, including A308 aluminum for the Proximitor housing.
- Weight: 255 g.

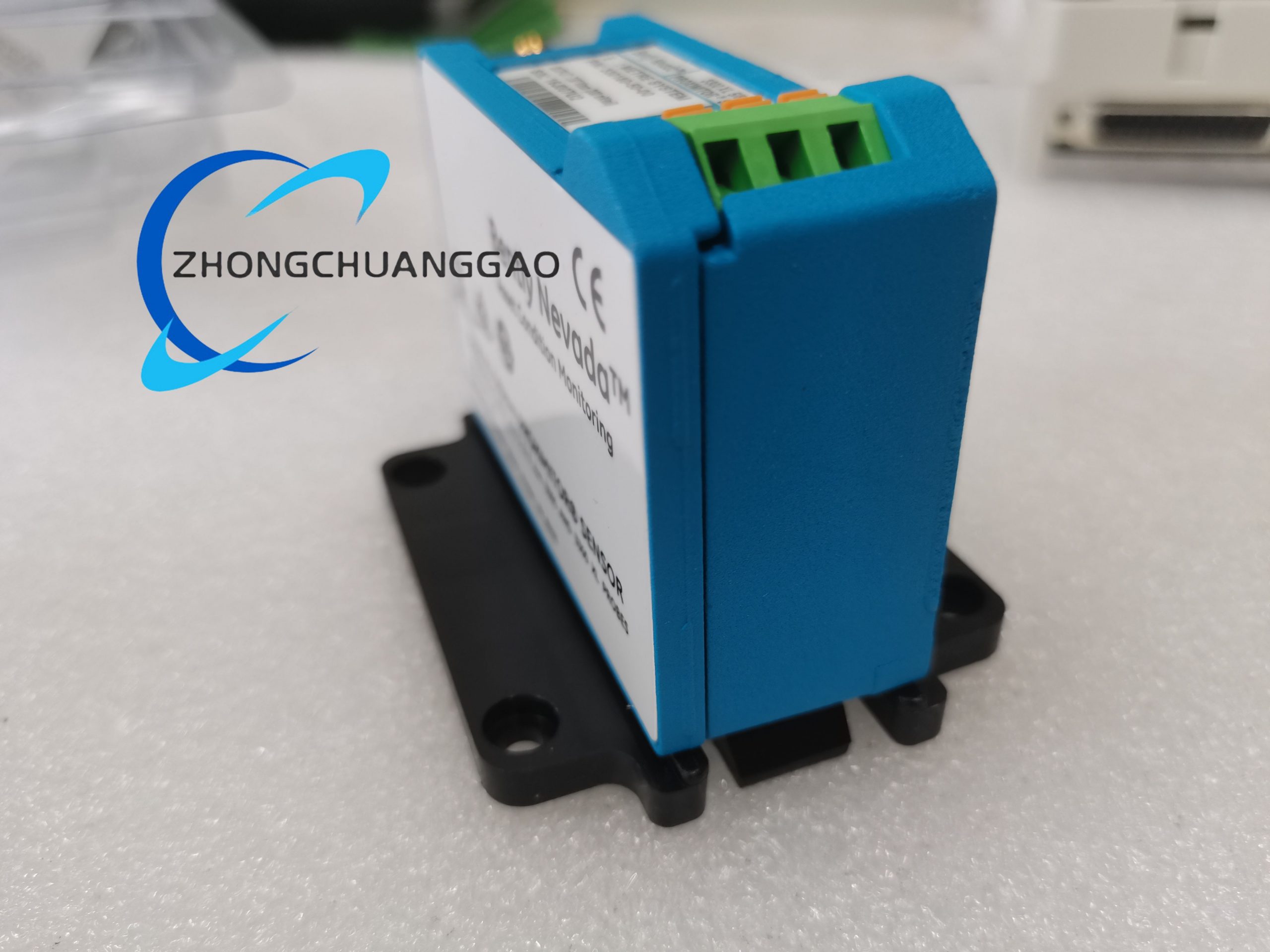

- Installation Options: Can be installed using compact rail mounting or traditional panel mounting. Both forms of the mounting base are electrically insulated, eliminating the need for a separate insulating plate.
- Connector Type: Features robust SpringLoc terminals that do not require special installation tools, ensuring secure connections without loosening.
- Compliance: Meets industry standards such as API 670 (fourth edition) for mechanical configuration, linear range, accuracy, and temperature stability.
Description
Functional Characteristics:
- High Precision: Provides accurate and repeatable measurements of shaft displacement, enabling early detection of potential issues.
- Robust Design: Built to withstand harsh industrial environments, including high temperatures, vibrations, and corrosive substances.
- Easy Installation: User-friendly design for quick and easy installation on rotating machinery.
- Compatibility: Fully compatible with Bently Nevada 3300 XL series probes and extension cables, supporting complete interchangeability without the need for matching or calibration of individual components.
- Long Service Life: Designed for long-term reliability, reducing maintenance costs and downtime.
- Radio Frequency Interference (RFI)/Electromagnetic Interference (EMI) Resistance: Strong resistance to RFI/EMI, eliminating the need for special shielding conduits or metal protective boxes, thus reducing installation costs and complexity.
Application Scenarios:
- Power Generation: Used in power plants to monitor the displacement and vibration of turbine and generator shafts, ensuring safe and efficient operation.
- Oil and Gas: Applied in the oil and gas industry to monitor the health of rotating equipment such as compressors and pumps, preventing unexpected failures.
- Chemical Processing: Utilized in chemical plants to monitor the displacement and vibration of rotating machinery, ensuring process stability and safety.
- Metallurgical Industry: Used in steel mills and other metallurgical facilities to monitor the condition of rolling mills and other critical equipment.
- Marine Engineering: Applied in marine propulsion systems to monitor the displacement of shafts, ensuring reliable operation of ships and offshore platforms.
- General Industrial Applications: Suitable for monitoring large and medium-sized rotating machinery in various industries, including fans, motors, water pumps, gearboxes, and more.
