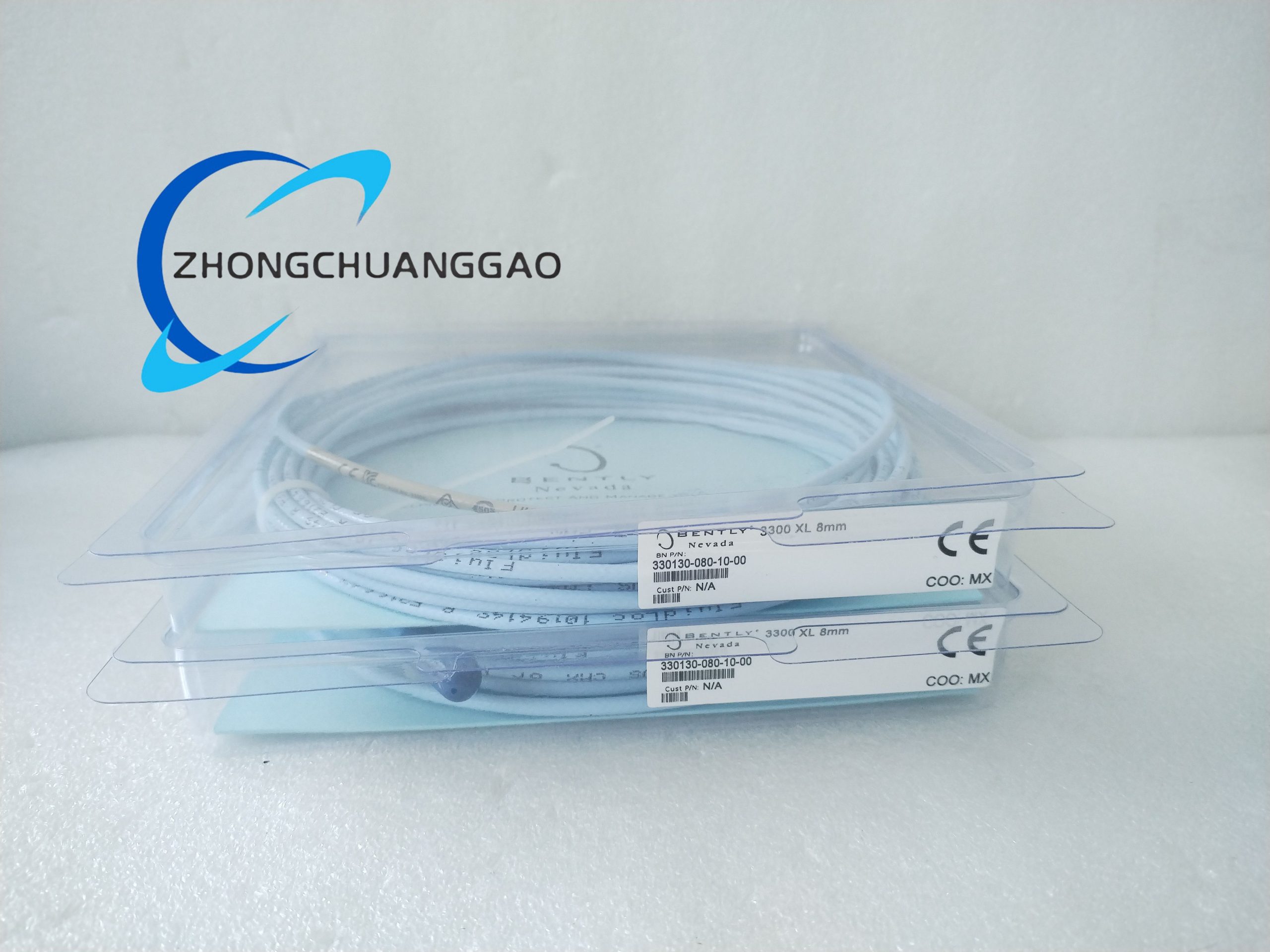

Product Short Description
Technical Specifications:
- Length: 10 meters (standard length; other lengths may be available upon request)
- Cable Type: 75Ω three-dimensional axial PFA-insulated cable
- Connector Type: ClickLoc™ gold-plated brass or beryllium copper connectors for secure and easy installation
- Weight: Approximately 0.5 kg to 2.5 kg (depending on the specific configuration)
- Protection Class: IP67 (dust-tight and waterproof)
- Minimum Bending Radius: 30 mm
- Operating Temperature Range: -51°C to +177°C (extended range up to +260°C for high-temperature variants)
- Tensile Strength: 330 N (75 lbs) from the probe housing to the probe tip; 270 N (60 lbs) from the probe tip to the extension cable joint
- Material Options: Standard PFA-insulated cable or optional elastic AISI302 or 304 SST stainless steel with FEP or PFA outer sheath
- System Compatibility: Fully compatible with 3300 XL 8mm probes, extension cables, and 3500 series monitoring modules without individual calibration
- Certifications: Meets API 670 standards for vibration and displacement sensors
Description
Functional Characteristics:
- Signal Integrity: Maintains high-fidelity transmission of vibration and displacement signals with minimal attenuation.
- Robust Design: Withstands harsh environments, including high temperatures, humidity, and oil exposure. Certified for ATEX Zone 0 hazardous areas.
- Easy Installation: ClickLoc connectors require no tools, support hot-swapping, and prevent loose connections.
- Diagnostic Capabilities: Supports system self-checks when paired with compatible probes and proximitors.
- Flexible Configuration: Available in various lengths to suit different installation needs.
- Safety Compliance: Meets European EMC standards for RFI/EMI resistance.
Application Scenarios:
- Power Generation: Turbines, generators, and pumps.
- Petrochemical Industry: Drilling platforms, compressors, and reactors.
- Metallurgical Industry: Rolling mills, blast furnaces, and gearboxes.
- Marine Engineering: Ship propulsion systems and offshore platforms.
- Scientific Research: Rotor dynamics studies and experimental test rigs.
