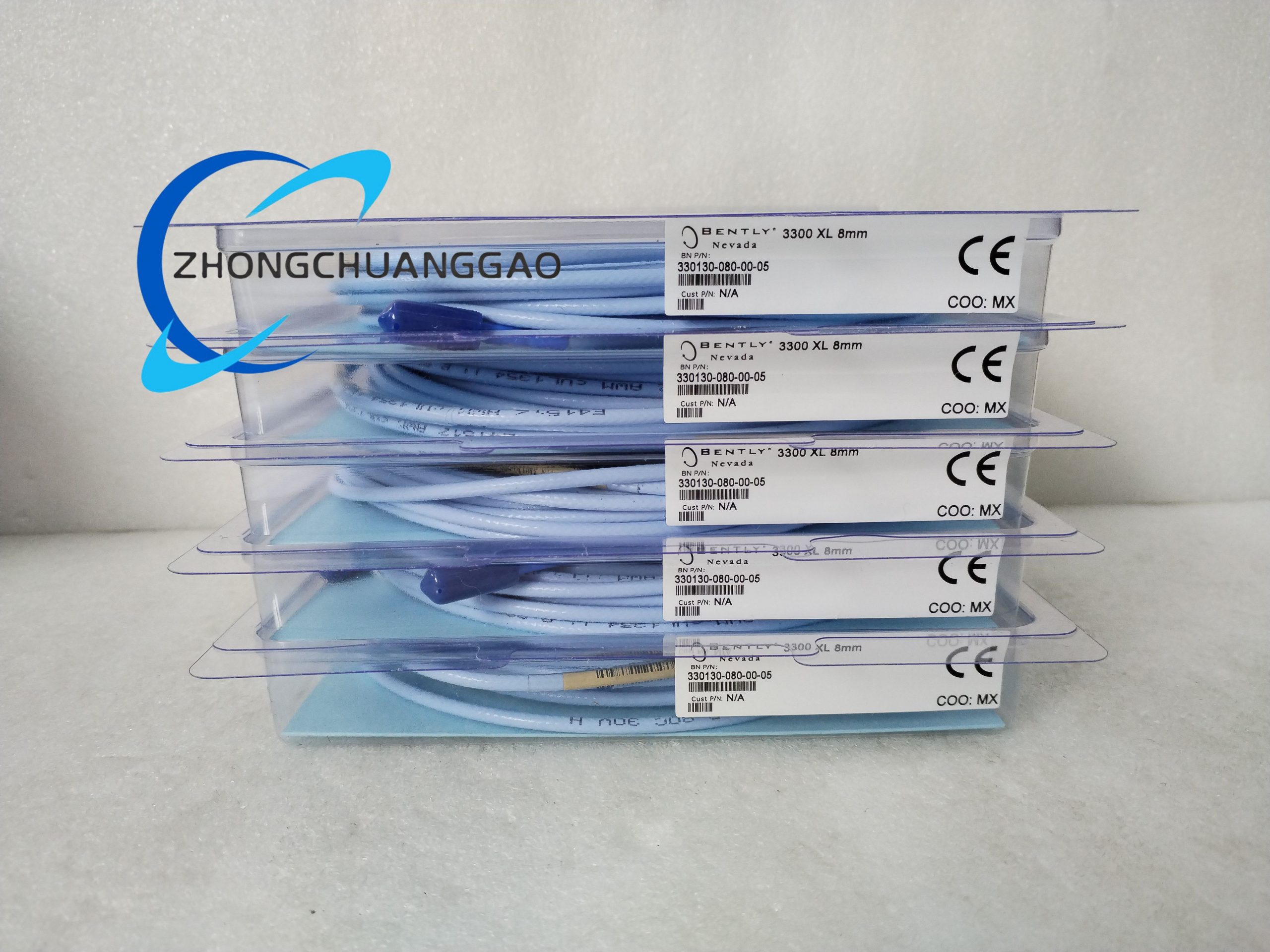

Product Short Description
Technical Specifications:
- Length: 8.0 meters (standard; optional lengths available)
- Cable Type: High-quality PFA insulation with 75Ω impedance
- Connector: ClickLoc™ gold-plated copper connectors (finger-tightenable, automatic locking)
- Weight: Approximately 1.5–2.5 kg
- Protection Class: IP67 (dust-tight and waterproof)
- Minimum Bending Radius: 30 mm
- Operating Temperature: -52°C to +177°C (extended range up to +260°C for high-temperature variants)
- Tensile Strength: 330 N (75 lbs) from probe housing to probe tip; 270 N (60 lbs) from probe tip to cable connector
- Material Options:
- Standard: PFA-insulated cable
- Optional: Stainless steel (AISI302/304) with FEP or PFA outer sheath
- Compatibility: Fully interchangeable with 3300XL 8mm probes, extension cables, and 3500 series monitoring modules without individual calibration.
Description
Functional Characteristics:
- Signal Integrity: Maintains high-fidelity transmission of vibration and displacement signals with minimal attenuation.
- Robust Design: Withstands harsh environments, including high temperatures, humidity, and oil exposure (ATEX Zone 2 certified for explosive atmospheres).
- Easy Installation: ClickLoc connectors require no tools, support hot-swapping, and prevent loose connections.
- Diagnostic Capabilities: Supports system self-checks when paired with compatible probes and proximitors.
- Flexible Configuration: Available in lengths from 3.0 m to 8.5 m to suit varying installation needs.
- Safety Compliance: Meets API 670 and European EMC standards for RFI/EMI resistance.
Application Scenarios:
- Power Generation: Turbines, generators, and pumps.
- Petrochemical Industry: Drilling platforms, compressors, and reactors.
- Metallurgical Industry: Rolling mills, blast furnaces, and gearboxes.
- Marine Engineering: Ship propulsion systems and offshore platforms.
- Scientific Research: Rotor dynamics studies and experimental test rigs.
Key Advantages:
- High Precision: ±0.1 μm resolution for accurate vibration and displacement measurement.
- Interchangeability: Probes, extension cables, and proximitors are fully compatible without individual calibration.
- Durability: Corrosion-resistant connectors and armor options ensure long-term reliability.
- Seamless Integration: Supports RS-232/RS-422, Modbus TCP/IP, Bently proprietary protocols, and Ethernet/IP for DCS/PLC/SCADA connectivity.
