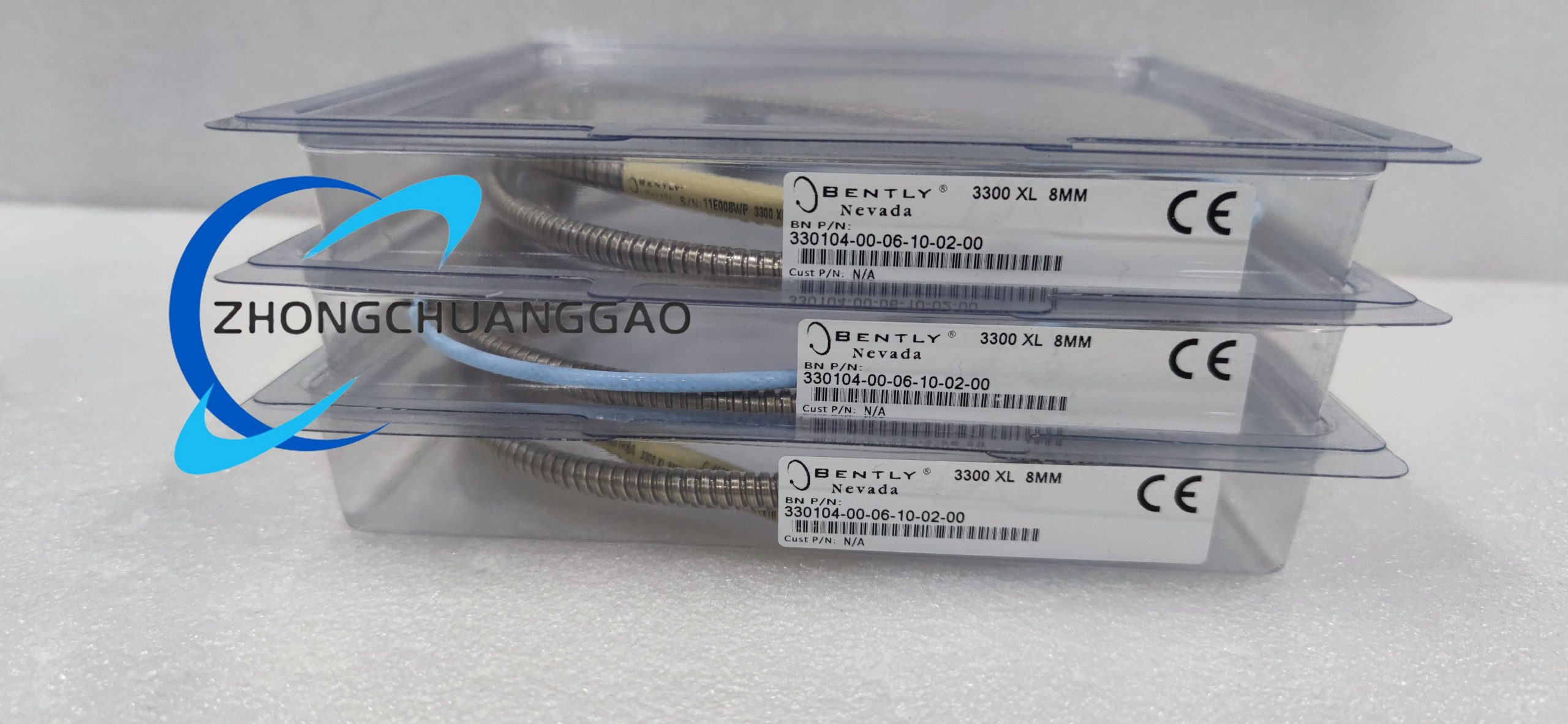

Bently 330104-00-10-10-02-00 Eddy Current Sensor Vibration Probe

Description

Functional Characteristics:

• High Precision: Non-contact measurement eliminates mechanical wear, ensuring long-term stability.
• Wide Temperature Range: Operates reliably in extreme environments, from cryogenic to high-temperature conditions.
• Robust Design: Stainless steel housing and armored cable provide protection against mechanical damage and electromagnetic interference (EMI).
• Easy Installation: Threaded mounting design simplifies integration into existing systems.
• Voltage Output: Compatible with standard monitoring systems, facilitating data acquisition and analysis.

Application Scenarios:

• Rotational Machinery Monitoring: Used in turbines, generators, compressors, and pumps to detect vibration and displacement.
• Mechanical Protection Systems: Part of turbine supervisory instrumentation (TSI) to prevent catastrophic failures.
• Industrial Automation: Integrates with PLC, DCS, and vibration monitoring modules (e.g., Bently 3500 series) for real-time condition assessment.
• Power Generation: Monitors steam and gas turbines to ensure safe operation.
• Petrochemical and Metallurgical Industries: Provides continuous vibration data for process control and equipment health management.

Compatibility:

• Works with Bently 3300XL 8mm sensor systems, including extension cables (e.g., 330130-080-00-00) and proximitors (e.g., 330180-50-00).
• Supports data transmission to Bently 3500 vibration monitoring modules, 2300/20 dual-channel monitors, and 1900/65A vibration monitors.

Environmental Requirements:

• Humidity: ≤95% RH (non-condensing) to prevent internal condensation.
• EMI Shielding: Requires proper grounding and shielding in environments with high electromagnetic interference.
• Target Surface: The measured metallic surface must have dimensions at least twice the probe diameter, with no adjacent metal objects within the range.

Maintenance:

• Regularly inspect the probe and cable for physical damage or contamination.
• Clean the probe tip to ensure accurate measurements.
• Verify calibration periodically to maintain measurement precision.
