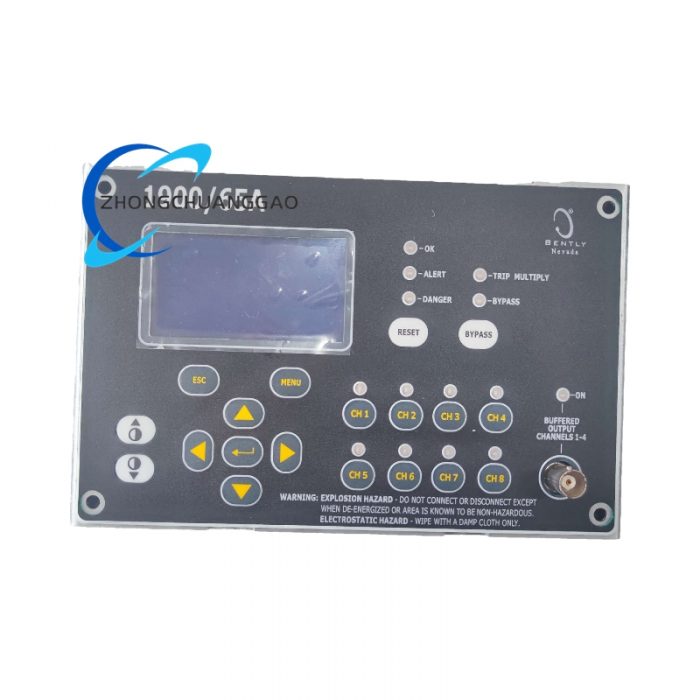

BENTLY 190065A-01-01-03-00-01

Description

• Outputs:
  • Relay Outputs: Six relay outputs, with programmable relay operation. The maximum contact voltage is 300 Vrms or 150 Vdc, and the maximum switching power is 160 W dc or 1500 VA ac.
  • Recorder Outputs: Four configurable 4 – 20 mA recorder outputs.
• Dimensions: The monitor module is 196.9 mm x 149.4 mm x 74.4 mm (7.75” x 5.88” x 2.93”).

Functional Features

• High – precision Conversion: 24 – bit ADC conversion ensures high – precision data acquisition.
• Configurable Scale Factors: The scale factors and full – scale ranges of each channel can be configured, and the sensor bias voltage can be assigned to any variable.
• Independent Alarm Settings: Independent alert and danger setpoints can be set for each channel.
• Data Buffer and Output: Each transducer channel has a buffered output, and data from any variable from any channel can be provided on any recorder output.
• Communication Options: It can be equipped with an optional Modbus gateway, which allows the monitor to directly input static variables, statuses, event lists, time, and date information to any Modbus client, including DCS, SCADA, PLC, or System 1.

Application Scenarios

• Industrial Manufacturing: Used for continuous monitoring and protection of various equipment in factories, such as motors, pumps, and compressors, to ensure the normal operation of equipment and prevent failures.
• Power Generation: Applicable to power plants, including steam turbines, generators, and other equipment, to monitor their mechanical vibration and temperature conditions and improve the reliability and efficiency of power generation systems.
