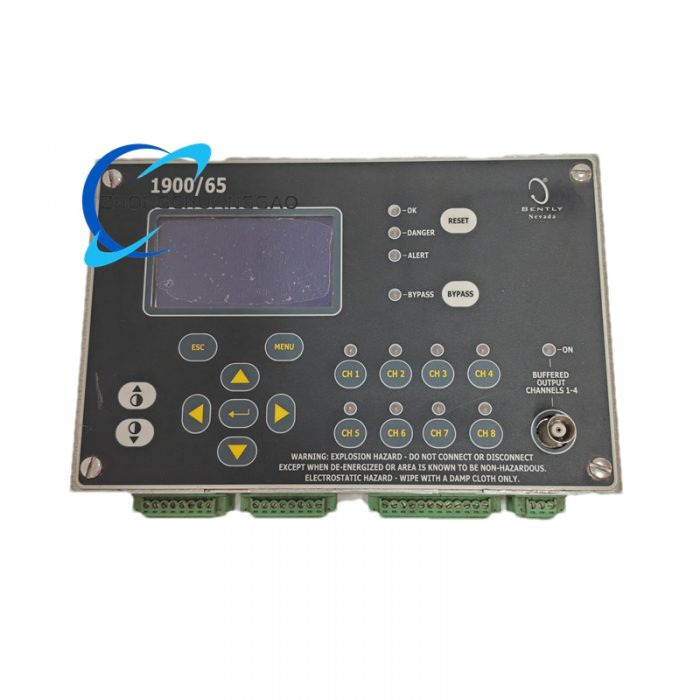

Bently 190065-00-01-03-01-01

Description

• Outputs:
  • 6 relay outputs (configurable for alarm/trip logic).
  • 4 × 4-20 mA analog outputs for recorder or PLC integration.
  • Optional buffered sensor outputs for portable data analyzers.
• Communication:
  • Modbus TCP/IP for integration with DCS, SCADA, or System 1 diagnostic software.
• Environmental Rating:
  • IP65 protection (optional IP66 with enclosure) for dust and water resistance.
  • Operates in -40°C to +70°C environments.
• Power Supply:
  • 18–36 VDC (optional 110/220 VAC with external converter).
• Mounting:
  • DIN rail or panel mounting for flexible installation.

Functional Features

• Multi-Parameter Monitoring:
  • Simultaneously tracks vibration (acceleration, velocity, displacement) and temperature to detect mechanical and thermal anomalies.
• Advanced Signal Processing:
  • Configurable filters (0.2 Hz–20 kHz) and measurement groups (e.g., peak acceleration, RMS velocity) for tailored diagnostics.
• Alarm Flexibility:
  • Two-level alarms (warning/danger) per channel with programmable logic (e.g., AND/OR conditions) to minimize false trips.
• Jump Trip Multiplier:
  • Temporarily suppresses alarms during expected high-vibration events (e.g., machine startup).
• Modular Design:
  • Optional 167699-02 display module for local touchscreen configuration and real-time monitoring.
• EMI Protection:
  • All outputs feature short-circuit and electromagnetic interference shielding for stable operation.

Application Scenarios

• Power Generation:
  • Monitors auxiliary equipment (e.g., boiler feed pumps, cooling tower fans) in thermal and hydroelectric plants.
• Oil & Gas:
  • Provides cost-effective protection for compressors, pumps, and motors in upstream/midstream operations.
• Chemical Processing:
  • Ensures safe operation of agitators, extruders, and centrifuges in hazardous environments.
• Water Treatment:
  • Protects pumps and blowers from cavitation or imbalance in municipal/industrial facilities.
• Manufacturing:
  • Optimizes preventive maintenance for conveyor systems, mixers, and rolling mills.

Key Advantages

• Economical Design:
  • Reduces upfront costs by 40–60% compared to traditional systems while maintaining critical protection functions.
• Scalability:
  • Supports up to four vibration/temperature channels, expandable via additional modules for larger systems.
• Seamless Integration:
  • Compatible with System 1 for trend analysis and predictive maintenance, enhancing long-term reliability.
• Global Certifications:
  • Meets ATEX Zone 2, CSA Class I Div 2, and IECEx standards for use in explosive atmospheres.
