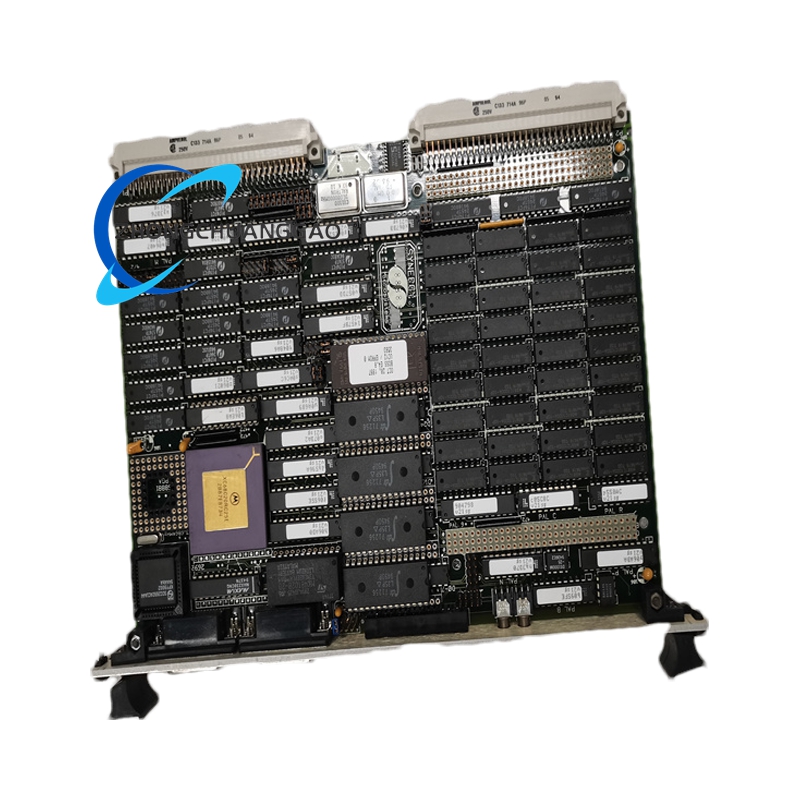

AMAT 0090-76110 VME PCB Controller – Complete Technical Profile

2. Hardware Specifications
Processor: Motorola PowerPC 7457 @ 1 GHz
Memory: 512 MB SDRAM
Storage: 2 GB Flash
I/O: Serial, parallel, USB, PCI
Power: 24 VDC nom., 25 W max.
Dimensions: 233.4 mm × 160 mm × 1.6 mm (6 U)
Weight: 0.5 kg
Construction: FR4 substrate, ENIG surface finish, 5 μm line/space, OSP solder mask

3. Environmental Ratings
Operating temperature: –40 °C to +85 °C
Humidity: 95 % RH non-condensing
Shock/Vibration: 5 g operational, 15 g transport

4. Functional Highlights
• Real-time control and data acquisition at 1 GHz
• Hot-swappable in VME64x backplanes
• On-board diagnostics via front-panel LEDs
• Firmware update via USB or Ethernet (when carrier is present)
• Gold immersion edge fingers for high-reliability connections

5. Application Scenarios
• Industrial automation: robot controllers, conveyor systems
• Semiconductor equipment: process chamber control, RF matching
• Test & measurement: high-speed data logging, signal conditioning
• Military & aerospace: ruggedized VME subsystems
• Logistics automation: AGV guidance, warehouse control

6. Mechanical & Installation Notes
• Fits standard 6 U VME card cage with rear I/O transition module
• Recommended airflow: 2 m/s across card surface
• Torque on VME ejectors: 0.9 N·m

7. Ordering Package
• 0090-76110 SBC
• VME rear-transition I/O module (optional)
• Quick-start guide
• Factory calibration and conformance certificate

The board is globally available through AMAT and authorized distributors, with full technical support and firmware maintenance contracts.
