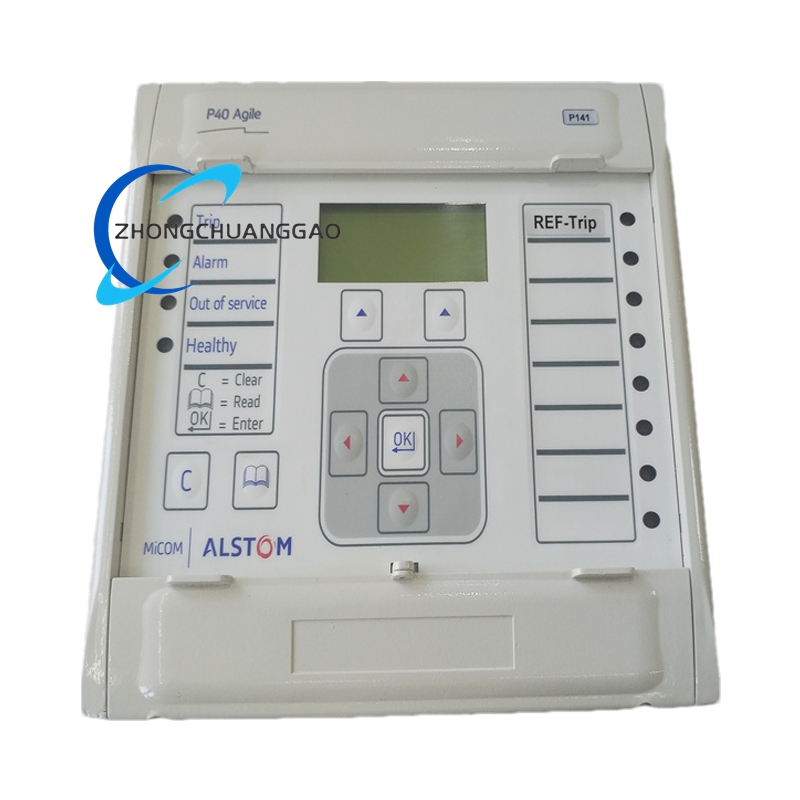

Product Short Description
Technical Specifications
-
Rated Voltage: Up to 34.5 kV
-
Rated Current: Up to 5 A
-
Operating Temperature: –40 °C to +85 °C
-
Enclosure Protection: IP65
-
Dimensions: 72 mm W × 108 mm H × 180 mm D
-
Weight: 1.2 kg
-
Mounting: Panel or DIN-rail
-
Communication Ports: RS-485, Modbus RTU, IEC 61850, DNP3
-
Case Size: 40 TE, 206 mm W × 177 mm H × 243 mm D
Description
Functional Features
-
Protection Functions
-
Four-stage non-directional/directional overcurrent (50/51)
-
Four-stage earth fault (50/51N)
-
Sensitive earth fault (64)
-
Negative-sequence overcurrent (46)
-
Under/over-voltage (27/59)
-
Under/over-frequency (81)
-
Check synchronism (25)
-
Autoreclose (79)
-
Breaker-fail (50BF)
-
Distance to fault locator
-
-
Control & Monitoring
-
Up to 48 opto-isolated binary inputs
-
Up to 8 switchgear element controls
-
Real-time measurements of V, I, P, Q, f
-
Event and disturbance recording
-
Graphical programmable logic (PSL)
-
-
Communication & Cybersecurity
-
Redundant Ethernet per IEC 61850 with RSTP, PRP, or dual-homing
-
Modbus RTU/TCP, DNP3 serial/TCP
-
Secure firmware updates and role-based access
-
-
User Interface
-
Large LCD with menu navigation
-
Remote HMI software for web-based access
-
Front USB port for setting files and firmware
-
Application Scenarios
-
Distribution Substations: Primary or backup protection for MV feeders
-
Industrial Plants: Motor feeder and tie-line protection
-
Transmission Networks: Backup overcurrent for HV lines
-
Railway Power Supplies: Traction substation feeder management
-
Renewable Integration: Wind-farm collector feeders and solar inverter points of interconnection
