Product Short Description

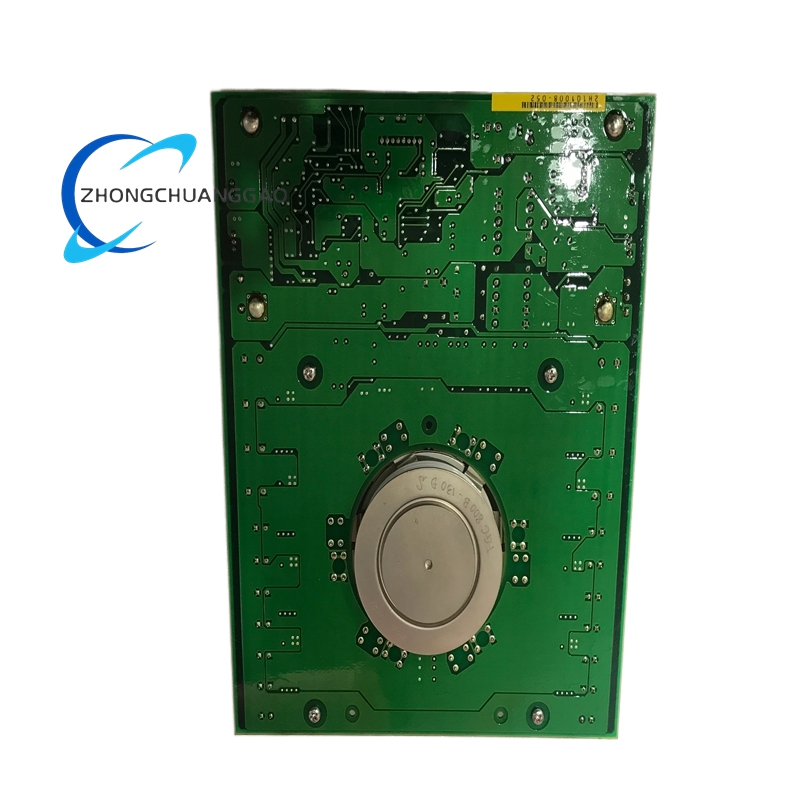

The Allen-Bradley 81001-450-53-R is a high-power, high-performance electronic module designed for medium-voltage industrial drive and power conversion systems. It is a core component of the Allen-Bradley PowerFlex 7000 series medium voltage AC drives, integrating a matched set of three IGCT (Integrated Gate Commutated Thyristor) devices. This module functions as the primary power switching stage, responsible for efficient DC to AC power conversion to control and drive large medium-voltage electric motors. Engineered for heavy-duty industrial operations, it delivers exceptional current handling capacity, low power loss, and high reliability for mission-critical applications.
Description
Technical Specifications
| Parameter | Detail |
|---|---|
| Product Type | IGCT (Integrated Gate Commutated Thyristor) Power Module |
| Compatible System | Allen-Bradley PowerFlex 7000 Medium Voltage AC Drives |
| Circuit Configuration | Matched set of three IGCT devices (3-phase inverter configuration) |
| Voltage Rating | 600 V (medium voltage drive application) |
| Rated Current | 800 A (continuous output current) |
| Peak Current | 1000 A (maximum transient current capacity) |
| Power Handling | Up to 800 kW continuous power output |
| Switching Frequency | Optimized for medium frequency operations (<1 kHz) |
| On-State Voltage Drop | Ultra-low (typically <2.5 V) for high-efficiency operation |
| Isolation Voltage | 4 kV RMS (galvanic isolation between power stage and control circuits) |
| Protection Features | Overcurrent protection, overvoltage protection, overtemperature protection, dv/dt limiting |
| Operating Temperature | -40 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Dimensions | 254 mm (W) × 406 mm (H) × 51 mm (D) |
| Weight | 0.5 kg (module board assembly) |
| Mounting | Standard chassis mounting with thermal interface for heat sinking |
| Certifications | CE, UL, CSA, RoHS compliant |
| Control Interface | Optical fiber control signal interface (high noise immunity) |
Key Functional Features
-
Advanced IGCT Technology
Incorporates state-of-the-art Integrated Gate Commutated Thyristor semiconductor devices, combining the advantages of GTOs (Gate Turn-Off Thyristors) and IGBTs (Insulated-Gate Bipolar Transistors). It delivers ultra-low on-state power losses, high current density, and reliable snubberless switching operation, significantly improving overall drive efficiency.
-
High-Power & High-Current Capacity
Rated for 800 amps continuous and 1000 amps peak current, with a power handling capability of up to 800 kW. This module provides robust power switching for controlling large medium-voltage motors, meeting the demands of heavy industrial loads with high torque requirements.
-
Matched Three-Phase Device Set
Factory-precisely matched trio of IGCT components ensures symmetrical electrical performance across all three phases. This guarantees balanced current distribution, stable output voltage waveforms, and minimized harmonic distortion in the AC drive output, critical for smooth motor operation.
-
Optical Fiber Control Interface
Features high-speed optical fiber connections for gate control and status feedback. This provides complete galvanic isolation between the low-power control system and high-power stage, eliminating electrical noise interference, ground loops, and ensuring reliable, noise-free signal transmission in harsh industrial environments.
-
Exceptional Thermal Performance
Designed with advanced thermal management materials and a low thermal resistance substrate. It efficiently dissipates generated heat during high-power switching, enabling continuous full-load operation at elevated temperatures without performance degradation or thermal runaway.
-
Comprehensive Self-Protection & Diagnostics
Integrates real-time monitoring for overcurrent, overvoltage, and overtemperature conditions. The module automatically initiates protective shutdowns during fault events to prevent damage to itself and connected drive components. It provides detailed diagnostic feedback for predictive maintenance and rapid troubleshooting.
-
High Reliability & Longevity
Constructed with industrial-grade, high-strength electronic components and a ruggedized PCB design. It undergoes rigorous quality testing and screening to ensure stable, maintenance-free operation over an extended service life in demanding conditions.
-
Easy Replacement & Integration
Engineered as a direct plug-and-play replacement part for PowerFlex 7000 series drives. Its standardized form factor, mounting, and connector interfaces simplify installation and replacement, minimizing system downtime during maintenance or repair.
Application Scenarios
-
Medium Voltage Industrial Motor Drives
Serves as the core power inverter stage in Allen-Bradley PowerFlex 7000 medium voltage drives, controlling speed, torque, and position of large AC motors (up to 800 kW) in heavy machinery, ensuring efficient and precise variable-speed operation.
-
Metallurgical & Metal Processing
Deploys in steel mills and aluminum smelters for controlling rolling mills, extruders, crushers, and furnace fans. Withstands high-temperature, high-dust environments and delivers high-power output for continuous, heavy-load motor operations.
-
Mining & Mineral Processing
Used in mining equipment such as large conveyor belts, ore crushers, grinding mills, and hoists. Provides reliable high-power switching for high-torque motor starting and speed control in harsh, remote mining locations.
-
Oil & Gas Industry
Applied in medium voltage pumps, compressors, and injection systems for upstream drilling, midstream pipeline transportation, and downstream refining. Ensures stable, efficient motor control in hazardous and high-electrical-noise environments.
-
Power Generation Plants
Controls auxiliary systems in thermal, hydro, and combined-cycle power plants, including boiler feed pumps, forced draft fans, induced draft fans, and turbine starter motors. Delivers reliable performance for continuous power plant operations.
-
Water & Wastewater Management
Drives large centrifugal pumps, blowers, and aeration systems in water treatment plants and pumping stations. Provides energy-efficient variable speed control for water distribution and wastewater processing networks.
-
Cement & Building Materials
Operates kilns, mills, and conveyor systems in cement production facilities. Handles the high starting torque and continuous load demands of heavy cement manufacturing machinery.
-
Marine & Offshore Applications
Used in propulsion systems, thrusters, and large pump motors on commercial vessels and offshore rigs. Resists salt spray, humidity, and vibration, delivering stable high-power conversion for marine and offshore motor control.
-
Paper & Pulp Manufacturing
Controls large motors for pulp digesters, paper machines, rollers, and winders. Provides precise speed and torque regulation for high-efficiency paper production processes.
