Product Introduction

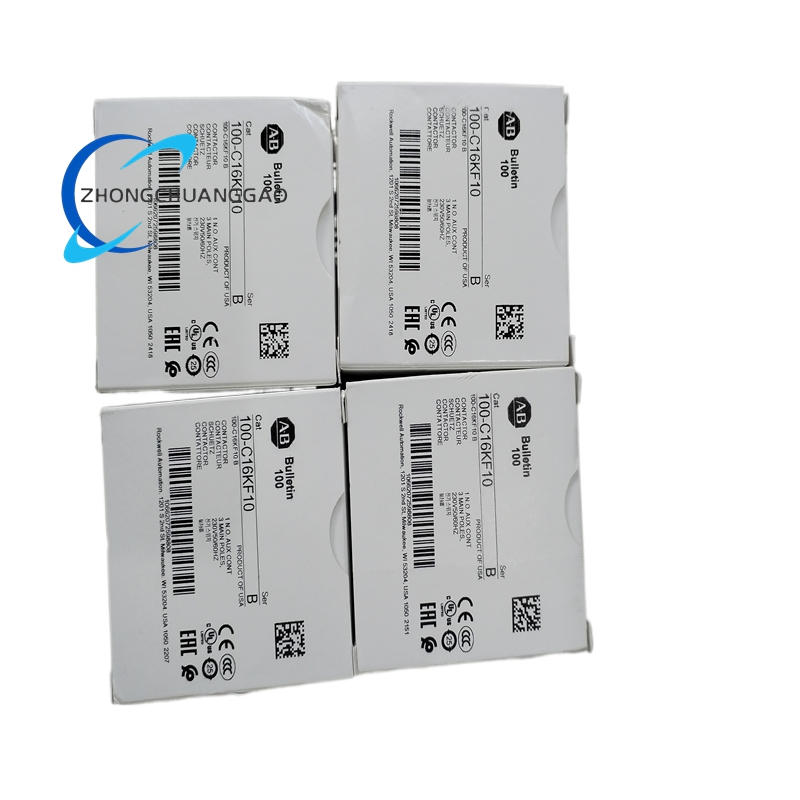

The Allen‑Bradley 100‑C16KF10 is a 3‑pole, 16A IEC‑rated contactor designed for reliable control of AC motors and other industrial electrical loads. It operates with a 230V AC 50/60Hz coil and features screw terminals for secure wiring. Built to meet global industrial standards, this contactor delivers stable performance for direct‑on‑line motor starting, load switching, and circuit control in diverse industrial environments. It integrates seamlessly with Allen‑Bradley control systems and accessories, providing a robust solution for automation and power distribution applications.
Description
Technical Specifications
Electrical Ratings
- Rated Operational Current (AC‑3): 16A
- Rated Contact Voltage: 690V AC
- Coil Voltage: 230V AC, 50/60Hz
- Power Rating (Motor): 7.5kW at 230V AC
- Number of Poles: 3 Normally Open (NO) main poles
- Auxiliary Contact Configuration: 1 Normally Open (NO) auxiliary contact, 0 Normally Closed (NC) contacts
- Terminal Type: Screw terminals
- Coil Termination: Line‑side mounted
- Coil Power Consumption: 70–200VA (inrush), 8–16VA (holding)
- Electrical Life: 1.3 million operations at 400V AC
- Mechanical Life: Up to 10 million operations
Physical & Mechanical Parameters
- Dimensions: 81mm (L) × 45mm (W) × (standard IEC contactor height)
- Weight: Approximately 0.8kg
- Mounting: Standard DIN‑rail or panel mounting
- Protection Class: IP2X (finger‑safe terminal design)
Environmental & Compliance
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% RH (non‑condensing)
- Standards Compliance: IEC 60947‑4‑1, EN 60947‑4‑1, UL 508, CSA 22.2 No. 14
- Certifications: UL, CSA, CE marking
Compatibility
- Overload Relay Compatibility: Works with Allen‑Bradley electronic and bimetallic overload relays
- Accessory Compatibility: Supports front‑mount auxiliary contacts, interlocks, and surge suppressors
Key Features
- High‑Performance Switching: 16A AC‑3 rating for reliable motor and load control
- Wide Voltage Compatibility: 690V AC contact rating supports global power systems
- Secure Wiring: Screw terminals ensure stable, vibration‑resistant connections
- Finger‑Safe Design: IP2X protection enhances operator safety
- Long Service Life: Extended electrical and mechanical life for minimal maintenance
- Flexible Integration: Compatible with standard control relays and PLC systems
- Global Compliance: Meets international safety and performance standards
- Compact Form Factor: Space‑saving design for dense control panel layouts
- Low Power Consumption: Efficient coil design reduces energy usage in holding state
- Versatile Mounting: DIN‑rail and panel mounting options for flexible installation
Application Scenarios
- Motor Control: Direct‑on‑line starting and stopping of 7.5kW AC motors in manufacturing equipment
- Industrial Machinery: Control of conveyors, pumps, fans, and compressors in production lines
- HVAC Systems: Switching for heating, ventilation, and air conditioning units in commercial buildings
- Material Handling: Control of forklifts, hoists, and automated storage systems
- Packaging Equipment: Reliable switching for filling, sealing, and labeling machines
- Water & Wastewater Treatment: Pump and valve control in treatment plants
- Food & Beverage Processing: Motor control for mixers, ovens, and conveyor systems
- Agricultural Equipment: Control of irrigation pumps, grain handling machinery, and farm automation
- Building Automation: Lighting, power distribution, and elevator control systems
- OEM Equipment: Integration into original equipment manufacturer machinery for global markets
