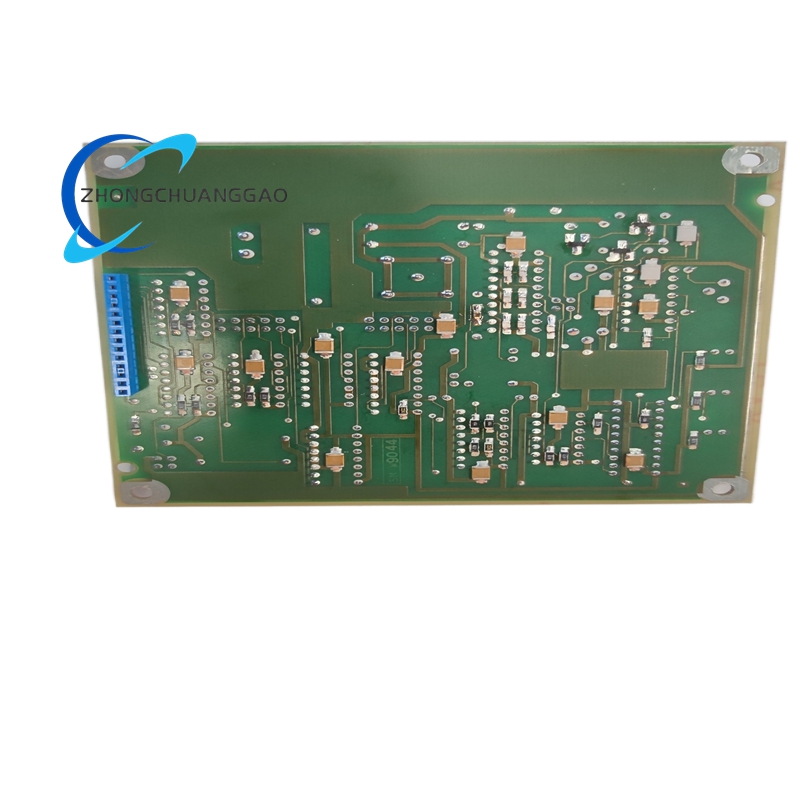

ABB YPC104B YT204001-BT Industrial FSK Modem Communication Board

Description

Technical Specifications

• Product Type: FSK Modem Communication Printed Circuit Board
• Communication Protocol: FSK (Frequency-Shift Keying) modulation
• Primary Interface: RS-485 serial communication port
• Data Transfer Rate: Up to 115.2 kbps (standard); supports scalable baud rates
• Operating Voltage: 24 V DC (nominal)
• Power Consumption: 4 W (typical)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5% – 95% RH (non-condensing)
• Vibration Resistance: 15g (10 – 2000 Hz)
• Shock Resistance: 150g (11 ms duration)
• Dimensions: 110 mm x 115 mm x 22 mm (L x W x H)
• Weight: 0.1 kg
• Mounting: Direct PCB mounting within ABB control system racks
• Protection Rating: IP20 (suitable for indoor, cabinet-mounted installations)
• Country of Origin: Sweden
• Compliance: CE, RoHS, and industrial EMC standards

Key Features

• FSK Modulation Technology: Utilizes robust FSK modulation for reliable data transmission over long-distance twisted-pair cables, minimizing signal degradation and interference in industrial environments.
• RS-485 Interface: Features a high-performance RS-485 port, enabling multi-drop communication and long-distance connectivity (up to 1200 meters) with industrial field devices.
• High-Speed Data Transfer: Supports data rates up to 115.2 kbps, ensuring efficient and timely exchange of process data and control signals.
• Industrial-Grade Durability: Built with high-quality components and a rugged design to withstand extreme temperatures, vibration, and electrical noise common in industrial settings.
• Low Power Operation: Consumes only 4 W of power, reducing energy usage and heat generation within control cabinets.
• Compact Form Factor: Space-efficient PCB design allows for easy integration into ABB DCS and PLC system racks without requiring additional mounting space.
• Plug-and-Play Compatibility: Pre-configured for direct integration with ABB’s industrial control systems, simplifying installation and commissioning processes.
• EMC Compliance: Meets strict electromagnetic compatibility standards, ensuring reliable operation without disrupting adjacent electronic equipment.
• Long-Term Stability: Delivers consistent communication performance over extended operational lifecycles, minimizing maintenance requirements.
• Wide System Compatibility: Seamlessly integrates with ABB’s DCS platforms (e.g., Advant, Master) and PLC systems, as well as third-party industrial devices supporting RS-485 and FSK protocols.

Application Scenarios

• Process Automation: Reliable communication between DCS controllers and field instruments in oil refineries, chemical plants, and pharmaceutical manufacturing.
• Power Generation & Distribution: Data transmission for control and monitoring in thermal power plants, hydroelectric facilities, and smart grid distribution systems.
• Water & Wastewater Treatment: Connecting PLCs to sensors, actuators, and control valves in water treatment plants and sewage management systems.
• Mining & Metallurgy: Industrial communication for heavy-duty equipment control in mining operations and metal processing facilities.
• Manufacturing & Assembly: Integration with automated production lines, conveyor systems, and robotic workcells in automotive and general manufacturing.
• Oil & Gas Industry: Remote monitoring and control of drilling equipment, pipeline systems, and offshore production platforms.
• Marine & Offshore: Communication for shipboard automation systems and offshore platform control networks.
• Building Automation: Connecting HVAC control systems, fire alarm panels, and energy management systems in commercial and industrial buildings.
• Food & Beverage Processing: Ensuring reliable data exchange in automated food processing and packaging lines.
• Cement & Material Processing: Control communication for kilns, mills, and material handling systems in cement production plants.
