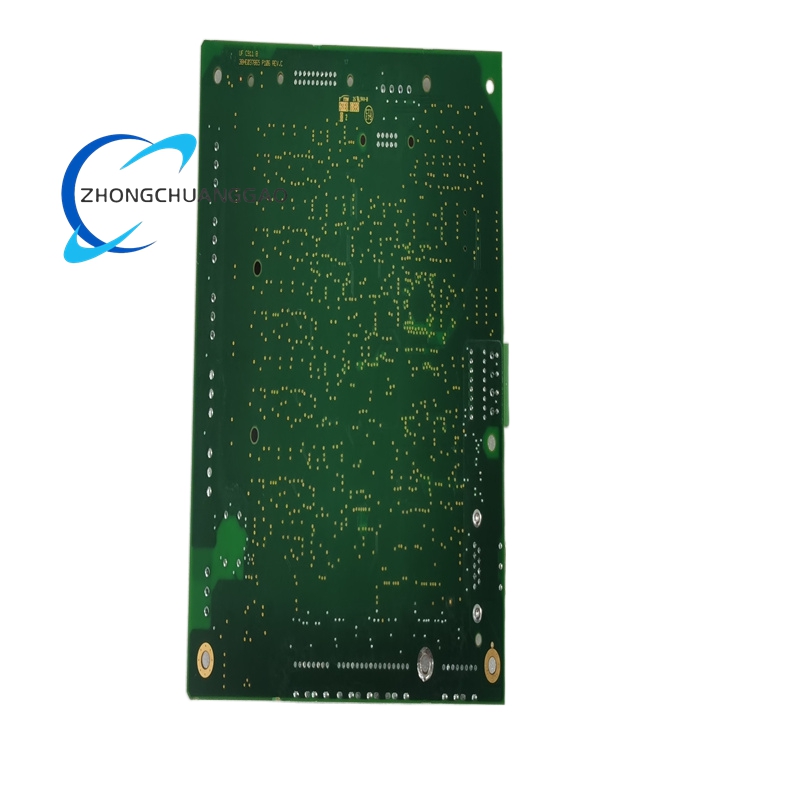

The ABB 3BHE032285R0102 (XVC772A102) is a robust, industrial‑grade high‑voltage distribution board designed for reliable power management, voltage regulation, and equipment protection in high‑power industrial drive and automation systems. As a core component of ABB’s medium‑voltage drive and power conversion ecosystem, it integrates precision high‑voltage monitoring, safe power distribution, and comprehensive fault protection logic to ensure stable, secure operation of critical electrical components in harsh industrial environments. Built with industrial‑grade components and rigorous quality validation, this module delivers exceptional performance, electrical isolation, and long‑term reliability for mission‑critical power applications.
Description
Technical Specifications
Electrical & Power Parameters
- Supply Voltage: 24 VDC (nominal, 18–32 VDC wide input range)
- Power Consumption: ≤ 18 W (typical operation)
- High‑Voltage Rating: Up to 322 kV for high‑voltage measurement and distribution
- Isolation Voltage: 2500 V AC (channel‑to‑bus isolation); 1500 V AC (channel‑to‑channel isolation)
- Insulation Resistance: ≥ 10¹⁰ Ohms for superior electrical isolation
- Measurement Accuracy: ±0.05% full‑scale at 20°C for precise voltage monitoring
- Input Signal Types: High‑voltage analog monitoring signals, digital control signals
- Output Signal Types: Power distribution control signals, fault indicators, system status outputs
- Protection Features: Over‑voltage, over‑current, short‑circuit, over‑temperature, and reverse polarity protection
- EMC Compliance: IEC 61800‑6‑2, IEC 61800‑6‑4 (industrial electromagnetic compatibility standards)
Mechanical & Environmental
- Form Factor: Compact PCB module for rack‑mount installation in high‑voltage drive cabinets
- Dimensions: 300 mm × 200 mm × 100 mm (L × W × H)
- Weight: Approximately 2 kg
- Operating Temperature: -40°C to +70°C (extended industrial range)
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% RH (non‑condensing)
- Ingress Protection: IP67 (dust‑tight and water‑resistant for harsh environments)
- Vibration/Shock: Complies with IEC 60068‑2‑6 and IEC 60068‑2‑27 industrial standards
- Environmental Coating: Conformal coating for resistance to moisture, salt spray, and industrial contaminants
- Certifications: CE, RoHS, ISO 9001, and IEC 61800‑7
Processing & Communication
- Processing Speed: Sub‑millisecond response for real‑time high‑voltage control and fault detection
- Communication Interfaces: RS‑485 (Modbus RTU), CANopen, and proprietary ABB drive bus connections
- Protocol Support: Modbus RTU, CANopen, and ABB ACS drive native communication protocols
- System Compatibility: Fully integrated with ABB ACS2000 and ACS6000 series medium‑voltage drive systems
- Software Compatibility: Configurable via ABB DriveStudio and ACS drive commissioning tools
Key Features
- High‑Voltage Capability: Handles up to 322 kV for reliable operation in high‑power industrial systems.
- Precision Voltage Monitoring: Delivers ±0.05% measurement accuracy for precise high‑voltage regulation.
- Superior Electrical Isolation: High insulation resistance and voltage isolation ensure personnel and equipment safety.
- Industrial‑Grade Ruggedness: IP67 protection and wide temperature range enable operation in extreme environments.
- Fast Fault Response: Sub‑millisecond processing triggers immediate protection against electrical faults.
- Comprehensive Protection: Multi‑layered safeguards prevent damage from over‑voltage, over‑current, and short‑circuit conditions.
- Seamless System Integration: Direct compatibility with ABB medium‑voltage drives simplifies installation and commissioning.
- Advanced Diagnostics: Built‑in fault logging and status monitoring enable proactive maintenance and minimal downtime.
- Long‑Term Reliability: Industrial components and rigorous testing ensure extended service life with minimal maintenance.
Application Scenarios
- Medium‑Voltage Drive Systems: Core high‑voltage distribution and protection for ABB ACS2000 and ACS6000 series medium‑voltage drives.
- Power Generation: High‑voltage control for generators, transformers, and auxiliary systems in thermal, hydroelectric, and wind power plants.
- Oil & Gas Refining: Power distribution and protection for high‑voltage motors in pumps, compressors, and extruders.
- Metallurgical Industry: High‑voltage drive control for steel rolling mills, electric arc furnaces, and continuous casting systems.
- Mining & Cement: Power management for crushers, mills, kilns, and conveyors in mining operations and cement plants.
- Marine & Offshore: High‑voltage distribution for propulsion and auxiliary systems on large vessels and offshore platforms.
- Pulp & Paper: Control for high‑voltage motors in paper machines, digesters, and material handling systems.
- Water & Wastewater: Power regulation for large pumps and blowers in water treatment and distribution networks.
