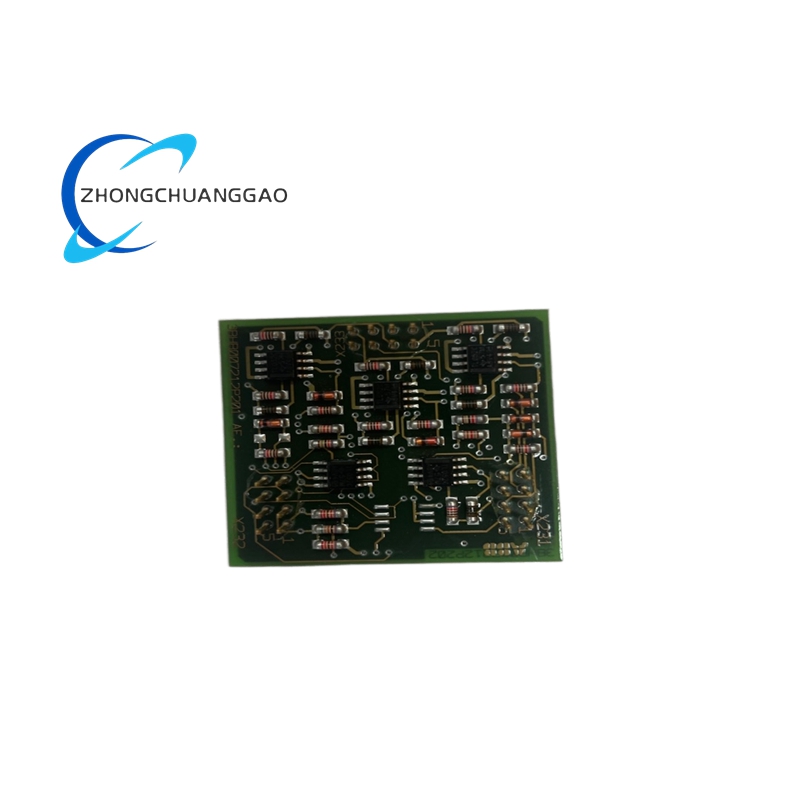

The ABB XVC768AE117 (3BHB007211R117) is a precision current adjustment subprint module designed for integration within ABB’s high-power industrial control systems, particularly for power conversion and drive applications. It functions as a dedicated current regulation and calibration component, providing fine-tuning capabilities for current sensing and control circuits in power electronics assemblies. This module ensures accurate current measurement, stable regulation, and reliable performance in high-voltage, high-current industrial environments. Manufactured with high-precision components and robust circuit design, it delivers consistent performance and long-term stability in demanding industrial automation setups.
Description
Technical Specifications
- Product Type: Current Adjustment Subprint Module
- Compatible Systems: ABB high-power drive systems, power conversion units, and industrial control assemblies
- Function: Precision current calibration, adjustment, and sensing
- Isolation Voltage: 2500 V AC RMS (circuit-to-system isolation)
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5% – 95% RH (non-condensing)
- Vibration Resistance: 15g (10 – 2000 Hz)
- Shock Resistance: 150g (11 ms duration)
- Dimensions: Compact subprint form factor (standard for ABB power electronics assemblies)
- Weight: 0.15 kg
- Country of Origin: Switzerland
- Certifications: CE, RoHS compliant
- Mounting: Direct PCB mounting within ABB power electronic assemblies
Key Features
- Precision Current Adjustment: Delivers highly accurate current calibration and fine-tuning for power electronics circuits, ensuring precise current control and measurement.
- High Isolation Protection: 2500 V AC RMS isolation safeguards control circuits from high-voltage transients and ground loops in power conversion systems.
- Robust Industrial Design: Engineered to withstand extreme temperatures, vibration, and shock for reliable operation in harsh industrial power environments.
- Compact Subprint Form Factor: Space-efficient design enables seamless integration into ABB’s power drive and conversion assemblies without additional footprint.
- Long-Term Stability: High-quality components and precision manufacturing ensure consistent performance and minimal drift over extended operational lifecycles.
- Easy Calibration: Designed for straightforward current adjustment and calibration during system setup and maintenance.
- Environmental Compliance: Meets RoHS and WEEE directives for safe and sustainable industrial deployment.
- Seamless System Integration: Direct compatibility with ABB’s power electronics and drive systems ensures plug-and-play functionality and reliable performance.
Application Scenarios
- High-Power Drive Systems: Current calibration and adjustment in variable frequency drives (VFDs) for industrial motors and heavy machinery.
- Power Conversion Units: Precision current regulation in rectifiers, inverters, and power supply systems for industrial power distribution.
- Industrial Automation: Current sensing and control in high-power automation equipment, including conveyor systems and manufacturing machinery.
- Power Generation: Current adjustment in generator excitation systems and power plant control assemblies.
- Oil & Gas Industry: Current regulation in high-power equipment for drilling, pumping, and processing operations.
- Mining & Metallurgy: Precision current control in heavy-duty mining equipment and metallurgical processing systems.
- Marine & Offshore: Current adjustment in shipboard power systems and offshore platform power conversion units.
- Renewable Energy: Current calibration in solar inverter systems and wind turbine power converters.
