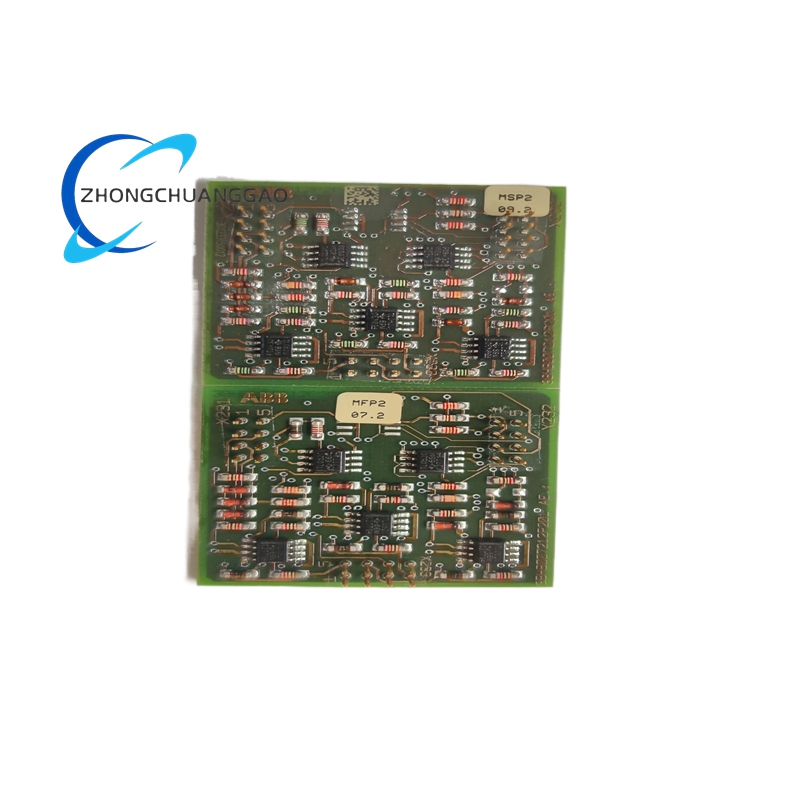

The ABB XVC768AE101 (3BHB007211R102) is a high-performance, industrial-grade analog input/output module designed for integration with ABB’s advanced automation systems, including AC800M PLCs and Advant OCS distributed control systems. It functions as a critical interface between field sensors, actuators, and the control system, enabling accurate conversion of analog process signals (voltage, current) to digital data for monitoring and precise digital-to-analog signal generation for control outputs. Built with robust industrial components and advanced signal processing technology, this module delivers exceptional accuracy, reliability, and noise immunity, making it ideal for demanding industrial environments where precise data acquisition and control are essential.
Description
Technical Specifications
- Product Type: Analog Input/Output Module
- Compatible Systems: ABB AC800M PLC, Advant OCS DCS
- Input Channels: 8 independent, galvanically isolated analog input channels
- Input Signal Ranges:
- Voltage: 0–10 V DC, -10–+10 V DC
- Current: 0–20 mA, 4–20 mA
- Output Channels: 8 independent analog output channels
- Output Signal Ranges:
- Voltage: 0–10 V DC, -10–+10 V DC
- Current: 0–20 mA, 4–20 mA
- Resolution: 16 bits (65536 steps) for both input and output
- Accuracy: ±0.01% of full scale (FS)
- Conversion Time: Typical 500 µs per channel
- Isolation Voltage: 1500 V AC RMS (channel-to-channel and channel-to-system bus)
- Power Supply: 24 V DC (±20% tolerance)
- Power Consumption: Typical 5.2 W
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% RH (non-condensing)
- Vibration Resistance: 10g (10–150 Hz)
- Shock Resistance: 100g (11 ms duration)
- Dimensions: 228 mm (L) × 133 mm (H) × 35 mm (W)
- Weight: Approx. 0.5 kg
- Mounting: Standard 35 mm DIN rail mounting
- Protection Rating: IP20 (indoor cabinet installation)
- Certifications: CE, UL, ATEX (for hazardous area applications)
- Environmental Compliance: WEEE, RoHS
- Diagnostics: Built-in channel fault detection, signal integrity monitoring, and self-test functions
Key Features
- 8-Channel Bidirectional Analog Interface: Provides 8 isolated analog input and 8 analog output channels, enabling simultaneous data acquisition and control signal generation in a single module.
- High Precision & Resolution: Delivers 16-bit resolution and ±0.01% accuracy for both input and output, ensuring ultra-precise measurement and control of critical process parameters.
- Wide Signal Compatibility: Supports both voltage (0–10 V, -10–+10 V) and current (0–20 mA, 4–20 mA) signals for inputs and outputs, accommodating a vast range of industrial sensors and actuators.
- Galvanic Isolation: Robust 1500 V isolation eliminates ground loops and protects the control system from electrical noise and transient voltages.
- Fast Signal Conversion: High-speed conversion (500 µs per channel) ensures real-time data acquisition and responsive control output for dynamic process management.
- Seamless System Integration: Directly compatible with ABB AC800M and Advant OCS platforms, supporting easy system expansion and I/O capacity scaling.
- Comprehensive Diagnostics: Integrated self-diagnostics and fault monitoring enable proactive maintenance and rapid troubleshooting, minimizing downtime.
- Industrial-Grade Durability: Rugged construction withstands extreme temperatures, vibration, and shock, ensuring reliable operation in harsh industrial environments.
- Hazardous Area Suitability: ATEX certification allows safe deployment in Zone 1/2 classified areas with explosive gases or dust.
- Easy Installation & Configuration: DIN rail mounting and plug-and-play design simplify installation, while user-friendly configuration tools support quick setup.
- Long Service Life: High-quality components and robust design ensure extended operational life with minimal maintenance requirements.
Application Scenarios
- Process Automation: Continuous monitoring and control of temperature, pressure, flow, level, and pH in chemical, petrochemical, and pharmaceutical plants.
- Power Generation: Monitoring of turbine vibration, generator temperature, boiler pressure, and auxiliary equipment parameters in thermal, hydro, and wind power plants.
- Oil & Gas Industry: Wellhead monitoring, pipeline pressure control, and refinery process parameter measurement in onshore and offshore facilities.
- Water & Wastewater Treatment: Monitoring and control of water flow, level, pH, and turbidity in treatment plants and distribution networks.
- Mining & Metallurgy: Measurement and control of ore processing parameters, furnace temperature, and conveyor belt load in mining and metal smelting operations.
- Manufacturing & Assembly: Quality control monitoring of machine tool performance, production line speed, and material handling equipment in automotive and general manufacturing.
- Food & Beverage: Precise monitoring and control of temperature, pressure, and flow in hygienic production processes and packaging lines.
- Building Automation: HVAC system monitoring, energy management, and facility control in commercial and industrial buildings.
- Marine & Offshore: Monitoring and control of shipboard propulsion systems, cargo handling equipment, and offshore drilling platform parameters.
- Hazardous Area Installations: Safe monitoring and control of process variables in Zone 1/2 classified industrial sites with explosive atmospheres.
