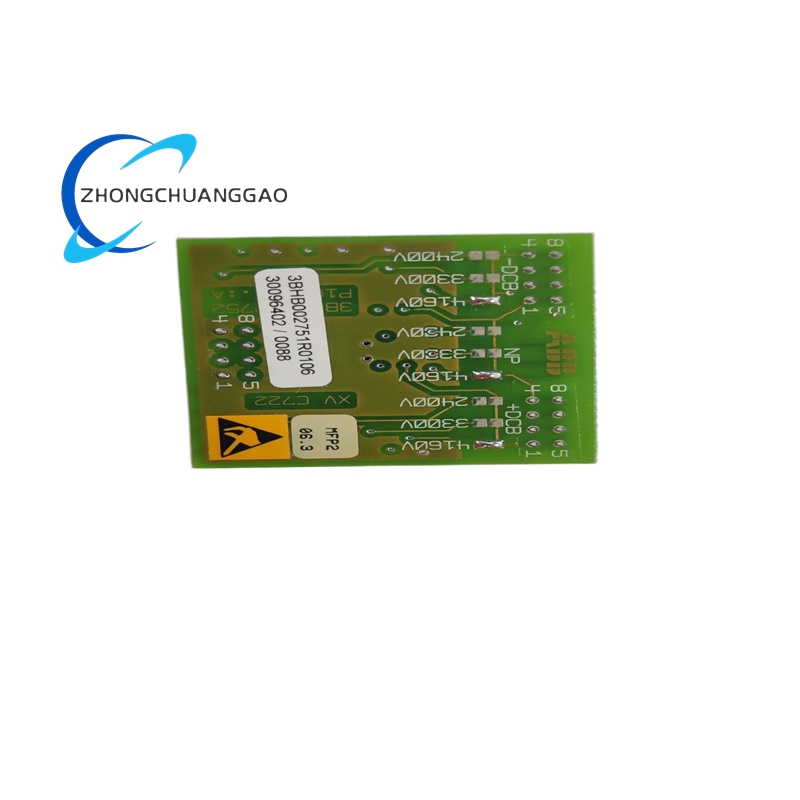

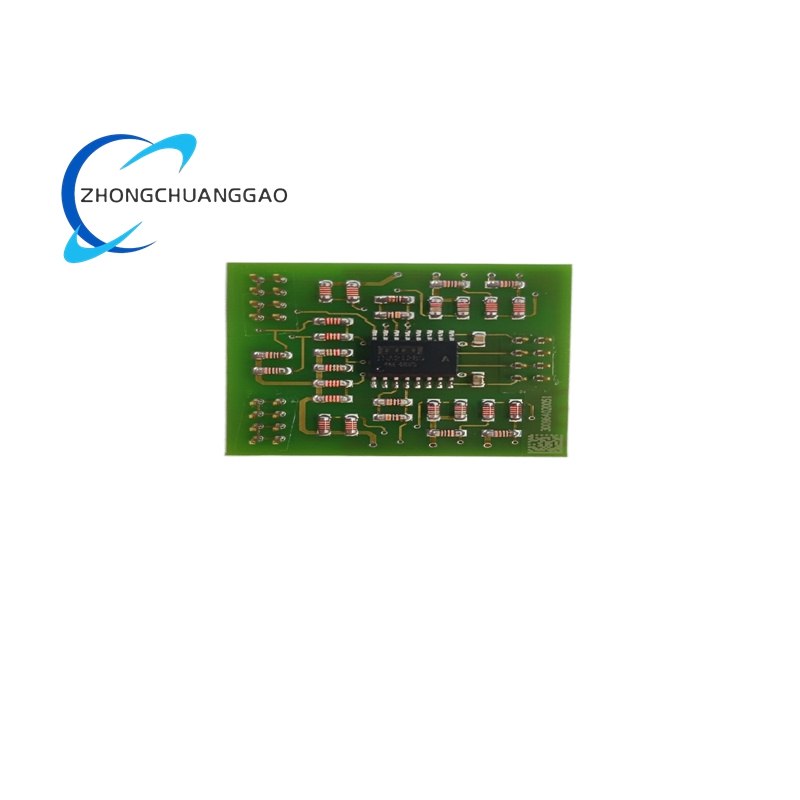

ABB XVC722 3BHB002751R0106 Series Rectifier Supervision Board (SVA)

Description

Technical Specifications

Electrical Parameters

• Input Voltage: 85–264 VAC (wide universal input)
• Output Voltage: 5–24 VDC (regulated auxiliary power)
• Output Current: 0–10 A (continuous)
• Maximum Power Output: 240 W
• Monitoring Functions: Real‑time measurement of rectifier DC voltage, AC input current, and semiconductor junction temperature
• Isolation Voltage: 2.5 kV AC (channel‑to‑bus and power‑to‑signal isolation)
• EMC Compliance: IEC 61800‑6‑2, IEC 61800‑6‑4 (industrial EMC standards)

Communication & Interface

• Communication Protocol: Proprietary high‑speed serial bus for communication with the ACS1000 drive controller
• Control Interface: Digital I/O for fan control, fault signaling, and status indication
• Diagnostic Interface: LED indicators for power, communication status, and fault codes
• Compatibility: Exclusive integration with ABB ACS1000 medium‑voltage drive platforms

Mechanical & Environmental

• Form Factor: Industrial PCB module with standard drive mounting brackets
• Operating Temperature: -10°C to +60°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5%–95% RH (non‑condensing)
• Vibration/Shock: Complies with IEC 60068‑2‑6 and IEC 60068‑2‑27
• Ingress Protection: IP20 (suitable for indoor drive cabinet installation)
• Certifications: CE, IEC 61800‑7, ATEX (for hazardous area drive installations)

Key Features

• Precision Rectifier Monitoring: Continuously measures and regulates rectifier voltage, current, and temperature to maintain optimal conversion efficiency.
• Integrated Fan Control: Manages rectifier cooling fans based on real‑time temperature data, ensuring thermal stability and extending component life.
• Comprehensive Protection Mechanisms: Implements over‑voltage, over‑current, over‑temperature, and phase‑loss protection to safeguard rectifier semiconductors and prevent system damage.
• Fast Fault Detection & Signaling: Instantly detects abnormal operating conditions, triggers protective actions, and transmits detailed fault codes to the main controller for rapid diagnostics.
• High‑Reliability Industrial Design: Built with industrial‑grade components for continuous operation in harsh industrial environments with high vibration and temperature fluctuations.
• Seamless Drive Integration: Plug‑and‑play design for direct installation into ACS1000 drive cabinets, with pre‑configured communication and control interfaces.
• Low Power Consumption: Efficient power conversion design minimizes energy loss and heat generation within the drive system.
• Maintenance‑Free Operation: Solid‑state design with no moving parts (except controlled fans) ensures long service life with minimal maintenance requirements.
• Hazardous Area Compatibility: ATEX certification enables deployment in explosive gas and dust environments where medium‑voltage drives are utilized.

Application Scenarios

• Medium‑Voltage Industrial Drives: Core component in ABB ACS1000 drives for controlling high‑power motors (up to 10 MW) in heavy industry.
• Pump & Fan Systems: Drives for large water pumps, cooling fans, and ventilation systems in power plants, refineries, and chemical facilities.
• Material Handling & Processing: Conveyor systems, extruders, and mixers in mining, cement, and metal processing plants.
• Power Generation: Boiler feed pumps, turbine auxiliaries, and generator excitation systems in thermal and hydroelectric power plants.
• Oil & Gas Industry: Compressors, pumps, and processing equipment in onshore refineries and offshore platforms.
• Marine & Offshore: Propulsion drives and auxiliary systems in large vessels and offshore drilling rigs.
• Water & Wastewater Treatment: High‑capacity pumps and aeration systems in municipal water treatment facilities.
• Renewable Energy: Wind turbine converters and solar inverter control systems requiring robust medium‑voltage power conversion.
