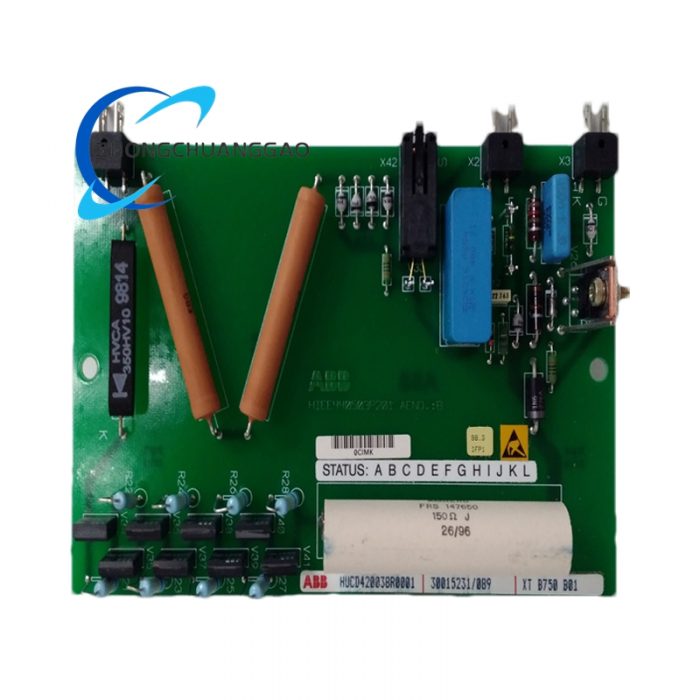

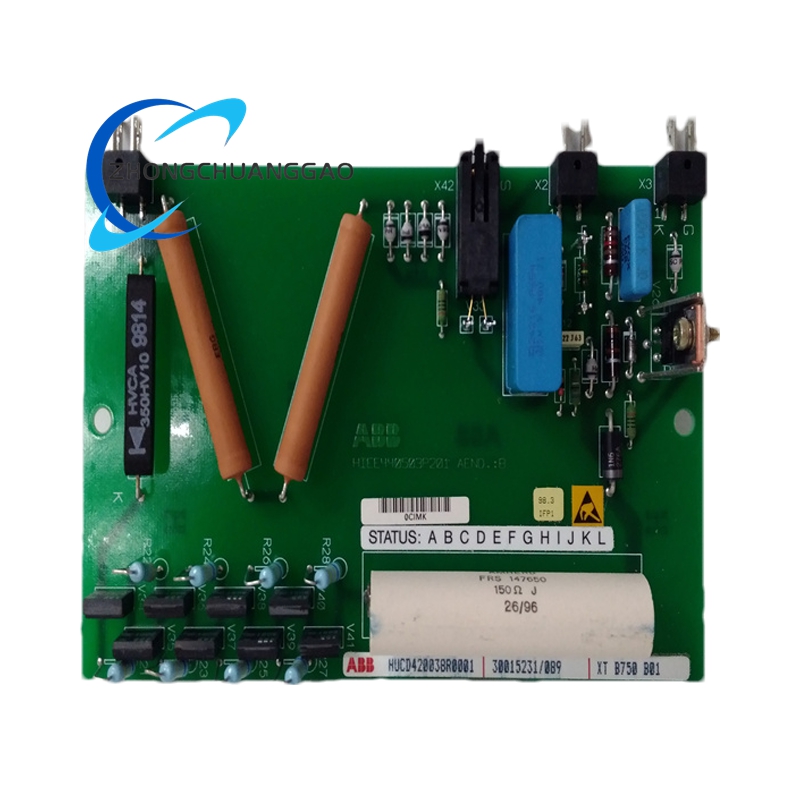

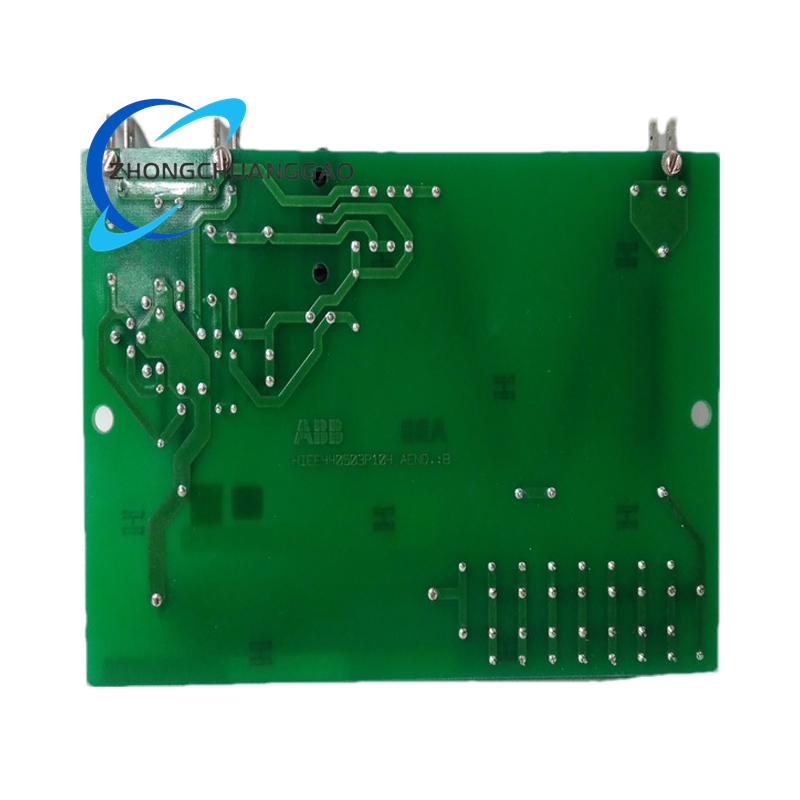

ABB XTB750B01 HUCD420038R0001 HIEE440503P201

Description

• Protection Features:
  • Overvoltage, undervoltage, and delay protection
  • Waveform distortion-free output
• Dimensions: 450mm × 300mm × 200mm (compact for high-power applications)
• Weight: Approximately 25 kg
• Certifications: CE, UL, IEC 62109 (compliant with global safety standards)

Functional Characteristics

• High-Precision Control: 12-bit resolution ensures accurate analog output for critical processes.
• Multi-Protocol Support: Seamlessly integrates with PLCs, SCADA systems, and industrial networks.
• Robust Design: Withstands extreme temperatures, vibrations, and electrical noise.
• Modular Architecture: Enables easy installation, replacement, and system scaling.
• Real-Time Monitoring: Provides detailed feedback on system status and performance.
• Fault Diagnosis: Built-in self-monitoring and alert systems for rapid troubleshooting.

Application Scenarios

• Process Control: Regulates temperature, pressure, and flow in chemical, petrochemical, and gas industries.
• Equipment Monitoring: Tracks motor current, voltage, and temperature in manufacturing and mining.
• Data Acquisition: Collects sensor data for production management and decision-making.
• Power Management: Stabilizes voltage in renewable energy systems and microgrids.
• Motor Drives: Powers industrial motors with variable frequency control.

Industry Applications

• Oil & Gas: Pipeline monitoring, drilling rig control, and refinery process optimization.
• Power Generation: Solar farms, wind turbines, and hydroelectric plant automation.
• Metallurgy: Steel production, rolling mills, and non-ferrous metal processing.
• Water Treatment: Sewage treatment, water supply systems, and environmental monitoring.
• Transportation: Electric vehicle charging stations and rail power systems.

Advantages

• Reliability: Operates stably in extreme conditions with minimal downtime.
• Scalability: Modular design supports future system expansions.
• Energy Efficiency: High conversion rates reduce operational costs.
• Safety: Complies with international standards for electrical and thermal protection.
• Ease of Maintenance: Diagnostic tools and modular components simplify upkeep.

Software & Tools

• Configuration: ABB Ability™ System 800xA for parameter setup and monitoring.
• Diagnostics: Modbus Poll, ABB Power Grid View, and third-party tools for real-time alerts.

Compatibility

• Integrates with ABB’s DCS, PLC, and motor drive systems.
• Supports third-party devices via standard industrial protocols (Ethernet, Modbus, CAN).
