Product Short Description
Product Introduction

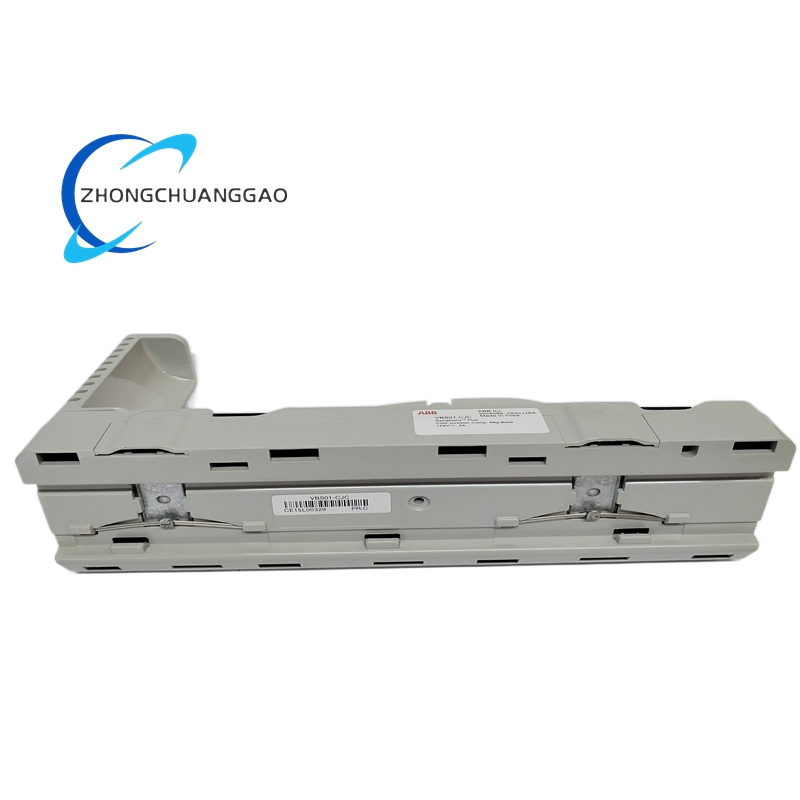

The ABB VBS01 is a high‑reliability vertical column mount termination base designed for ABB Symphony Plus SD Series I/O systems. It serves as a critical interface component that provides mechanical mounting, electrical connection, and power distribution for single I/O modules. The VBS01‑EPD variant features external field power input for field devices and system‑powered analog output (AO) channels. This termination base integrates 2×8 signal terminals and requires 2×16‑pin 5mm pluggable connectors for secure wiring. It is engineered to support a wide range of I/O modules, including analog input (AI), analog output (AO), digital input (DI), digital output (DO), pulse input (PI), and advanced diagnostic (AD) modules. Built with industrial‑grade materials, it ensures stable operation in demanding process control environments and facilitates easy installation, maintenance, and system expansion.
Description
Technical Specifications
- Product Type: Vertical Column Mount Termination Base
- Series: VBS01 (Symphony Plus SD Series I/O)
- Model Variants: VBS01‑EPD (External Power Inputs); VBS01‑FPH (Field Power, Hot‑swap)
- Mounting: Vertical column mount for single I/O module
- Power Configuration:
- VBS01‑EPD: Externally powered from field devices; System‑powered for AO channels
- VBS01‑FPH: Field‑powered with hot‑swap capability
- Terminal Configuration: 2×8 signal terminals; Dedicated fuse terminal blocks for field power input
- Connector Requirement: 2×16‑pin 5mm pluggable connectors
- Compatible I/O Modules: AI01, AI02, AI05, AO01, AO02, AO05, DI01, DI02, DI03, DI04, DO01, DO02, PI01, AD01, AD02
- Dimensions:
- Net Depth/Length: 270 mm
- Net Height: 130 mm
- Net Width: 140 mm
- Net Weight: Approx. 0 kg (base unit; weight varies with installed modules)
- Environmental Compliance: WEEE Category 5 (Small Equipment)
- Certifications: CE, IEC 61131‑2, ATEX (for hazardous area installations)
- Protection: Short‑circuit protection via integrated fuse terminal blocks
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -50°C to +90°C
- Humidity: 5%–95% RH (non‑condensing)
- Vibration Resistance: 10g (10–150 Hz)
- Shock Resistance: 100g (11 ms duration)
Key Features
- Universal I/O Compatibility: Supports all standard SD Series I/O modules, enabling flexible system configuration for diverse process signals.
- Vertical Column Mount Design: Space‑saving vertical installation optimizes cabinet layout and improves airflow for thermal management.
- Dual Power Options: VBS01‑EPD provides external field power for field devices and system power for AO channels; VBS01‑FPH offers field power with hot‑swap capability for uninterrupted operation.
- High‑Density Terminal Layout: 2×8 signal terminals accommodate extensive wiring requirements while maintaining organized connections.
- Pluggable Connector System: 16‑pin pluggable connectors ensure quick, secure, and error‑free wiring installation and module replacement.
- Integrated Fuse Protection: Dedicated fuse terminal blocks for field power input safeguard field devices and termination base from overcurrent damage.
- Hot‑Swap Capability: VBS01‑FPH variant supports hot‑swapping of I/O modules without system shutdown, minimizing process downtime.
- Robust Construction: Industrial‑grade build withstands extreme temperatures, vibration, and shock for reliable long‑term operation.
- Easy Maintenance: Modular design and accessible terminals simplify inspection, wiring changes, and component replacement.
- Hazardous Area Suitability: ATEX‑certified for safe deployment in Zone 1/2 hazardous environments with explosive gases.
- System Scalability: Supports seamless system expansion by adding additional termination bases and I/O modules as process requirements grow.
Application Scenarios
- Oil & Gas Industry: Process control systems in refineries, offshore platforms, pipelines, and LNG terminals for monitoring and controlling pressure, temperature, flow, and level signals.
- Chemical & Petrochemical: Distributed control systems in chemical plants, petrochemical facilities, and pharmaceutical manufacturing for precise regulation of reactors, distillation columns, and storage systems.
- Power Generation: Thermal power plants, combined cycle plants, and nuclear power facilities for monitoring steam, water, fuel, and emissions parameters.
- Water & Wastewater Treatment: Municipal water treatment plants, desalination facilities, and wastewater networks for controlling flow, level, and water quality monitoring.
- Metallurgy & Mining: Steel mills, smelters, and mineral processing plants for process variable monitoring and control in high‑temperature and harsh environments.
- Pulp & Paper: Paper mills and pulp processing facilities for regulating steam, chemicals, and raw material flow in production lines.
- Food & Beverage: Food processing plants, breweries, and beverage production facilities for hygienic process control and monitoring.
- Marine & Offshore: Shipboard automation systems and offshore drilling platforms for fluid handling, utility systems, and safety monitoring.
- Hazardous Area Installations: Zone 1/2 classified areas with explosive gas or dust environments in various industrial sectors.
- General Manufacturing: Cement, glass, and other heavy manufacturing industries for process automation and control.
